The rim profile is the configuration or the shape of the inside of the rim along with the width and diameter stamping.
The different profiles are generally marked on the outside of the rim
Outer Spacer Widths - From 'fergerburger' at this XLForum Thread: https://www.xlforum.net/forum/sportster-motorcycle-forum/sportster-motorcycle-era-specific-and-model-specific/ironhead-sportster-motorcycle-talk-1957-1985/157170-axle-spacers-chart?t=1681432
Outer Spacers For 3/4“ Axles | Pic(s) | |||
P/N | Year Model | Description | Width | |
43548-74 | 1974-1977 XLH/XLCH | Wheel (outside) brg stepped spacer | .300” | Pic 1) |
43358-83A | 1985-1999 Sportster | Flat bearing spacer | .380“ | |
43548-73 | 1973 XLH/XLCH | Stepped spacer | .440” | Pic 2) |

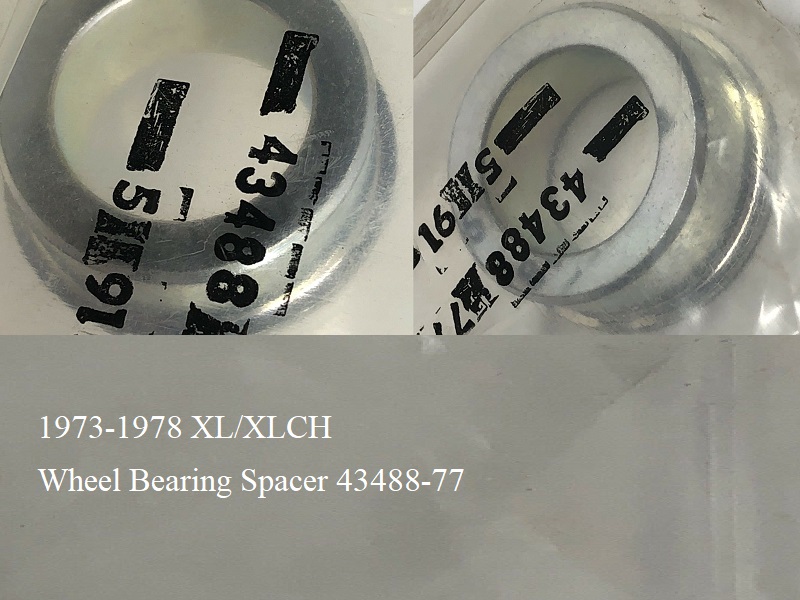

43488-77 | 1973-1978 XL/XLCH | Stepped spacer | .465“ | Pic 3) |
41607-83 | ? | .506” | ||
41594-73 | ? | .653“ | ||

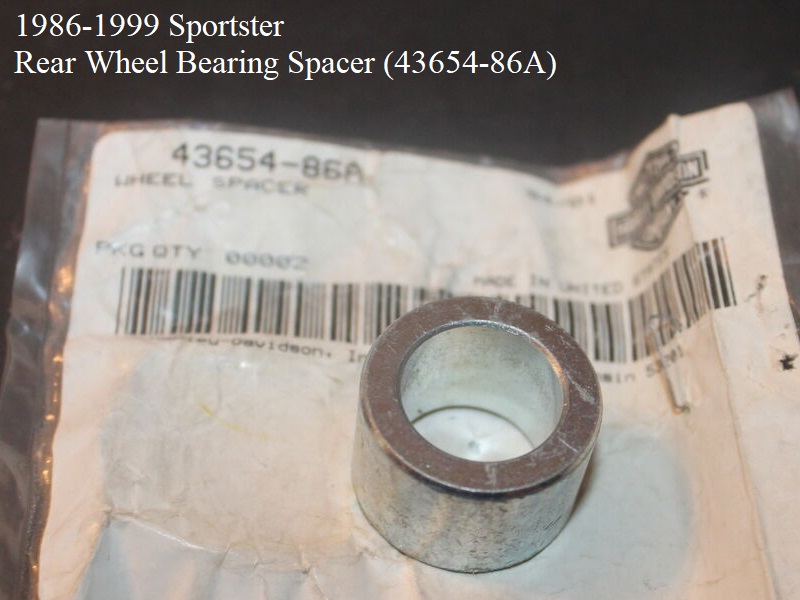

43654-86A | 1988-1999 | Wheel (outside) brg spacer 1986-up replacement (1988) | .750” | Pic 4) |
43617-95 | 1995-1999 Sportster | Flat bearing spacer | .930“ | |
43657-89 | ? | 1.00” | Pic 5) | |
41591-81 | ? | 1.165“ | ||
40915-94 | ? | 1.245” | ||
40910-84A | ? | 1.250“ | ||
43683-97 | ? | 1.340” | ||
43674-95 | ? | 1.420“ |
For 1” Axles | |
Width | P/N |
.470“ | 43654-00 |
.515” | 43617-00 |
.887“ | 40910-00 |
.986” | 43683-00 |
1.880“ | 41595-00 |
Preston Cycle Products - Chrome Axle Spacers6) | |||
HD P/N | ID | Length | PCP# |
41591-81 | 0.710 | 1.265 | 43016 |
40915-94 | 0.720 | 1.253 | 43003 |
43657-89 | 0.725 | 1.030 | 43018 |
43674-95 | 0.725 | 1.412 | 43004 |
43683-97 | 0.730 | 1.350 | 43005 |
41607-83 | 0.735 | 0.510 | 43014 |
43648-86 | 0.735 | 1.370 | 43017 |
40910-00 | 0.740 | 0.900 | 43019 |
43683-00 | 0.740 | 0.990 | 43021 |
41591-90 | 0.740 | 1.435 | 43006 |
41595-86 | 0.745 | 0.123 | 43013 |
47517-58 | 0.745 | 0.380 | 43015 |
41594-73 | 0.745 | 0.655 | 43010 |
41592-79 | 0.745 | 1.210 | 43012 |
43358-83A | 0.750 | 0.370 | 43009 |
43654-00 | 0.750 | 0.470 | 43022 |
43617-00 | 0.750 | 0.520 | 43023 |
43654-86A | 0.750 | 0.750 | 43007 |
41595-73 | 0.750 | 0.830 | 43011 |
43617-95 | 0.750 | 0.930 | 43002 |
40910-84A | 0.750 | 1.255 | 43008 |
41595-00 | 0.750 | 1.980 | 43020 |
43613-00 | 0.755 | 3.040 | 43026* |
43608-00 | 0.755 | 4.810 | 43025* |
43517-00 | 1.000 | 4.810 | 43024* |
* Hub Spacers - Not Chromed |
ColonyMachine.com7) | ||||
HD Equiv# | Axle | OD | ID | Length/Width |
43358-08 | 25mm | 1.470 | 25mm | .317 |
43522-08 | 25mm | 1.480 | 25mm | .648 |

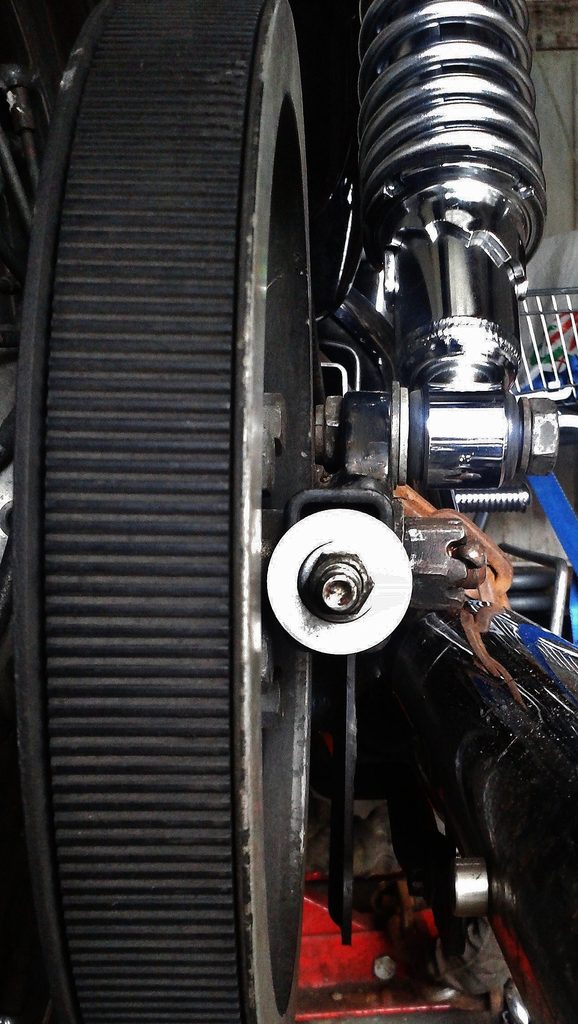

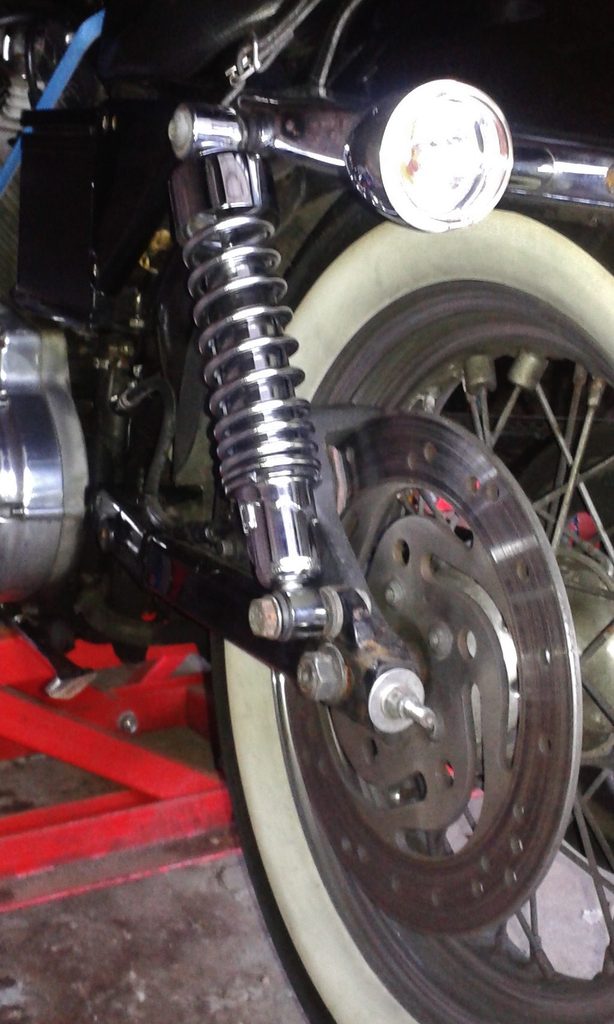

If you break an adjuster end plate while your out riding, here is quick fix that might help get you home. Click on a pic to enlarge:

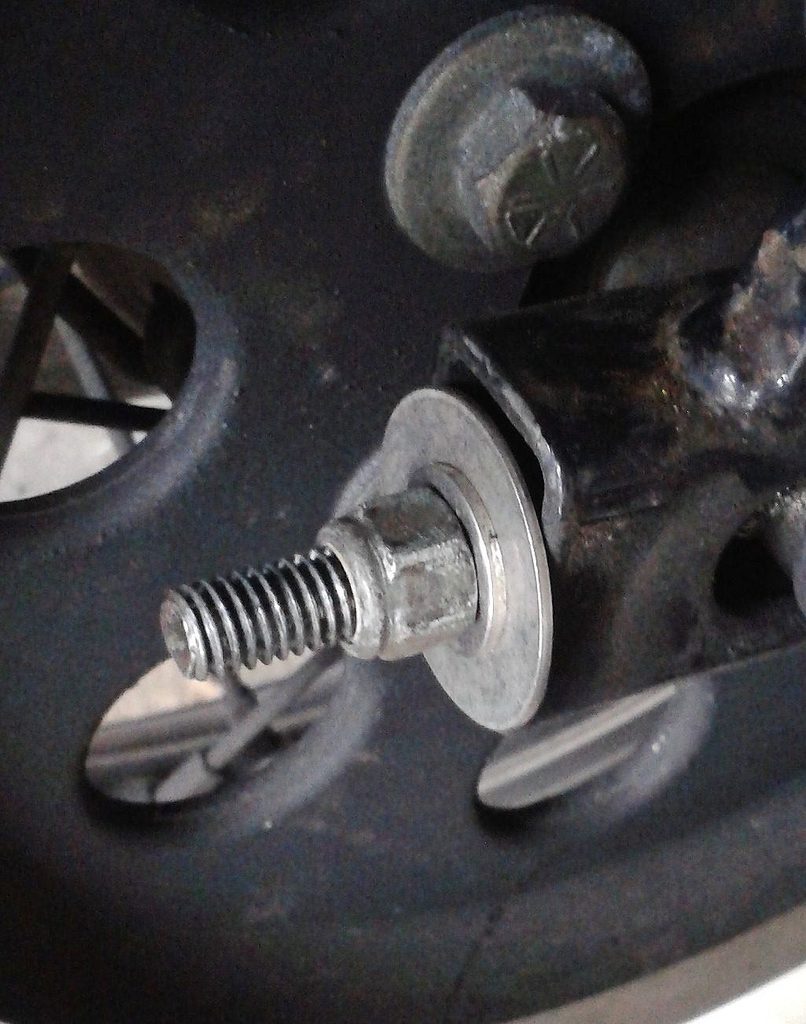

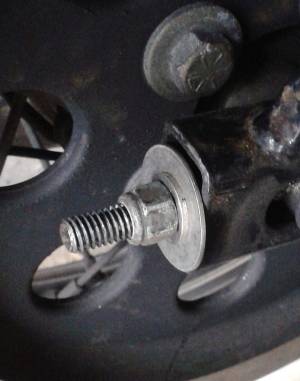

One large fender washer with a smaller one in front to keep the large one from bending. 15) |
