Keihin CV Carb Identification

Serial Number:

  • Labeled on the adjacent side to the accelerator pump linkage

Example 27231-98 translates to

Keihin CV Serial NumberYear of IntroductionNotes
27231 1998 Can be used on same year and / or future multiple models


All H-D CV carburetors have a code on one side, above the float bowl. This code is a two part code: 1)

  • The first four characters is the “Set Mark” for internal HD use.
  • The next letter is the revision code.
  • The last three characters are the date code.

As a 1994 model year running change, Harley-Davidson has changed the configuration of a carburetor float pin pedestal.
One of the pedestals now has an interference fit to hold the float pin more securely in place.
Carburetors with the part number 27038-92 and 27039-92 and the “B” revision code do not have the rounded float (press fit) pedestal for the float pin.
Carburetors with those part numbers have the new pedestal only if they have a “C” or higher revision letter.
All other carburetors with a “B” or higher revision letter have the new pedestal.

Keihin Carbs Used on Evo Sportsters from 1986-2006 by Serial Number

  • All data compiled from HD Sportster Parts Catalogs unless otherwise noted
  • All CV models come equipped with accelerator pump unless noted.
  • The Serial Number on CV carbs is labeled on the adjacent side to the accelerator pump linkage
Keihin non-CV 1986 - 1987
Carburetor
Serial Number
Installed On
All Models
27501-86A (B83H(86-87) - XLH 883 All Models Domestic and California
27502-86B (B83H)(86-87) - XLH 1100 All Models Domestic and California
Keihin CV 1988 - 2006
Carburetor
Serial Number
Installed On
Domestic models
Year - Model
Installed On
California models
Year - Model
Installed On
Export models
Year - Model
27031-95 (95) - HDI 883 Deluxe
(95-97) - HDI 883, 883 Hug
(99-2000) - HDI 883, 883 Hug, 883C
(01) - Aust 883, 883 Hug, 883C
27031-95A (98) - HDI 883, 883 Hug
(02-03) - Aust 883, 883 Hug, 883C, 883R
27076-95 (95-97)- HDI 1200
(96-97) - HDI 1200C, 1200S
(99-01) - HDI 1200, 1200C
(01) - Aust, Eng, Japan 1200, 1200C
27076-95A (02-03) - HDI, Aust, Eng, Japan 1200, 1200C
27465-01 (01) - HDI, Eng, Japan 883, 883 Hug, 883C
27465-01A (02-03) - HDI, Eng, Japan 883, 883 Hug, 883C, 883R
27465-04 (04-06) - HDI 883, 883C
(05-06) - 883L, 883R
27076-95A (98) - HDI 1200, 1200C
27480-97(97) - 1200, 1200C, 1200S
(99-01) - 1200, 1200C
27480-97A(98) - 1200, 1200C
(02-03) - 1200, 1200C
27486-92 (92-Early 93) - 1200
27486-92A (93-94) - 1200
27486-92B (95) - 1200
27487-92(92-94) - 1200
27487-92A(95) - 1200
27488-92 (92-Early 93) - 883
27488-92A (Late 93-94) - 883
27488-92B (95) - 883
27489-92(92-94) - 883 All Models
27489-92A(95) 883 All Models
27490-96(96-97) - 883, 883 Hug
(99-01) - 883, 883 Hug, 883C
27490-96A(98) - 883, 883 Hug
(Late 98) - 883C
(02-03) - 883, 883 Hug, 883C, 883R
27490-04(04-06) - 883, 883C
(05-06) - 883L, 883R
27491-89
No Accel Pump
(89-90) - Swiss 1200
27491-96(96) - 1200, 1200C, 1200S
27492-89
No Accel Pump
89-90) - Swiss 883 All Models
27495-96 (96-97)- 883, 883 Hug
(99-01) - 883, 883 Hug, 883C
27495-96A (98) - 883, 883 Hug
(Late 98) - 883C
(02-03) - 883, 883 Hug, 883C, 883R
27495-04 (04-05) - 883, 883C
(05) - 883L, 883R
27498-96 (96-97) - 1200, 1200C, 1200S
(99-01) - 1200, 1200C
27498-96A (98) - 1200, 1200C
(02-03) - 1200, 1200C
27501-88
No Accel Pump
(88-90) - 883 All Models (89-90) - HDI 883 All Models
27501-89(89-90) - 883 All Models
(90) - 1200
27501-89A(91) - All Models
27502-88
No Accel Pump
(88-90) - 1200 (89-90) - HDI 1200
27502-89(89) - 1200
27503-88
No Accel Pump
(88) - 1200
27503-88A (89-90) - 1200
27503-88B (91) - All Models(91) - Swiss All Models
27503-92 (92) - HDI & Swiss All Models
27503-92A (93-94) - HDI & Swiss - All Models
27503-92B (95)- Swiss All Models
27504-88
No Acell Pump
(88) - 883 All Models
27504-88A (89-90) - 1200
27731-98(99-01) - 1200S
27731-98A)(98) - 1200S
(02-03) - 1200S
27731-04(04-06) - 1200C, 1200R
27732-98 (99-01) - 1200S
27732-98A (98) - 1200S \ (02-03) - 1200S
27732-04 (04-06) - 1200C, 1200R
27733-98 (98) - Swiss 1200S
27734-98 (98-2000) - HDI 1200S
27749-01 (01) - HDI, Aust, Eng, Japan 1200S
27749-01A (02-03) - HDI, Aust, Eng, Japan 1200S
27749-04 (04-06) - HDI 1200C,1200R

Pics of Keihin CV40 Carbs

(Factory Installed) — Click on a picture to enlarge:

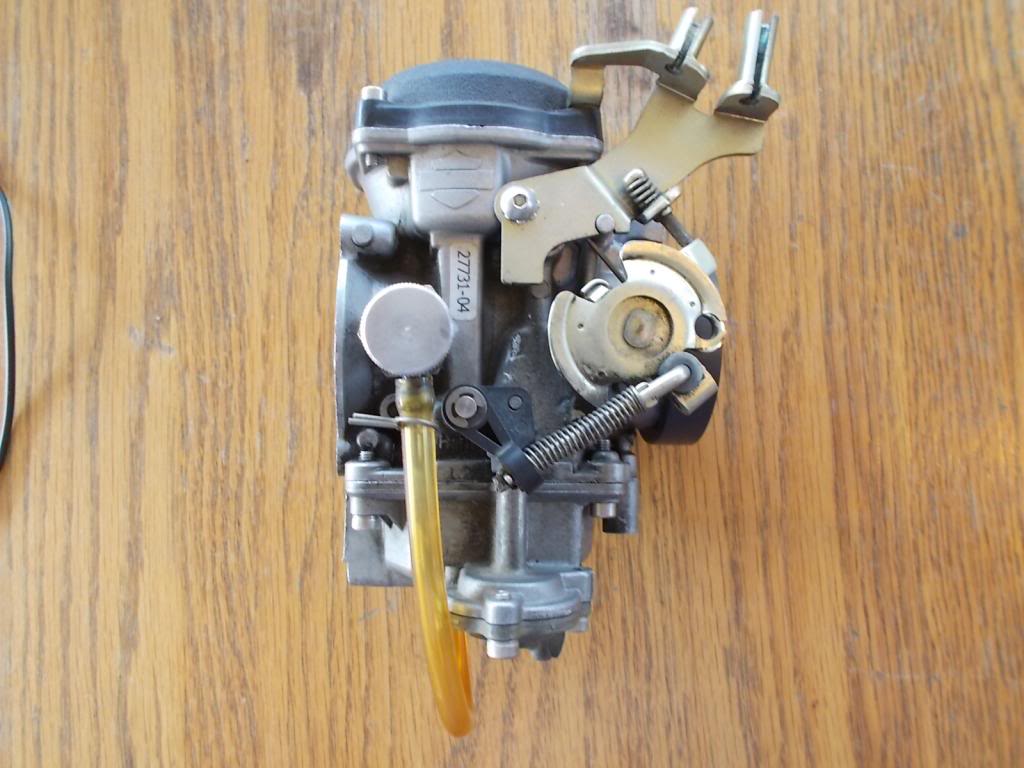

Keihin CV40 #27731-04

Used on 2004-2006 (Domestic models) 1200C, 1200R2)

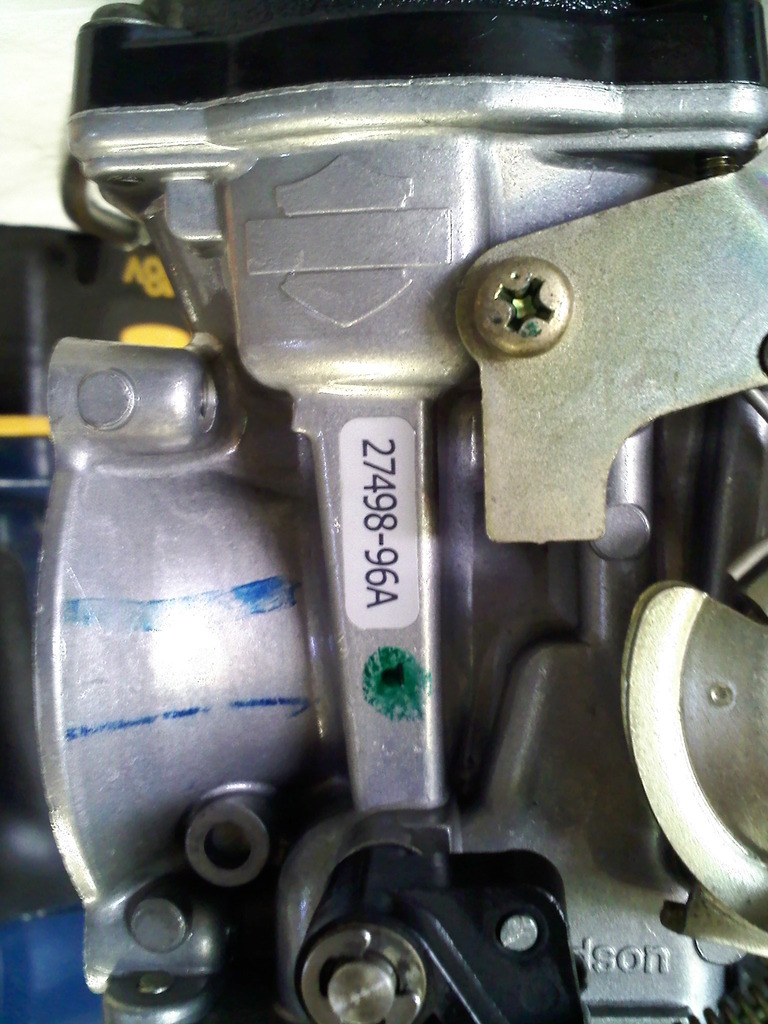

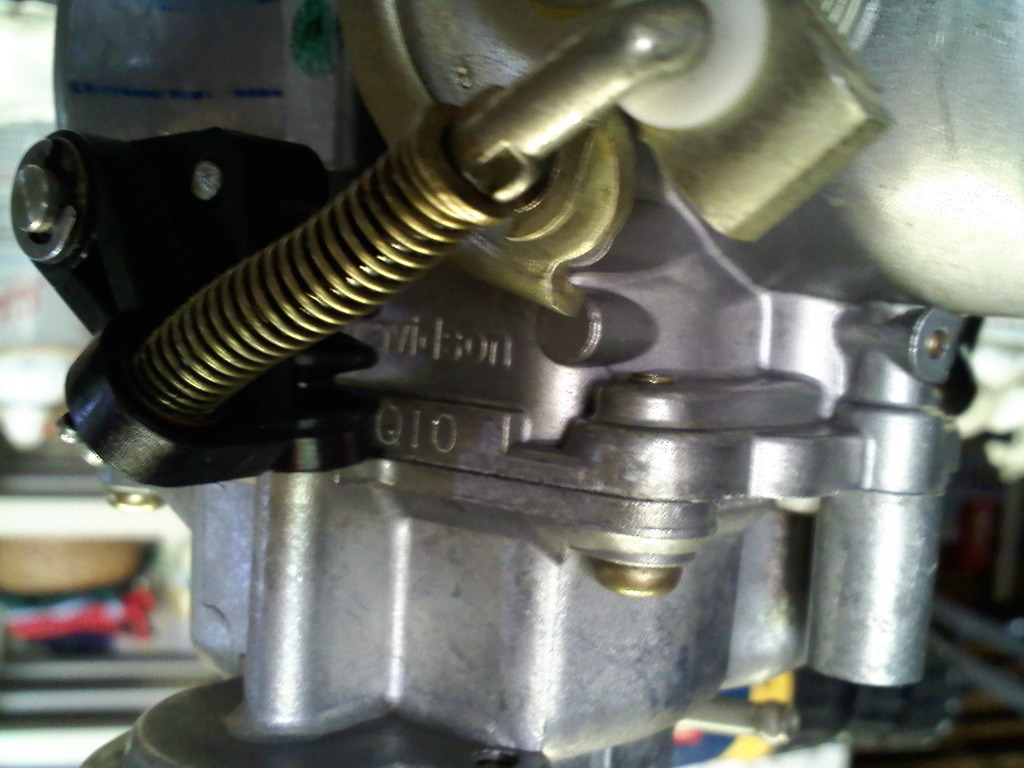

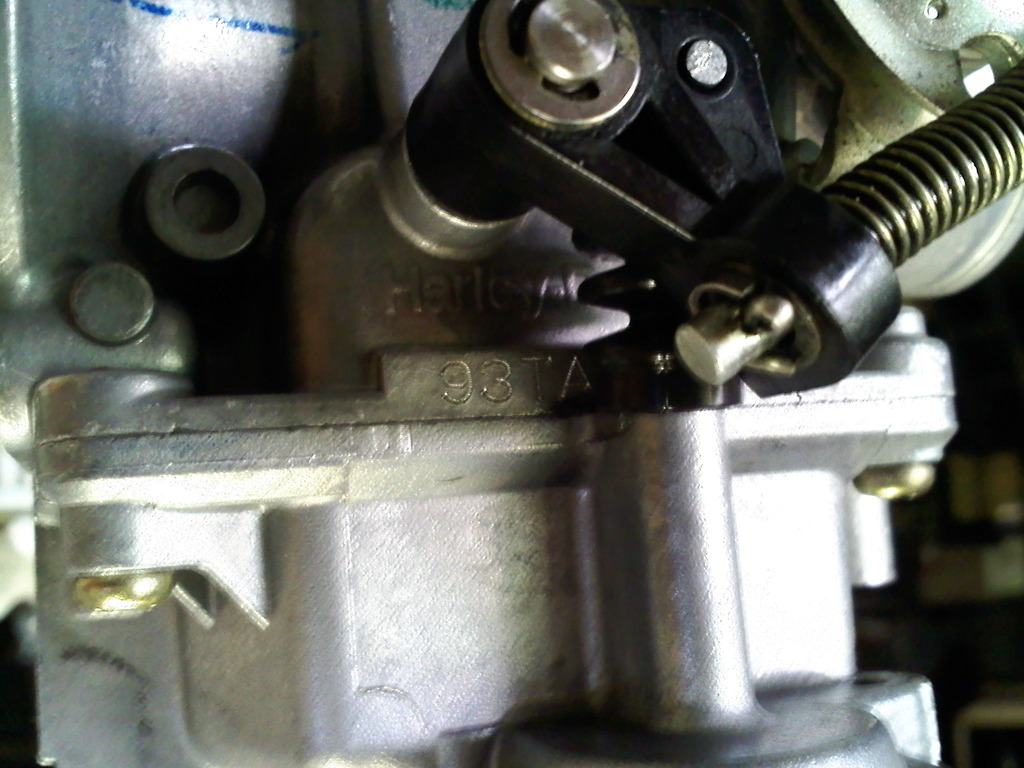

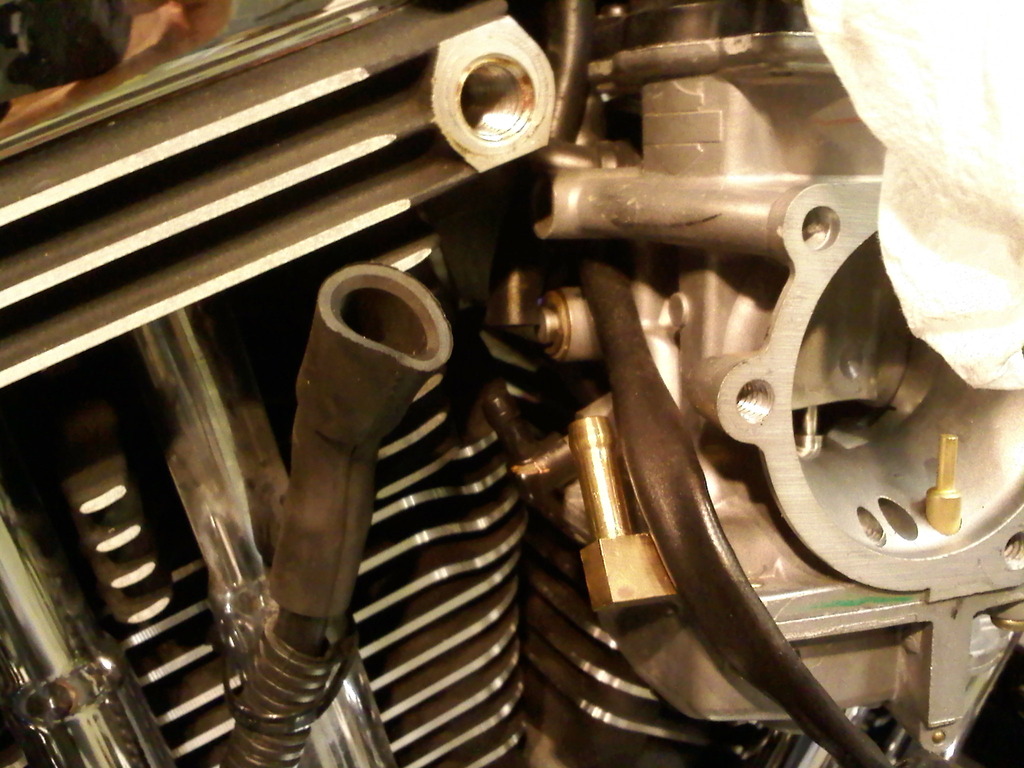

Keihin CV40 #27498-96A

Used on 1998, 2002-2003 (California models) 1200, 1200C 3)

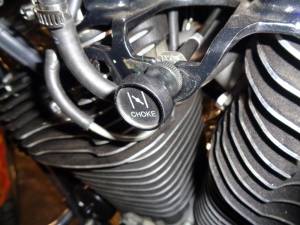

Enrichment Cable

Sub Documents


The CV40 has an Enrichener Circuit - The knob is labeled 'Choke' but that is a misnomer. It is not a choke.
A choke sends less air into the venture when closed thus richening the mix.
An enrichener shoots gas into the venture thus richening the mix.
It may seen more semantic to call them different names but it is important to realize that the two have different functions to the same end.
(to richen the mix for better starting).

4)

The enrichener knob should stay open and remain open when pulled out and close without binding when pushed in.
Pulled out engages the enrichment circuit and adds extra fuel into the venture.
Pushed in closes off the enrichment circuit stopping extra fuel from entering. Read more about it's function here.

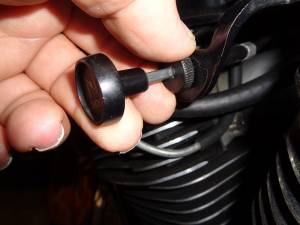

To adjust the knob, gently pull it out to the full length and let go. Do not pull hard or at an angle or it could break the knob.
Tension from the plastic nut behind the knob keeps it from pulling back in. If it tries to pull back in on it's own, the plastic nut isn't tight enough.
You can tighten it with one hand by hold the knob all the way out with your finger and using you thumb and next finger to tighten.
There is no need to take it off the bracket for this. You just want to create enough resistance to keep the knob from pulling in on it's own.
Caution, the plastic nut fits onto plastic threads and should not be tightened too much or the threads will strip.

5) 6) 7)

If the plastic nut has stripped out, you can cut a piece of rubber tubing, slit it long ways and stick it between the nut and the knob when needed. 8)
Then when you remove it, slip it on the throttle cable until the next cold startup.
