EVO: Wheels, Brakes & Tires

(Be sure to also check the REF section)


Axles & Bearing Parts


Bearing Concepts

Front Wheel Sealed Bearing Example

This is not a step-by-step install instruction. It is rather an explanation of the principles involved in placement of the bearings & spacers plus the overall concept of alignment.

Remember, the fork legs & axle produce an assembly in which all the spacers & the inner races of both bearings are clamped together but none of those parts rotate or move during operation. The bearing outer races are also fixed parts, pressed into the wheel hub. The roller or ball bearings between the inner & outer races of the wheel bearing are the real moving parts. Be sure you service these bearings well as the proper operation of each wheel is critical to your safety while riding.

Here is a general diagram of the front wheel in the forks with various parts identified. This illustration uses sealed-bearings but the operational concepts apply to use of Timken bearings (with shims) as well.

1)

When installing sealed bearings, install the brake-side first so that the bearing is fully seated in the hub. This helps to keep the brake rotor alignment in conjunction with the external bearing spacer. Then place the internal hub spacer into the wheel and install the other bearing. Be sure that the internal hub bearing spacer is a few thousandth longer than the spacing of the hub bearing seats. This guarantees that the hub spacer will be in full contact with the inner race of the 2nd bearing and the bearing will not be laterally loaded (under tension). The outer race of the 2nd bearing should NOT fully seat against the hub cavity - You must stop the bearing insertion when the inner race of the 2nd bearing comes in contact with the hub spacer.

Notice in the diagram that there is a small GAP between the outer race of the 2nd bearing (right-side of forks) and the seat of the hub cavity. This is important to maintain as described above to prevent laterally loading the bearing.

When re-installing the wheel to the forks, the axle will slip completely thru the right-side fork. It will clamp all the parts - the external spacer, the right-side bearing inner race, the hub spacer, the left-side bearing inner race and the second external spacer - to the left-side fork. At this point, when you tighten the nut on the axle, the wheel assembly is only clamped to the left-side fork. The right-side fork is then clamped to the wheel assembly by the Pinch Bolt which now allows both forks to support the front wheel assembly. This process allows the forks to rotate individually and align themselves to the axle.

If you are changing from a stock wheel, be sure your external and internal spacers are properly sized. The inner spacer must be a few thousandth longer than the measured distance between the two bearing cavities of the hub. The external spacers need to be the correct length to properly align the brake rotor with the brake caliper and also to center the wheel between the forks.

Take Note:

  • Custom bearings can be found to match a wheel to an axle size (and there are OEM kits for 2000-later wheels) but the original bearings varied in width - Timken, 4-Seal Single-Row (4SSR) Sealed Bearing and 2-Seal Single-Row (2SSR) Bearing. This also means that internal & external spacer lengths varied.
    • The difference between two 15mm bearings & two 21mm bearings is 12mm = .472“

  • If placing a 4SSR bearing (21mm wide) in a wheel designed for 2SSR bearings (15mm hub cavity), you will have 6mm of the bearing outside the hub face (meaning the centerline of the bearing is 3mm more outward).2) There is no collected data on whether this configuration represents a problem, but it would seem that, when properly spacered and clamped on the axle, this variation should be functional. Safety is the responsibility of each rider.


2000-later Sealed Wheel Bearings - Variations

Beginning in 2000, the Moco used sealed wheel bearings on all Sportster models (previous years used Timken Bearings). There were two
basic styles of sealed bearings - 4-Seal Single-Row Ball Bearings (4SSR) and 2-Seal Single Row Ball Bearings (2SSR).

Front Rear Identification
2000-2007 4SSR – 3/4” Axle 2000-2004 4SSR – 3/4“ Axle 4SSR Bearings are 21mm wide
2005-2007 4SSR – 1” Axle
2008-later 2SSR - 25mm Axle 2008-later 2SSR - 25mm Axle 2SSR Bearings are 15mm wide
3)

These images, supplied by Multihdrdr of the XLForum.net, illustrate the make-up of the 4SSR-type bearings:
4)

Multihdrdr goes on to say: “Besides being good quality bearings, I believe the seal arrangement contributes greatly to their longevity. The outer seal (on each side) is fixed to the stationary inner race and seals against the rotating outer race whereas the inner seal is fixed to the outer race and seals against the inner race with some grease between the seals. This creates a tough path for water and grit to arrive at the balls and races.”

The wheels that were supplied during these various years had hub bearing cavities to match the bearings - a 21mm deep hub cavity from 2000-2007 for 4SSR bearings and a 15mm deep hub cavity from 2008-onward for the 2SSR bearings.

Check out the section below about 'Conversion Bearings & Spacers' to see that all 2000-later wheels can accomodate bearings for 3/4“, 1” or 25mm axles.

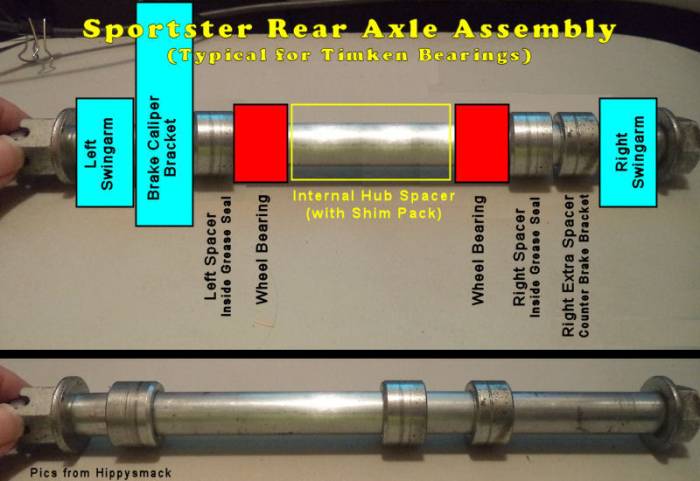

End Play on Tapered Roller Bearings (AKA Timken Bearings)

 Illustration created by IXL2Relax at the XLForum Timken Tapered Bearings are a 2-piece angular roller bearing. This type wheel bearing was used up thru 1999, after which, unitized sealed bearings replaced them.

The first part is a simple outer race while the second part is not only the inner race but includes the roller bearings in a cage. When installed, in addition to using the two bearing sets, there is a hub spacer, a spacer washer and, possibly, SHIM washers. Because there must be a precise space between the inner & outer races of each bearing set, shims are used in setting that precise distance.

The outer races are simply installed fully into the hub cavity on each side of the wheel. Then, on the brake rotor side, the selected shims are installed, followed by the spacer washer, then the inner bearing race (with rollers) and the oil seal. On the opposite side of the wheel, you must insert the hub spacer (to fully contact shim washers), then the 2nd inner bearing race (with rollers) followed by the oil seal. Then the proper wheel spacers are inserted through the center of the oil seals to make contact with the inner races on each side.

When assembled, between the front forks (or rear swingarm), the axle clamps the assembly together. The installed shims will create a gap between the inner & outer races to create the End Play (the ability of the wheel to move horizontally on the axle). You must check the End Play after clamping the axle components to be sure you are within the specs (typically, .002“ to .006” combined total for End Play of the assembly). Check your factory manual for the recommended procedure.

The 1991-earlier stock models used a selection of different length center hub spacers to adjust End Play of the Timken bearings but did not use additional SHIMs. See the Center Hub Spacers listed below.


Additional Reading

Front Axles & Bearings

(From HD Parts Catalogs and online fiche sources 5) unless noted otherwise)


Front Axles

  • The same axle is used for dual disc / single disc wheels as well as cast / spoked wheels within the same wheel year models (not bike year models).
Cast or Laced Wheels 6) 7) 8) 9) 10) 11) 12) 13) 14) 15) 16) 17) 18)
Ref #Part #SizeKit Includes
A0143883-84
1984-1987
3/4“Axle Only. Also required are (6653) axle washer
(7022) lock washer
(7813) nut.
Additional
Information
A0243895-87
1988-1996
3/4” Steel
Threads: 1/2“ x 20
Axle Only. Also required are (6590HW) axle washer
(7068) lock washer
(7845) Standard nut w / 3/4” socket head.
Additional
Information
Head Dia: 0.869”, Head Length: 2.720“,
Usable shaft Length: 4.940” Shaft Dia: 0.7485“ @ bearing surfaces, 0.7435” @ center hub spacer.
Shoulder Dia: 0.667“, Length: 1.300”, Overall length: 9.850“, Weight (axle only): 1.180 lbs.
A0343895-87A
1997
3/4”Axle Only. Also required are (6590HW) axle washer
(7068) lock washer
(7845) nut.
Additional
Information
A0443895-87B
1998-1999
All wheels
3/4“ Stainless Steel
Threads: 1/2” x 20
Axle Only. Also required are (6590HW) axle washer
(7068) lock washer
(7956) nut. (Flange nut 11/16“ socket head) (Standard nut 3/4” socket head)
Additional
Information
Head Dia: 0.869“, Head Length: 2.715”,
Usable shaft Length: 4.975“ Shaft Dia: 0.7485” @ bearing surfaces, 0.7435“ @ center hub spacer.
Shoulder Dia: 0.667”, Length: 1.300“, Overall length: 9.850”, Weight (axle only): 1.175 lbs.
A0543895-00
2000-2007
All wheels
3/4“ Stainless Steel
Threads: 1/2” x 20
Axle Only. Also required are (6590HW) axle washer
(7068) lock washer
(7956) nut. (Flange nut 11/16“ socket head) (Standard nut 3/4” socket head)
Additional
Information
Same dims as A04 except Head Length
Head Dia: 0.869“, Head Length: 2.546”,
Usable shaft Length: 5.125“, Shaft Dia: 0.7485”, @ bearing surfaces, 0.7435“ @ center hub spacer.
Shoulder: Dia: 0.667”, Length: 1.300“, Overall length: 9.850”, Weight (axle only): 1.180 lbs.
A0643895-08
2008-2013
All wheels except:
16“ & 18” cast
3, 5, 9 spoke,
16“ Laced
25 mm2008 Axle Only. Also required are (6594) axle washer
(7068) lock washer
(7813A) 5/8”-18 x 9/16“ x 15/16” head - nut 19).
2009 and up Axle Only. Also required are (6594) axle washer
(7813A) 5/8“-18 x 9/16” x 15/16“ head - nut 20)
Additional
Information
A0741628-08
2009-2016
All
16” & 18“ cast 3, 5, 9 spoke,
16” laced only
25mmAxle Only. Also required are (6594) axle washer
(7813A) 5/8“-18 x 9/16” x 15/16“ head - nut 21)
Additional
Information
A0843000001
2014-2016
All wheels except:
16” & 18“ cast
5, 9 spoke
16” laced
25mmAxle Only. Also required are (6594) axle washer
(7813A) 5/8“-18 x 9/16” x 15/16“ head - nut 22)
Additional
Information

Pics (Front Axles)

Click on a pic to enlarge:

Used 1988-1996 Front Steel Axle 43895-87 23)
Used 1998-1999 3/4” Front Stainless Steel Axle 43895-87B 24)
Used 2000-2007 3/4“ Front Stainless Steel Axle 43895-00 25)
Front axle comparison: 98-99 (back) vs 00-07 (front) 26)
Pics skewed / Same overall length w/ longer head



Front Axle Bearings

Factory Information - Front, Cast or Laced Rear Wheels
B01HD Part # 1986-1999 Model Year Front Bearing Info
9052 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
3/4” Timken 1.781“ .655” Solid - 5/8-18UNF - 15/16Nut&Head
Hub Spacer = ID=????“ … OD=????” … Length=????“
Hub depth for bearing (expected to be .820) accommodates .400 width Oil Seal
*=Specs taken from Timken LM11910 / LM11949 Bearing Components
47519-83A (2)Wheel Bearing Oil Seal - Fits in hub after bearing installed
B02HD Part # 2000-2007 Model Year Front Bearing Info
9267 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
3/4” Sealed 4SSR 52mm 21mm Solid - 5/8-18UNF - 15/16Nut&Head
Hub Spacer = ID=????“ … OD=????” … Length=????“
Length may be same as 2005-07
B04HD Part # 2008-2011 Model Year Front Bearing Info
9276 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 28mm Nut&Head
(1-1/8Nut&Head)
Hub Spacer = ID=? … OD= … Length=
B05HD Part # 2012-2016 Model Year Front Bearing Info
9276A (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 36mmNut . 28mmHead (1-7/16Nut.1-1/8Head)
Hub Spacer = ID=26mm (1.0??”) … OD=32mm (1.25“) … Length=133mm (5.250”)
B06HD Part # 2014-2016 Model Year w/ ABS Front Bearing Info
9276A (1)
9252 (1)
Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 36mmNut . 28mmHead (1-7/16Nut.1-1/8Head)
Hub Spacer = ID=26mm (1.0??“) … OD=32mm (1.25”) … Length=133mm (5.250“)
9252 bearing has an ABS encoder
4SSR=21mm Wide with 2 Seals/side = 4 total Seals – 2SSR=Single-Row Ball Bearing - 1 Seal/side

*Ref: https://cad.timken.com/item/tapered-roller-bearings-ts-tapered-single-/tapered-roller-bearings-ts-tapered-single-imperi-2/item-27295

27)



Front Hub Spacers

H01ALL 19” CAST 9 SPOKE OR LACED FRONT WHEEL - Uses 2, (9052) 2-Piece 3/4“ Timken Tapered Roller Bearings
1979-1991HD PART #CENTER HUB BEARING SPACER (no flange)
43623-78Length - 2.564” (Violet) 28) 29)
43624-78Length - 2.550“ (Pink)30) 31)
43625-78Length - 2.536” (Gold) 32) 33)
H02ALL 19“ CAST 9, 13 SPOKE OR 19”, 21“ LACED FRONT WHEEL - Uses 2, (9052) 2-Piece 3/4” Timken Tapered Roller Bearings
1992-1999HD Part #CENTER HUB BEARING SPACER (no flange)
43613-92Length - 2.424“ 34)
HD Part #CENTER SPACER SHIMS for Setting 3/4” Timken Bearing End Play
43290-820.032“ thick35)
43291-820.016“ thick36)
43292-820.008“ thick37)
43293-820.004“ thick38)
43294-820.002“ thick39)
HD Part #SPACER SHOULDER WASHER
43650-82ID=3/4“ Thickness=.095” LgOD=1-3/8“ SmOD=1” 40) 41)
H03ALL 19“ CAST 13 SPOKE, OR 19”, 21“ LACED FRONT WHEEL - Uses 2, (9267) 1-Piece 3/4” Sealed Roller Bearings
2000-2007HD Part #CENTER HUB BEARING SPACER (no flange)
43613-00ID=3/4“ Length=3.040” 42) 43) 44) 45) 46) 47) 48)
H04
H05ALL 19“ CAST 13 OR 9 SPOKE, 19” OR 21“ LACED OR PROFILE LACED FRONT WHEEL - Uses 2, (9276) '08-'11 / (9276A) '12-'13 25 mm Ball Bearings
Uses 1 right (9276A) '14 & up and either 1- left (9276A) non ABS or 1- left (9252) w/ ABS 25 mm Ball Bearings
2008-2016HD Part #CENTER HUB BEARING SPACER (no flange)
43906-08ID=25mm Length=2.980” 49) 50) 51) 52) 53) 54) 55) 56) 57) 58) Will not work w / cast 3 / 5 spoke or 16“ laced wheels
H0618” CAST 3 SPOKE FRONT WHEEL - Uses 2, (9276) '09-'11 / (9276A) '12-'13 25 mm Ball Bearings
2009-2013HD Part #CENTER HUB BEARING SPACER (no flange)
41748-08ID=25mm Length=3.858 59) 60) 61) 62)63)64)
H07ALL 16“ OR 18” CAST 5 SPOKE FRONT WHEEL - Uses 2, (9276) '11 / (9276A) '12-'13 25 mm Ball Bearings
Uses 1 right (9276A) '14 & up and either 1- left (9276A) non ABS or 1- left (9252) w/ ABS 25 mm Ball Bearings
2011-2016HD Part #CENTER HUB BEARING SPACER (no flange)
11888ID=25mm Length=4.104“ 65) 66) 67) 68) 69) 70) 71)
H08ALL 16” LACED FRONT WHEEL - Uses 2, (9276) '10-'11 / (9276A) '12-'13 25 mm Ball Bearings
Uses 1 right (9276A) '14 & up and either 1- left (9276A) non ABS or 1- left (9252) w/ ABS 25 mm Ball Bearings
2010-2016HD Part #CENTER HUB BEARING SPACER (no flange)
11888ID=25mm Length=4.104“ 72) 73) 74) 75) 76) 77) 78) 79)
H0916” CAST 9 SPOKE FRONT WHEEL Uses 1 right (9276A) '16 & up and either 1- left (9276A) non ABS or 1- left (9252) w/ ABS 25 mm Ball Bearings
2016HD Part #CENTER HUB BEARING SPACER (no flange)
11888ID=25mm Length=4.104“ 80) 81)

82) 83)



Front Outside Bearing Spacers

Against Left BearingAgainst Right BearingYear Model Info
BS01Speedometer Pickup 67127-84A
ID: 0.753” steel
OD: 1.125“
Width: 0.930” nominal
43358-83A steel
ID: 0.752“
OD: 1.125”
Width: 0.380“
1986-1994 Cast or Laced Front Wheel
BS0243617-95 steel
ID: 0.753”
OD: 1.125“
Width: 0.930”
43358-83A steel
ID: 0.752“
OD: 1.125”
Width: 0.380“
1995-1999 19” Cast 13 Spoke or 19“ / 21” Laced Front Wheel
BS0343617-00A alum.
ID: 0.762“
OD: 1.125”
Width: 0.520“
43358-00 alum. w/ 3 'V' notches
ID: 0.762”
OD: 1.125“
Width: 0.140”
2000-2007 19“ Cast 13 Spoke or 19” / 21“ Laced or Profile Laced Front Wheel

Sizes based on this XLForum Thread
BS04
BS0543522-0843358-082008-2013 19” Cast 13 Spoke or 19“ / 21” Laced or Profile Laced Front Wheel
BS0611804118042009-2013 18“ Cast 3 Spoke Front Wheel
2011 18” Cast 5 Spoke Front Wheel
BS0741242-08 (non ABS)43358-082014-2016 19“ Cast 9 / 13 Spoke or 21” Laced Front Wheel
BS0841100024 (with ABS)
Sensor Ring
43358-082014-2016 19“ Cast 9 / 13 Spoke or 21” Laced Front Wheel
BS0941242-08 (non ABS)118042012-2016 18“ Cast 5 spoke
2012-2016 16” Cast 5 spoke
2016 16“ 9 spoke
2010-2016 16” Laced Front Wheel
BS1041100024 (with ABS)
Sensor Ring
118042014-2016 18“ Cast 5 spoke
2014-2016 16” Cast 5 spoke
2016 16“ 9 spoke
2014-2016 16” Laced Front Wheel
2014 and up. Sensor Ring spacer (replaces 41242-08) is built into the ABS sensor wire
See the REF section for some spacer widths: HERE
Aftermarket spacers are available in various sizes - such as here: http://vulcanworks.net/Axle-Spacers-orderby0-p-1-c-3.html
If you purchase/make alternative parts, be sure you know what you are doing - Your life may depend on it!

Pics (Front OBS)

(L) 43617-95 - (R) 43358-83A 84) 1995-1999 External Front Wheel Spacers



Rear Axles & Bearings

(From HD Parts Catalogs and online fiche sources 85) unless noted otherwise)


Rear Axles

Cast or Laced Wheels 86) 87) 88) 89) 90) 91) 92) 93) 94) 95) 96) 97) 98) 99) 100) 101) 102) 103) 104) 105) 106) 107) 108) 109) 110)
Ref #Part #Axle SizeKit Includes
A2141563-77
1979-1988
All wheels
3/4“ diaAxle Only. Also required are (6653) axle washer,
(7022) lock washer & (7986) nut
Additional Information
A2241563-77A
1989-2003
All Wheels
3/4” dia steel (0.7385“)
15/16” hex head
Threads: 5/8“x18
(5756) axle spacer washer,
(7987) castle nut w/ 15/16” hex head
(511) cotter pin
Additional InformationUsable shaft Length: 10.185”, Overall Bolt Length: 11.425”, Weight (axle only): 1.490 lbs.
A2341110-89
2004
All Wheels
3/4“ dia (0.7385”)(5756) axle spacer washer,
(7987) castle nut w / 3/4“ hex head
(508) cotter clip
Additional Information
A2441176-05
2005-2007
All Wheels
1” dia steel (0.9975“)
1-1/8” (28mm) Hex Head
Threads: 3/4“x16
(40582-05) axle spacer washer,
(8039) flange nut w/ 1-1/8” (28mm) hex head
(41296-05) retaining ring
Additional InformationUsable shaft length: 11.120“, Overall Bolt Length: 12.350”, Weight (axle only): 2.830 lbs.
A2541176-08
2008-2016
All except cast 3 spoke
25mm dia steel (0.982“)
1-1/8” (28mm) Hex Head 111) 112)
Threads: M24x ? (O.D.: 0.936“)
(6551) axle washer,
(8190) flange nut w/ 1-1/4” (36mm) hex head 113)
(41229-08) retaining ring
Additional InformationUsable shaft length: 11.120“, Overall Bolt Length: 12.512”, Weight (axle only): 1.685 lbs.
Hollow center with stepped hole, 0.630“, right side thru to left beginning of threads,
then stepped to .0530” under threads to the end of axle
A2641627-08
2009-2013
Cast 3 spoke only
25mm dia steel (0.982“)
(1-1/8”) (28mm) socket 114) 115)
(6551) axle washer,
(8190) flange nut w/ 1-1/4“ (36mm) hex head 116)
(41229-08) retaining ring
Additional Information

Pics (Rear Axles)

Used 1989-2003 3/4” Rear Steel Axle 41563-77A 117)
Used 2005-2007 1“ Rear Steel Axle 41176-05 118)
Used 2008-2017 25mm Rear Axle 41176-08 119)



Rear Axle Bearings

  • Custom rear bearings can be found to match a wheel to an axle size but the original bearings varied in width (Timken, Double-Sealed Bearing, Single-Row Bearing) - This also means that spacer lengths varied.
    • Note: Difference between two 15mm bearings & two 21mm bearings is 12mm = .472”
  • Don't forget the Swingarm slots & Axle Adjusters need to match the axle diameter. Axle Adjusters changed from '04-earlier (centered) to '05-later (flush to inside)
  • NOTE: If placing a 21mm width bearing in a wheel designed for bearings of 15mm width, you will have 6mm of the bearing outside the hub face (meaning the centerline of the bearing is 3mm more outward). There is no collected data on whether this configuration represents a problem, but it would seem that, when properly spacered and clamped on the axle, this variation should be functional. Safety is the responsibility of each rider.
Factory Information - Rear, Cast or Laced Rear Wheels
B21HD Part # 1986-1999 Model Year Rear Bearing Info
9052 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
3/4“ Timken 1.781” .655“ Solid - 5/8-18UNF - 15/16Nut&Head
Hub Spacer = ID=????” … OD=????“ … Length=????”
Hub depth for bearing (expected to be .820) accommodates .400 width Oil Seal
*=Specs taken from Timken LM11910 / LM11949 Bearing Components
47519-83A (2)Wheel Bearing Oil Seal - Fits in hub after bearing installed
B22HD Part # 2000-2004 Model Year Rear Bearing Info
9267 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
3/4“ Sealed 4SSR 52mm 21mm Solid - 5/8-18UNF - 15/16Nut&Head
Hub Spacer = ID=????” … OD=????“ … Length=????”
Length may be same as 2005-07
B23HD Part # 2005-2007 Model Year Rear Bearing Info
9247 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
1“ Sealed 4SSR 52mm 21mm Solid - 3/4-16UNF - 1-1/8Nut&Head
Hub Spacer = ID=1.004” … OD=1.25“ … Length=4.812”
B24HD Part # 2008-2011 Model Year Rear Bearing Info
9276 (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 28mm Nut&Head
(1-1/8Nut&Head)
Hub Spacer = ID=? … OD= … Length=
B25HD Part # 2012-2016 Model Year Rear Bearing Info (without ABS)
9276A (2)Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 36mmNut . 28mmHead (1-7/16Nut.1-1/8Head)
Hub Spacer = ID=26mm (1.0??“) … OD=32mm (1.25”) … Length=133mm (5.250“)
B26HD Part # 2014-2016 Model Year w/ ABS Rear Bearing Info
9276A (1)
9252 (1)
Bearing ID/Type OD* Width* AxleType/Threads/WrenchSize
25mm Sealed 2SSR 52mm 15mm Hollow - 24x2mm - 36mmNut . 28mmHead (1-7/16Nut.1-1/8Head)
Hub Spacer = ID=26mm (1.0??”) … OD=32mm (1.25“) … Length=133mm (5.250”)
9252 bearing has an ABS encoder
4SSR=21mm Wide with 2 Seals/side = 4 total Seals – 2SSR=Single-Row Ball Bearing - 1 Seal/side

*Ref: https://cad.timken.com/item/tapered-roller-bearings-ts-tapered-single-/tapered-roller-bearings-ts-tapered-single-imperi-2/item-27295

120)



Rear Hub Spacers

H2116“ CAST 9 SPOKE REAR FRONT WHEEL -
Uses 2, (9052) 2-Piece 3/4” Timken Tapered Roller Bearings
1986-1991
Chain Drive
HD PART #CENTER HUB BEARING SPACER (no flange)
43604-78Length - 4.420“ (orange) 121) 122)
43605-78Length - 4.434” (yellow) 123) 124)
43606-78Length - 4.448“ (white) 125) 126)
H2216” LACED REAR WHEEL -
Uses 2, (9052) 2-Piece 3/4“ Timken Tapered Roller Bearings
1986-1991
Chain Drive
HD PART #CENTER HUB BEARING SPACER (with flange)
43601-78ALength - 4.420” (orange) 127) 128)
43602-78ALength - 4.434“ (yellow) 129) 130)
43603-78ALength - 4.448” (white) 131) 132)
H2316“ CAST 9, 13 SPOKE REAR WHEEL -
Uses 2, (9052) 2-Piece 3/4” Timken Tapered Roller Bearings
1991-1999
Belt Drive
HD Part #CENTER HUB BEARING SPACER (no flange)
43608-82 133)Length 4.308“
HD Part #CENTER SPACER SHIMS for Setting 3/4” Timken Bearing End Play
43290-820.032“ thick 134) Tolerance 0.0300-0.0330” (0.76 mm-0.84 mm)
43291-820.016“ thick 135) Tolerance 0.0150-0.0170” (0.38 mm-0.43 mm)
43292-820.008“ thick 136) Tolerance 0.0075-0.0085” (0.190 mm-0.216mm)
43293-820.004“ thick 137) Tolerance 0.0035-0.0045” (0.089 mm-0.114 mm)
43294-820.002“ thick 138) Tolerance 0.0015-0.0025” (0.038 mm-0.064) mm 139)
HD Part #SPACER SHOULDER WASHER
43650-82ID=3/4“ Thickness=.095” LgOD=1-3/8“ SmOD=1” 140) 141)
When the bearings are installed, the bearing End Play (meaning the play between the outer race & the inner race/bearings)
must be set as .002“ to .006” for overall assembly for proper operation & safety. Shims are used to create this End Play correction.
H2416“ LACED REAR WHEEL -
Uses 2, (9052) 2-Piece 3/4” Timken Tapered Roller Bearings
1991-1999
Belt Drive
HD Part #CENTER HUB BEARING SPACER (with flange)
43668-82 142)Length ??
HD Part #CENTER SPACER SHIMS for Setting 3/4“ Timken Bearing End Play
43290-820.032” thick 143) Tolerance 0.0300-0.0330“ (0.76 mm-0.84 mm)
43291-820.016” thick 144) Tolerance 0.0150-0.0170“ (0.38 mm-0.43 mm)
43292-820.008” thick 145) Tolerance 0.0075-0.0085“ (0.190 mm-0.216mm)
43293-820.004” thick 146) Tolerance 0.0035-0.0045“ (0.089 mm-0.114 mm)
43294-820.002” thick 147) Tolerance 0.0015-0.0025“ (0.038 mm-0.064) mm 148)
HD Part #SPACER SHOULDER WASHER
43650-82ID=3/4” Thickness=.095“ LgOD=1-3/8” SmOD=1“ 149) 150)
When the bearings are installed, the bearing End Play (meaning the play between the outer race & the inner race/bearings)
must be set as .002” to .006“ for overall assembly for proper operation & safety. Shims are used to create this End Play correction.
H2516” CAST SOLID / 13 SPOKE or 16“ LACED REAR WHEEL
Uses 2, (9267) 1-Piece Sealed Roller Bearings
2000-2004
Belt Drive
HD Part #CENTER HUB BEARING SPACER (no flange)
43608-00ID=3/4” Length=4.810 151) 152) 153) 154) 155) 156)
H2616“ CAST SOLID / 13 SPOKE or 16” LACED REAR WHEEL
Uses 2, (9247) 1-Piece Sealed Roller Bearings
2005-2007
Belt Drive
HD Part #CENTER HUB BEARING SPACER (no flange)
43517-00ID=1“ Length=4.810” 157) 158) 159) 160)
H27Includes 16“ CAST SOLID / 13,9 SPOKE or 16” LACED / PROFILE LACED or 16“, 17“ CAST 5 SPOKE REAR WHEEL
Uses 2, (9276) '08-'11 25 mm Ball Bearings.
2, (9276A) '12-'13 25 mm Ball Bearings.
1, (9276A) '14 & up and either 1- left (9276A) non ABS or 1- left (9252) w/ ABS 25 mm Ball Bearings.
2008-2016
Belt Drive
HD Part #CENTER HUB BEARING SPACER (no flange)
43905-08ID=26mm (1.0xx”) … OD=32mm (1.25“) … Length=133mm (5.250”) 161) 162)163)164)165) 166) 167) 168) 169)
Will not work with cast 3 spoke wheels
H2817“ CAST 3 SPOKE REAR WHEEL
Uses 2, (9276) '11, (9276A) '12-'13 25 mm Ball Bearings
2009-2013
Belt Drive
HD Part #CENTER HUB BEARING SPACER (no flange)
41858-08Length ?? 170) 171) 172) 173) 174)



Rear Outside Bearing Spacers

Against Left BearingAgainst Right BearingAgainst Right SpacerYear Model Info
BS2140906-8240906-8241606-77 - (3/4” long) 175)1986-1987 Cast or Laced Rear Wheel
BS2243654-86A43654-86A41606-77 - (3/4“ long) 176)1982-1987 Cast or Laced Rear Wheel
BS2343654-86A
ID: 0.07515” (Nom. 3/4“)
OD: 1.125” (1-1/8“)
Width: 0.728” (Nom 3/4“)
43654-86A
ID: 0.07515” (Nom. 3/4“)
OD: 1.125” (1-1/8“)
Width: 0.733” (Nom 3/4“)
41594-73
ID: 0.07515” (Nom. 3/4“)
OD: 1.125” (1-1/8“)
Width: 0.643” (Nom 11/16“)
1988-1999 Cast or Laced Rear Wheel
BS2443654-0040910-00 N/A 2000-2002 Cast or Laced Wheel
BS2543654-00A40910-00A N/A 2003 Cast or Laced Wheel
BS2643654-00A
ID: 0.759” (Nom 3/4“)
OD: 1.125 (Nom 1-1/8”)
Width: 0.473
40930-04
ID: 0.759“ (Nom 3/4”)
OD: 1.250“ (Nom 1-1/4”)
Width: 1.474“
N/A 2004 Cast Rear Wheel
BS2741084-02A
ID: 1.002” (Nom 1“)
OD: 1.377 (Nom 1-3/8”)
Width: 0.470
*40930-05*
ID: 1.003“ (Nom 1”)
OD: 1.498“ (Nom 1-1/2”)
Width: 1.472“
N/A 2005-2007 Cast or Laced Rear Wheel
BS2841730-0840930-05 N/A 2008-2010 Cast or Laced Rear Wheel
2009-2013 Cast 3 Spoke Rear Wheel
BS2941242-0840930-05 N/A 2011-2016 Cast or Laced Rear Wheel
with non-ABS
BS3041100023
Sensor Ring
40930-05 N/A 2014-2016 Cast or Laced Rear Wheel
with ABS Brakes
2014 and up, Sensor Ring (replaces 41242-08, same size) is built into the ABS sensor wire

Pics (Rear OBS)

1988-1999 L-R, (2) - 43654-86A, (1) - 41594-73 1988-1999 Rear Wheel External Spacers
2004 R - 40930-04, L - 43654-00A
2005-2007 L - 41084-02A, R - 40930-05 2005-2007 Rear Wheel External Spacers



NOTES - Regarding 2000 and Up Conversion Bearings & Spacers

The Outside Diameter of all 2000-later sealed bearings is 52mm, regardless of the Inner Diameter for the axle. This provides for the potential conversion installation of any 2000-later bearing set (3/4”, 1“ or 25mm Axle) on any 2000-later wheel. If performing a conversion from stock, the Inner Hub Spacers & Outer Axle Spacers may vary between front & rear installations and between various models.

All stock wheels created for 2000-2007 models (whether for front or rear) have a hub bearing depth designed to accept 21mm wide wheel bearings. Stock wheels for 2008-later models have a hub depth design for 15mm wide wheel bearings.

Part Numbers listed below for 2000-Later Rear Wheel Bearings & Spacers
(Based on https://serviceinfo.harley-davidson.com/sip/service/document/215511?locale=en_US)

For 3/4” Axle - Rr Bearing .. .. 9267
For 1“ Axle - Rr Bearing .. .. .. 9247
For 25mm Axle - Rr Bearing . . 9276
For 25mm Axle - Rr Bearing . . 9276A
For 25mm Axle - Rr Bearing . . 9252 - For ABS

For 3/4” Axle .. .. .. 4.810“ Rr Center Hub Spacer . .. .. 43608-00
For 1” Axle .. .. .. .. 4.810“ Rr Center Hub Spacer .. .. 43517-00
For 25mm Axle .. .. .. 5.235” Rr Center Hub Spacer . 41900-08*
(HD calls these Axle Sleeves)

For 25mm Axle - .203“ (5mm) Bearing Shim Spacer - Rear .. 43904-08
(Used with 15mm wide bearings in wheels designed for 21mm wide Bearings) (Hub Spacer passes thru center of Bearing Shim Spacers)

(?? 25mm ABS Rr Axle Bearing .. 9252)

The axle part numbers vary somewhat by year/model - Check for your specific model.
*Some spacer part numbers may vary depending on the exact wheel

Part Numbers listed below for 2000-Later Front Wheel Bearings & Spacers

For 3/4” Axle - Frt Bearing .. .. 9267
For 25mm Axle - Frt Bearing . . 9276
For 25mm Axle - Frt Bearing . . 9276A
For 25mm Axle - Frt Bearing . . 9252 - For ABS

For 3/4“ Axle .. .. .. 3.040” Frt Center Hub Spacer . .. 43613-00
For 25mm Axle .. .. .. 2.980“ Frt Center Hub Spacer . .. 43906-08*
For 25mm Axle .. .. .. 4.104” Frt Center Hub Spacer . .. 11888*
(HD calls these Axle Sleeves)

For 25mm Axle - .111“ Bearing Shim Spacer - Left Front .. 43315-07
(Used with 15mm wide bearings in wheels designed for 21mm wide Bearings) (Hub Spacer passes thru center of Bearing Shim Spacers)

The axle part numbers vary somewhat by year/model - Check for your specific model.
*Some spacer part numbers may vary depending on the exact wheel

Part Numbers For Wheel Bearing Install Kits for 2000-later Wheels:
(These kits come with two bearings and various spacers to fit multiple models)
Front
2000-2007 - Using 3/4” Axle .. .. .. 43833-07A
2008-up — Using 25mm Axle . . .. 41452-08C

Rear
2000-2004 - Using 3/4“ Axle .. .. ..43854-08A
2005-2007 - Using 1” Axle . .. .. .. 43861-08A
2008-up — Using 25mm Axle .. .. 43878-08B (BUT NOT 2011-later XL883L)
(HD 43878-08B comes with two 25mm bearings, one 5mm spacer, a 133mm & 147mm center hub spacer and valve stems)

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
ReddTigger - http://xlforum.net/forums/showthread.php?t=1608830
Some early model wheels (made between 2000-2004?) may have a center hub hole that is only clearanced for 3/4“ axle spacers. This is not the surface where the bearings mount, but rather the hole between left & right sides of the hub where the center hub spacer goes through.

To use these wheels with a later axle size (ie., 1” or 25mm) you will need to bore that center hub hole to be slightly larger than the OD of spacer being used. DO NOT BUGGER UP THE BEARING SURFACES! The exact size of this enlargement is not critical but it must be done well. The hub spacer must move freeling in that opening. If you have any question of your ability to do this, find a machine shop who will enlarge that hole correctly. Take your hub spacer along to be sure the final hole is larger than the spacer OD. With skill, you should be able to use the proper size bit or a unibit to do this yourself.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

Other References:
https://www.hdforums.com/forum/sportster-models/1144065-what-is-the-correct-front-wheel-bearing-shim.html
https://www.justanswer.com/motorcycle/4vtb5-need-expert-harley-wheel-bearing-installation-please.html


NOTES - Regarding Other Bearings & Spacers

**Note:** These are aftermarket replacement parts (not OEM)
The following information is provided for information only.
THIS IS NOT AN ENDORSEMENT TO USE ANY OF THESE PARTS

2000-later
3/4" Sealed Bearing - OEM 9267 --- J&P 202-182
1" Sealed Bearing --- OEM 9247 --- J&P 202-183
25mm Sealed Bearing - OEM 251571 - J&P 203-785


1986-1999
3/4" Timken Tapered Roller Bearing - OEM 9052 - J&P 202-169

----------------------------------------------------------------------------------
Drag Specialties A25-1002 - 3/4" Wheel Bearing/Seal Kit (Frt/Rr) Like stock Timken
----------------------------------------------------------------------------------
Replaces OEM #9052 Timken Bearings & Seals
Contains all necessary bearings and seals required for each individual wheel application
Tapered Roller Bearing Specifications
.. (2) LM11910 Cups (1.781" OD) (Outer Race)
.. (2) LM11949 Cones (.75" ID) (Bearings & Inner Race)
...... Width of Assembly: .653"
.. (2) D5118 Grease Seal (1.781"OD x 1.12"ID x .40"Width)
http://xlforum.net/forums/showthread.php?t=1788732
Thread regarding converting Timken angular roller bearings to sealed ball bearings.
Decman includes a conceptual diagram of installing sealed bearings.

**Note:** Providing information only - not an endorsement of these parts.
The following is a sealed bearing kit as an alternative to Timken Bearings #9052.
Intended Application for 1991 to 1999 XL Rear Wheel w/Belt Drive.
(These bearings, theoretically, will also replace 3/4" front axle Timken bearings but ...
... will require a different set of hub & wheel spacers to match the front wheel hub width)

---------------------------------------------------------------------------
V-Twin No: 44-2995 - Rear Sealed Wheel Bearing Conversion Kit for 3/4" Axle
---------------------------------------------------------------------------
Retro fit for models with Timken bearings. Double row wheel bearings eliminate wheel play,
have a longer wear life, require no adjustment. Kit includes two bearings, center spacer
& spacers. Fits 1991-99 XL.
Double Row Sealed Wheel Bearing - OD=1.782" - ID=.747" - Width=.81"
Center_Spacer length=4.5"



Wheels

Front


Front Wheel 1986-2007

Sportster
Model
YearSizeWheel and PositionHD Wheel
Assembly
with bearings &
bearing spacer
Brakes
(S) Standard Single
(D) Standard Dual
A - Axle
B - Bearings
H - Hub Spacer
BS - Outer Bearing Spacers
XLH 8831986-1987
1988-1991
1992-1994
1995-1996
19“Front Laced43312-84 177)178) 179) 180)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1986-1987
1988-1991
1992-1994
1995
19”Front Cast 9 Spoke (silver)43338-83 181) 182) 183) 184)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1996
1997
19“Front Cast 13 Spoke (silver)43338-96 185) 186)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
1996
1997
19”Front Laced43312-84 187) 188)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
199819“Front Cast 13 Spoke (silver)43594-96 189)(S) A04 B01 H02 BS02
199819”Front Laced43312-84B190)(S) A04 B01 H02 BS02
199919“Front Cast 13 Spoke (silver)43338-96 191)(S) A04 B01 H02 BS02
199919”Front Laced43312-84 192)(S) A04 B01 H02 BS02
2000–200719“Front Cast 13 Spoke (silver)43338-00 193) 194)195) 196)
197) 198) 199) 200)
(S) A05 B02 H03 BS03
2000-200119”Front Laced43312-00 201) 202)(S) A05 B02 H03 BS03
2002-200319“Front Laced43312-00A 203) 204)(S) A05 B02 H03 BS03
2005-200719”Front Laced43312-05 205) 206) 207) (S) A05 B02 H03 BS03
XLH883 Deluxe1986-1987
1988-1991
1992-1994
1995
19“Front Laced43312-84 208)209) 210) 211)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1986-1987
1988-1991
1992-1994
1995
19”Front Cast 9 Spoke (silver)43338-83 212) 213) 214) 215)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
XL 883C199821“Front Laced43557-87B 216)(S) A04 B01 H02 BS02
199921”Front Laced43557-87 217)(S) A04 B01 H02 BS02
2000-200121“Front Laced43557-00 218) 219)(S) A05 B02 H03 BS03
2002-200421”Front Laced43557-00A 220) 221)222)(S) A05 B02 H03 BS03
2005-200721“Front Laced43557-05 223) 224) 225)(S) A05 B02 H03 BS03
2005-200721”Front “Profile” Laced44610-05 226) 227) 228)(S) A05 B02 H03 BS03
XL883 Hug1987
1988-1991
1992-1994
1995-1996
19“Front Laced43312-84 229)230) 231) 232)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1987
1988-1991
1992-1994
1995
19”Front Cast 9 Spoke (silver)43338-83 233) 234) 235) 236)(S) A01 B01 H01 BS01
(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1996
1997
19“Front Cast 13 Spoke (silver)43338-96 237) 238)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
1996
1997
19”Front Laced43312-84 239) 240)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
199819“Front Cast 13 Spoke (silver)43594-96 241)(S) A04 B01 H02 BS02
199819”Front Laced43312-84B242)(S) A04 B01 H02 BS02
199919“Front Cast 13 Spoke (silver)43338-96 243)(S) A04 B01 H02 BS02
199919”Front Laced43312-84 244)(S) A04 B01 H02 BS02
2000-200119“Front Laced43312-00 245) 246)(S) A05 B02 H03 BS03
2002-200319”Front Laced43312-00A 247) 248)(S) A05 B02 H03 BS03
2000-200319“Front Cast 13 Spoke (silver)43338-00 249) 250)251) 252)(S) A05 B02 H03 BS03
XL883L2005-200719”Front Cast 13 Spoke (silver)43338-00 253) 254) 255) (S) A05 B02 H03 BS03
2005-200719“Front Laced43312-05 256) 257) 258)(S) A05 B02 H03 BS03
XL883R2002-200319”Front Cast 13 Spoke (silver)43338-00 259) 260)(D) A05 B02 H03 BS03
2005-200619“Front Cast 13 Spoke (black)43626-00 261) 262) (D) A05 B02 H03 BS03
200619”Front Laced43312-05 263) (D) A05 B02 H03 BS03
200719“Front Cast 13 Spoke (black)40857-05 264) (D) A05 B02 H03 BS03
200719”Front Laced43547-05A 265) (D) A05 B02 H03 BS03
XLH 11001986-198719“Front Laced43312-84 266)267) 268) 269)(S) A01 B01 H01 BS01
1986-198719”Front Cast 9 Spoke (black)43626-84 270)(S) A01 B01 H01 BS01
XLH 12001988-1991
1992-1994
1995-1996
1997
19“Front Laced43312-84 271)272) 273) 274)(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
1988-1991
1992-1994
1995
19”Front Cast 9 Spoke (black)43626-84 275)276) 277) 278)(S) A02 B01 H01 BS01
(S) A02 B01 H02 BS01
(S) A02 B01 H02 BS02
1996
1997
19“Front Cast 13 Spoke (black)43626-96 279) 280)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
199819”Front Cast 13 Spoke (silver)43594-96 281)(S) A04 B01 H02 BS02
199819“Front Cast 13 Spoke (black)43499-96 282)(S) A04 B01 H02 BS02
199819”Front Laced43312-84B283)(S) A04 B01 H02 BS02
199919“Front Cast 13 Spoke (black)43626-96 284)(S) A04 B01 H02 BS02
199919”Front Laced43312-84 285)(S) A04 B01 H02 BS02
2000-200319“Front Cast 13 Spoke (black)43626-00 286) 287) 288) 289)(S) A05 B02 H03 BS03
2002-200319”Front Laced43312-00A 290) 291)(S) A05 B02 H03 BS03
XL1200C1996
1997
21“Front Laced43557-87 292) 293)(S) A02 B01 H02 BS02
(S) A03 B01 H02 BS02
199821”Front Laced43557-87B 294)(S) A04 B01 H02 BS02
199921“Front Laced43557-87 295)(S) A04 B01 H02 BS02
2000-200121”Front Laced43557-00 296) 297)(S) A05 B02 H03 BS03
2002-200421“Front Laced43557-00A 298) 299)300)(S) A05 B02 H03 BS03
2005-200721”Front Laced43557-05 301) 302) 303)(S) A05 B02 H03 BS03
2005-200721“Front “Profile” Laced44610-05 304) 305) 306)(S) A05 B02 H03 BS03
XL-50200719”Front Laced43312-05 307) (S) A05 B02 H03 BS03
XL1200L200719“Front Laced43312-05 308) (S) A05 B02 H03 BS03
200719”Front Cast 13 Spoke (black)40865-00 309) (S) A05 B02 H03 BS03
XL1200N
Nightster
200719“Front Laced (black)43831-07 310) (S) A05 B02 H03 BS03
XL1200R2004–200719”Front Cast 13 Spoke (silver)43338-00 311) 312) 313) 314) (D) A05 B02 H03 BS03
2005-200719“Front Laced43547-05A 315) 316) 317) (D) A05 B02 H03 BS03
200619”Front Laced43312-05 318) (D) A05 B02 H03 BS03
XL1200S1996
1997
19“Front Cast 13 Spoke (silver)43338-96 319) 320)(D) A02 B01 H02 BS02
(D) A03 B01 H02 BS02
199819”Front Cast 13 Spoke (silver)43594-96 321)(D) A04 B01 H02 BS02
199819“Front Laced43312-84B322)(D) A04 B01 H02 BS02
199919”Front Cast 13 Spoke (silver)43338-96 323)(D) A04 B01 H02 BS02
199919“Front Laced43312-84 324)(D) A04 B01 H02 BS02
2000-200119”Front Laced43312-00 325) 326)(D) A05 B02 H03 BS03
2000-200319“Front Cast 13 Spoke (silver)43338-00 327) 328)329) 330)(D) A05 B02 H03 BS03



Front Wheel 2008 and up

Sportster
Model
YearSizeWheel and Position HD Wheel
Assembly
without bearings &
bearing spacer

Note: Wheel Listing Change
Brakes
(S) Standard Single
(D) Standard Dual
A - Axle
B - Bearings
H - Hub Spacer
BS - Outer Bearing Spacers
XL8832008-200919”Front Cast 13 Spoke (silver)43594-08 331) 332) (S) A06 B04 H05 BS05
2008-200919“Front Laced43312-08 333) 334) (S) A06 B04 H05 BS05
XL883C
Custom
2008-201021”Front Laced43557-08 335)336) 337) (S) A06 B04 H05 BS05
2008-201021“Front “Profile” Laced44610-08 338) 339) 340) (S) A06 B04 H05 BS05
XL883L
Low
2008-201019”Front Laced43312-08 341) 342) 343)(S) A06 B04 H05 BS05
2008-201019“Front Cast 13 Spoke (silver)43594-08 344) 345) 346)(S) A06 B04 H05 BS05
XL883L
Super Low
2011
2012-2016
2014-2016
18”Front Cast 5 Spoke (black)43689-11 347) 348) 349) 350) 351) 352)(S) A07 B04 H07 BS06
(S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
XL883N
Iron 883
2009-201119“Front Cast 13 Spoke (black)47875-09 353) 354) 355) (S) A06 B04 H05 BS05
2012-2013
2014-2015
2014-2015
19”Front Cast 13 Spoke (black)47875-09A 356) 357) 358) 359) (S) A06 B05 H05 BS05
(S) A08 B05 H05 BS07
(ABS) A08 B06 H05 BS08
201619“Front Cast 9 Spoke (black)43300394 360) (S) A08 B05 H05 BS07
(ABS) A08 B06 H05 BS08
XL883R2008-2011
2012-2013
19”Front Cast 13 Spoke (black)43499-08 361) 362) 363) 364) 365) 366) (D) A06 B04 H05 BS05
(D) A06 B05 H05 BS05
2009-201019“Front Laced43547-08 367) 368)(D) A06 B04 H05 BS05
2014-201519”Front Cast 13 Spoke (black)43300156 369) 370) (D) A08 B05 H05 BS07
(ABD) A08 B06 H05 BS08
XL1200C2008-201021“Front Laced43557-08 371)372) 373) (S) A06 B04 H05 BS05
2008-201021”Front “Profile” Laced44610-08 374) 375) 376) (S) A06 B04 H05 BS05
2012-201316“Front Cast 5 Spoke (chrome)55018-11 377) 378) (S) A07 B05 H07 BS09
2014-201516”Front Cast 5 Spoke (chrome)4300158 379) 380) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
201616“Front Cast 5 Spoke (chrome)55018-11 381) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
2012-2016
2014-2016
16”Front Laced (chrome)55126-11 382) 383) 384) 385) 386) (S) A07 B05 H08 BS09
(ABS) A07 B06 H08 BS10
XL1200CA201316“Front Cast 5 Spoke (black)55074-11 387) (S) A07 B05 H07 BS09
2014-201616”Front Cast 5 Spoke (black)43300157 388) 389) 390) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
XL1200CB2013-2016
2014-2016
16“Front Laced (black)41388-10 391) 392) 393) 394) (S) A07 B05 H08 BS09
(ABS) A07 B06 H08 BS10
XL1200CP
Anniversary
201316”Front Cast 5 Spoke (chrome)55018-11 395) (S) A07 B05 H07 BS09
XL1200CP2012-201316“Front Cast 5 Spoke (black)55074-11 396) 397) (S) A07 B05 H07 BS09
2012-201316”Front Cast 5 Spoke (chrome)55018-11 398) 399) (S) A07 B05 H07 BS09
2014-201516“Front Cast 5 Spoke (chrome)43300158 400) 401) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
2014-201616”Front Cast 5 Spoke (black)43300157 402) 403) 404) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
201616“Front Cast 5 Spoke (chrome)55018-11 405) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
2012-2016
2014-2016
16”Front Laced (black)41388-10 406) 407) 408) 409) 410) (S) A07 B05 H08 BS09
(ABS) A07 B06 H08 BS10
2012-2016
2014-2016
16“Front Laced (chrome)55126-11 411) 412) 413) 414) 415) (S) A07 B05 H08 BS09
(ABS) A07 B06 H08 BS10
XL1200L200819”Front Cast 13 Spoke (gloss black)
105th Anniversary restricted sale
43426-08 416)(S) A06 B04 H05 BS05
2008-201119“Front Cast 13 Spoke (matte black)41659-08 417) 418) 419) 420)(S) A06 B04 H05 BS05
2009-201119”Front Laced43312-08 421) 422) 423) (S) A06 B04 H05 BS05
XL1200N
Nightster
2008-2011
2012
19“Front Laced (black)43831-08 424) 425) 426) 427) 428) (S) A06 B04 H05 BS05
(S) A06 B05 H05 BS05
XL1200R2008-200919”Front Cast 13 Spoke (black)43499-08 429) 430) (D) A06 B04 H05 BS05
2008-200919“Front Laced43547-08 431) 432) (D) A06 B04 H05 BS05
XL1200T2015-201618”Front Cast 5 Spoke (black)43300282 433) 434) (S) A07 B05 H07 BS09
(ABS) A07 B06 H07 BS10
XL1200V
Seventy Two
2013
2014-2016
2014-2016
21“Front Laced43557-08 435) 436) 437) 438) (S) A06 B05 H05 BS05
(S) A08 B05 H05 BS07
(ABS) A08 B06 H05 BS08
XL1200X
Forty Eight
2010-2011
2012-2015
2014-2015
16”Front Laced (black)41388-10 439) 440) 441) 442) 443) 444) (S) A07 B04 H08 BS09
(S) A07 B05 H08 BS09
(ABS) A07 B06 H08 BS10
201616“Front 9 Spoke (black)43300392 445) (S) A07 B05 H09 BS09
(ABS) A07 B06 H09 BS10
XR12002009-201018”Front Cast 3 Spoke (black)43103-08 446) 447)(D) A07 B04 H06 BS06
XR1200X2011
2012-2013
18“Front 3 Spoke (black w/ stripe)43343-10 448) 449) 450) 451) (D) A07 B04 H06 BS06
(D) A07 B05 H06 BS06
NOTE: Be sure to mount the tire matching the correct rotation to the wheel!
2008-later wheels may have Shallow Bearing Cavity on LEFT and Deeper Cavity on the RIGHT!
Example: 2008 Roadster, dual discs. Left & Right discs may be swapped based on Svc Bulletin M-1192A. 452)



Rear


Rear Wheel 1986 - 2007

Sportster
Model
YearSizeWheel and PositionHD Wheel
Assembly
with bearings &
bearing spacer
Brake
(SB) standard
A - Axle
B - Bearings
H - Hub Spacer
BS - Outer Bearing Spacers
XLH 883

← '91 Chain Drive
→ '91 Belt Drive
1986-1987
1988
1989-1991
1991-1996
16”Rear Cast 9 Spoke (silver)40983-86 453) 454) 455) 456) SB A21 B21 H21 BS22
SB A21 B21 H21 BS23
SB A22 B21 H21 BS23
SB A22 B21 H23 BS23


← '91 Chain Drive
→ '91 Belt Drive
1986-1987
1988
1989-1991
1991-1996
16“Rear Laced (chrome)40975-86 457) 458) 459)460) SB A21 B21 H22 BS22
SB A21 B21 H22 BS23
SB A22 B21 H22 BS23
SB A22 B21 H24 BS23
1996-199716”Rear Cast 13 Spoke (silver)40983-96 461) 462)SB A22 B21 H23 BS23
199716“Rear Laced40975-86A 463)SB A22 B21 H24 BS23
199816”Rear Laced40975-86C 464)SB A22 B21 H24 BS23
199816“Rear Cast 13 Spoke (silver)40992-96 465)SB A22 B21 H23 BS23
199916”Rear Cast 13 Spoke (silver)40983-96 466)SB A22 B21 H23 BS23
199916“Rear Laced40975-86A 467)SB A22 B21 H24 BS23
2000-200216”Rear Cast 13 Spoke (silver)40983-00 468) 469) 470) 471) SB A22 B22 H25 BS24
200316“Rear Cast 13 Spoke (silver)40983-00 472) 473) 474) 475) SB A22 B22 H25 BS25
2000-200216”Rear Laced40975-00 476) 477) 478) 479)SB A22 B22 H25 BS24
200316“Rear Laced40975-00 480) 481) 482) 483)SB A22 B22 H25 BS25
200416”Rear Cast 13 Spoke (silver)40983-00 484)SB A23 B22 H25 BS26
200516“Rear Laced41052-02 485)SB A24 B23 H26 BS27
2005-200716”Rear Cast 13 Spoke (silver)43637-05 486) 487) 488) SB A24 B23 H26 BS27
200616“Rear Laced41052-05 489) SB A24 B23 H26 BS27
200716”Rear Laced41052-05A 490)SB A24 B23 H26 BS27
XL883C199916“Rear Solid Disc41008-00 491) 492) 493)494) 495)SB A22 B21 H23 BS23
2000-200216”Rear Solid Disc41008-00 496) 497) 498)499) 500)SB A22 B22 H25 BS24
200316“Rear Solid Disc41008-00 501) 502) 503)504) 505)SB A22 B22 H25 BS25
200416”Rear Cast Solid w/holes (silver)41008-00 506)SB A23 B22 H25 BS26
200516“Rear Cast Solid w/Holes (silver)41041-05 507) SB A24 B23 H26 BS27
2005-200616”Rear “Profile” Laced44606-05 508) 509)SB A24 B23 H26 BS27
200716“Rear Cast Solid w/Holes (silver)41041-05 510)SB A24 B23 H26 BS27
200716”Rear “Profile” (chrome) Laced44606-05B 511)SB A24 B23 H26 BS27
XLH 883 Deluxe

← '91 Chain Drive
→ '91 Belt Drive
1986-1987
1988
1989-1991
1991-1995
16“Rear Cast 9 Spoke (silver)40983-86 512) 513) 514) 515) SB A21 B21 H21 BS22
SB A21 B21 H21 BS23
SB A22 B21 H21 BS23
SB A22 B21 H23 BS23


← '91 Chain Drive
→ '91 Belt Drive
1986-1987
1988
1989-1991
1991-1995
16”Rear Laced (chrome)40975-86 516) 517) 518)519) SB A21 B21 H22 BS22
SB A21 B21 H22 BS23
SB A22 B21 H22 BS23
SB A22 B21 H24 BS23
XLH 883 Hug

← '91 Chain Drive
→ '91 Belt Drive
1987
1988
1989-1991
1991-1995
16“Rear Cast 9 Spoke (silver)40983-86 520) 521) 522) 523) SB A21 B21 H21 BS22
SB A21 B21 H21 BS23
SB A22 B21 H21 BS23
SB A22 B21 H23 BS23


← '91 Chain Drive
→ '91 Belt Drive
1987
1988
1989-1991
1991-1996
16”Rear Laced (chrome)40975-86 524) 525) 526)527) SB A21 B21 H22 BS22
SB A21 B21 H22 BS23
SB A22 B21 H22 BS23
SB A22 B21 H24 BS23
1996-199716“Rear Cast 13 Spoke (silver)40983-96 528) 529)SB A22 B21 H23 BS23
199716”Rear Laced40975-86A 530)SB A22 B21 H24 BS23
199816“Rear Laced40975-86C 531)SB A22 B21 H24 BS23
199816”Rear Cast 13 Spoke (silver)40992-96 532)SB A22 B21 H23 BS23
199916“Rear 13 Spoke (silver)40983-96 533)SB A22 B21 H23 BS23
199916”Rear Laced40975-86A 534) SB A22 B21 H24 BS23
2000-200216“Rear Cast 13 Spoke (silver)40983-00 535) 536) 537) 538) SB A22 B22 H25 BS24
200316”Rear Cast 13 Spoke (silver)40983-00 539) 540) 541) 542)SB A22 B22 H25 BS25
2000-200216“Rear Laced40975-00 543) 544) 545) 546)SB A22 B22 H25 BS24
200316”Rear Laced40975-00 547) 548) 549) 550)SB A22 B22 H25 BS25
XL883L200516“Rear Laced41052-02 551)SB A24 B23 H26 BS27
2005-200716”Rear Cast 13 Spoke (silver)43637-05 552) 553) 554) SB A24 B23 H26 BS27
200616“Rear Laced41052-05 555) SB A24 B23 H26 BS27
200716”Rear Laced41052-05A 556)SB A24 B23 H26 BS27
XL883R2005-200716“Rear Cast 13 Spoke (black)40855-05 557) 558) 559)SB A24 B23 H26 BS27
200716”Rear Laced41052-05A 560)SB A24 B23 H26 BS27
XLH 11001986-198716“Rear Cast 9 Spoke (black)41015-86 561)SB A21 B21 H21 BS22
1986-198716”Rear Laced40975-86 562) 563) 564)565)SB A21 B21 H22 BS22
XL-50 (1200)200716“Rear Laced41052-05A 566)SB A24 B23 H26 BS27
XLH 1200
← '91 Chain Drive
→ '91 Belt Drive
1988
1989-1991
1991-1995
16”Rear Cast 9 Spoke (black)41015-86567) 568) 569) 570) SB A21 B21 H21 BS23
SB A22 B21 H21 BS23
SB A22 B21 H23 BS23

← '91 Chain Drive
→ '91 Belt Drive
1988
1989-1991
1991-1996
16“Rear Laced (chrome)40975-86 571) 572) 573)574)SB A21 B21 H22 BS23
SB A22 B21 H22 BS23
SB A22 B21 H24 BS23
1996-199716”Rear Cast 13 Spoke (black)41015-96 575) 576)SB A22 B21 H23 BS23
199716“Rear Laced40975-86A 577)SB A22 B21 H24 BS23
199816”Rear Laced40975-86C 578)SB A22 B21 H24 BS23
199816“Rear Cast 13 Spoke (black)41012-96 579)SB A22 B21 H23 BS23
199916”Rear Laced40975-86A 580)SB A22 B21 H24 BS23
199916“Rear Cast 13 Spoke (black)41015-96 581)SB A22 B21 H23 BS23
2000-200216”Rear Cast 13 Spoke (black)41015-00 582) 583) 584) 585)SB A22 B22 H25 BS24
200316“Rear Cast 13 Spoke (black)41015-00 586) 587) 588) 589)SB A22 B22 H25 BS25
2000-200216”Rear Laced40975-00 590) 591) 592) 593)SB A22 B22 H25 BS24
200316“Rear Laced40975-00 594) 595) 596) 597)SB A22 B22 H25 BS25
XL1200C1996-199716”Rear Cast Solid with Slots41017-95 598) 599)SB A22 B21 H23 BS23
199816“Rear Solid w/Slots41013-95 600)SB A22 B21 H23 BS23
2000-200216”Rear Chrome Solid with Slots41017-00 601) 602) 603) 604) 605)SB A22 B22 H25 BS24
200316“Rear Chrome Solid with Slots41017-00 606) 607) 608) 609) 610)SB A22 B22 H25 BS25
200416”Rear Chrome Solid with Slots41017-00 611) 612) 613) 614) 615)SB A23 B22 H25 BS26
200516“Rear Chrome Solid with Slots43335-05 616)SB A24 B23 H26 BS27
2005-200616”Rear “Profile” Laced44606-05 617) 618)SB A24 B23 H26 BS27
200716“Rear Chrome Solid with Slots43335-05 619)SB A24 B23 H26 BS27
200716”Rear “Profile” Laced (chrome)44606-05B 620)SB A24 B23 H26 BS27
XL1200L200716“Rear Cast 13 Spoke (black)40871-06 621)SB A24 B23 H26 BS27
200716”Rear Laced41052-05A 622)SB A24 B23 H26 BS27
XL1200N
Nightster
200716“Rear Laced (black)43832-07 623)SB A24 B23 H26 BS27
XL1200R200416”Rear Cast 13 Spoke (silver)40983-00 624)SB A23 B22 H25 BS26
200516“Rear Laced41052-02 625)SB A24 B23 H26 BS27
2005-200716”Rear Cast 13 Spoke (silver)43637-05 626) 627) 628) SB A24 B23 H26 BS27
200616“Rear Laced41052-05 629) SB A24 B23 H26 BS27
200716”Rear Laced41052-05A 630)SB A24 B23 H26 BS27
XL1200S1996-199716“Rear Cast 13 Spoke (silver)40983-96 631) 632)SB A22 B21 H23 BS23
199716”Rear Laced40975-86A 633) SB A22 B21 H23 BS23
199816“Rear Laced40975-86C 634)SB A22 B21 H23 BS23
199816”Rear Cast 13 Spoke (silver)40992-96 635)SB A22 B21 H23 BS23
199916“Rear 13 Spoke (silver)40983-96 636)SB A22 B21 H23 BS23
2000-200216”Rear Cast 13 Spoke (silver)40983-00 637) 638) 639) 640)SB A22 B22 H25 BS24
200316“Rear Cast 13 Spoke (silver)40983-00 641) 642) 643) 644) SB A22 B22 H25 BS25



Rear Wheel 2008 and Up

Sportster
Model
YearSizeWheel and PositionHD Wheel
Assembly
without bearings &
bearing spacer

Note: Wheel Listing Change
Brake
(SB) Standard
(AB) ABS
A - Axle
B - Bearings
H - Hub Spacer
BS - Outer Bearing Spacers
XL8832008-200916”Rear Cast 13 Spoke (silver)40992-08 645) 646) SB A25 B24 H27 BS28
2008-200916“Rear Laced41082-08 647) 648) SB A25 B24 H27 BS28
XL883C
Custom
200816”Rear Cast Solid w/ Holes (silver)41058-08 649)SB A25 B24 H27 BS28
2008-201016“Rear “Profile” Laced41083-08 650) 651) 652)SB A25 B24 H27 BS28
2009-201016”Rear Cast Solid w/ Holes (silver)41058-09 653) 654) SB A25 B24 H27 BS28
XL883L
Low
2008-200916“Rear Cast 13 Spoke (silver)40992-08 655) 656) SB A25 B24 H27 BS28
2008-200916”Rear Laced41082-08 657) 658) SB A25 B24 H27 BS28
201016“Rear Cast 13 Spoke (silver)40992-08 659) SB A25 B24 H27 BS28
201016”Rear Laced41082-08 660) SB A25 B24 H27 BS28
XL883L
Super Low
201117“Rear 5 Spoke (black)44012-11 661) 662) SB A25 B24 H27 BS29
201217”Rear 5 Spoke (black)44012-11 663) 664) SB A25 B25 H27 BS29
201317“Rear Cast 5 Spoke (black)44012-11A 665) 666) 667) SB A25 B25 H27 BS29
2014-201617”Rear Cast 5 Spoke (black)44012-11A 668) 669) 670) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL883N
Iron 883
2009-201016“Rear Cast 13 Spoke (black)47878-09 671) 672) 673) SB A25 B24 H27 BS28
201116”Rear Cast 13 Spoke (black)47878-09 674) 675) 676) SB A25 B24 H27 BS29
2012-201316“Rear Cast 13 Spoke (black)47878-09A 677) 678) SB A25 B25 H27 BS29
2014-201516”Rear Cast 13 Spoke (black)47878-09B 679) 680) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201616“Rear Cast 9 Spoke (black)40900402 681) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL883R
Roadster
2008-200916”Rear Cast 13 Spoke (black)41012-08 682) 683) SB A25 B24 H27 BS28
2009-201016“Rear Laced41082-08 684) 685) SB A25 B24 H27 BS28
201116”Rear Cast 13 Spoke (black)41012-08 686) 687) 688) SB A25 B24 H27 BS29
2012-201316“Rear Cast 13 Spoke (black)41012-08 689) 690) 691) SB A25 B25 H27 BS29
2014-201516”Rear Cast 13 Spoke (black)40900165 692) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200C
Anniversary
201316“Rear Cast 5 Spoke (chrome)55019-11A 693) SB A25 B25 H27 BS29
XL1200C200816”Rear Cast Solid w/ Slots (chrome)41013-08 694)SB A25 B24 H27 BS28
2008-201016“Rear “Profile” Laced41083-08 695) 696) 697)SB A25 B24 H27 BS28
2009-201016”Rear Cast Solid w/ Slots (chrome)41013-09 698) 699)SB A25 B24 H27 BS28
201216“Rear Cast 5 Spoke (chrome)55019-11 700) SB A25 B25 H27 BS29
201216”Rear Laced41082-08 701) SB A25 B25 H27 BS29
201316“Rear Cast 5 Spoke (chrome)55019-11A 702) SB A25 B25 H27 BS29
201316”Rear Laced41082-08A 703) 704) 705) 706) SB A25 B25 H27 BS29
2014-201616“Rear Laced41082-08A 707) 708) 709) 710) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
2014-201516”Rear Cast 5 Spoke (chrome)40900167 711) 712) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201616“Rear Cast 5 Spoke (chrome)55019-11A 713)SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200CA201316”Rear Cast 5 Spoke (black)55076-11A 714) SB A25 B25 H27 BS29
2014-201616“Rear Cast 5 Spoke (black)40900166 715) 716) 717) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200CB201316”Rear Laced (black)41478-10A 718) 719) 720) SB A25 B25 H27 BS29
2014-201616“Rear Laced (black)41478-10A 721) 722) 723) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201316”Rear Laced41082-08A 724) 725) 726) 727) SB A25 B25 H27 BS29
2014-201616“Rear Laced41082-08A 728) 729) 730) 731) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200CP201216”Rear Cast 5 Spoke (chrome)55019-11 732) SB A25 B25 H27 BS29
201216“Rear Cast 5 Spoke (black)55076-11 733) SB A25 B25 H27 BS29
201216”Rear Laced41082-08 734) SB A25 B25 H27 BS29
201216“Rear Laced (black)41478-10 735) SB A25 B25 H27 BS29
201316”Rear Cast 5 Spoke (chrome)55019-11A 736) SB A25 B25 H27 BS29
201316“Rear Cast 5 Spoke (black)55076-11A 737) SB A25 B25 H27 BS29
201316”Rear Laced (chrome)41082-08A 738)SB A25 B25 H27 BS29
2014-201616“Rear Laced (chrome)41082-08A 739) 740)741) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201316”Rear Laced (black)41478-10A 742) 743) 744) SB A25 B25 H27 BS29
2014-201616“Rear Laced (black)41478-10A 745) 746) 747) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
2014-201516”Rear Cast 5 Spoke (chrome)40900167 748) 749) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
2014-201616“Rear Cast 5 Spoke (black)40900166 750) 751) 752)SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201616”Rear Cast 5 Spoke (chrome)55019-11A 753)SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200L200816“Rear Cast 13 Spoke (gloss-black)
105th Anv. restricted sale
43427-08 754)SB A25 B24 H27 BS28
2008-200916”Rear Laced41082-08 755) 756) SB A25 B24 H27 BS28
2008-201016“Rear Cast 13 Spoke (matte-black)41660-08 757) 758) 759) 760)SB A25 B24 H27 BS28
201116”Rear Cast 13 Spoke (matte-black)41660-08 761) 762) 763) 764)SB A25 B24 H27 BS29
201016“Rear Laced41082-08 765) 766)SB A25 B24 H27 BS28
201116”Rear Laced41082-08 767) 768)SB A25 B24 H27 BS29
XL1200N
Nightster
2008-201016“Rear Laced (black)43832-08 769) 770) 771) 772) 773) SB A25 B24 H27 BS28
201116”Rear Laced (black)43832-08 774) 775) 776) 777) 778) SB A25 B24 H27 BS29
201216“Rear Laced (black)43832-08 779) 780) 781) 782) 783) SB A25 B25 H27 BS29
XL1200R2008-200916”Rear Cast 13 Spoke (black)41012-08 784) 785) SB A25 B24 H27 BS28
2008-200916“Rear Laced41082-08 786) 787) SB A25 B24 H27 BS28
XL1200T2015-201617”Rear 5 Spoke (black)40900291 788) 789)SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200V
Seventy Two
201316“Rear Laced41082-08A 790) 791) 792) 793) SB A25 B25 H27 BS29
2014-201616”Rear Laced41082-08A 794) 795) 796) 797) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XL1200X
Forty Eight
201016“Rear Laced (black)41478-10 798) 799) 800) SB A25 B24 H27 BS28
201116”Rear Laced (black)41478-10 801) 802) 803) SB A25 B24 H27 BS29
201216“Rear Laced (black)41478-10 804) 805) 806) SB A25 B25 H27 BS29
201316”Rear Laced (black)41478-10A 807) 808) 809) SB A25 B25 H27 BS29
2014-201516“Rear Laced (black)41478-10A 810) 811) 812) SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
201616”Rear cast 9 spoke (black)40900400 813)SB A25 B25 H27 BS29
AB A25 B26 H27 BS30
XR12002009-201017“Rear Cast 3 Spoke (black)43107-08 814) 815) SB A26 B24 H28 BS28
XR1200X2010-201117”Rear Cast 3 Spoke (black)43348-10 816) 817) 818) 819) SB A26 B24 H28 BS28
2012-201317“Rear Cast 3 Spoke (black)43348-10 820) 821) 822) 823) SB A26 B25 H28 BS28



Spoked Hub

FRONT
YearModel(s)Hub PositionRim SizeHub and Brake Shell w/ bearings
1986-1995All ModelsFront19”43619-84 824)825) 826) 827)
1996-1997XL883/Xl883 Hug/XL1200Front19“43619-84 828) 829)
1996-1999XL1200CFront21”43610-87 830) 831) 832)833)
1998-1999XL883CFront21“43610-87 834) 835)
XL883/Xl883 Hug/XL1200/XL1200SFront19”43619-84 836) 837) 838) 839)
2000-2001XL883/XL883 Hug/XL1200Front19“43619-00 840) 841)
XL883C/XL1200CFront21”43610-00 842) 843)
2002-2003XL883/XL883 Hug/XL1200Front19“43619-00A 844) 845)
2002-2007XL883C/XL1200CFront21”43610-00A 846) 847) 848) 849) 850) 851)
2005-2006XL883R/XL1200RFront19“43619-00A 852) 853)
2005-2007XL883C/XL1200CFront21”“Profile” type 43500-05 854) 855) 856)
XL883/XL883L/Front19“43619-00A 857) 858) 859)
XL1200RFront19”43629-00A 860) 861) 862)
2007XL883RFront19“43629-00A 863)
XL1200L/XL50/Front19”43619-00A 864)
XL1200NFront19“(black) 43652-07 865)
REAR
YearModel(s)Hub PositionRim SizeHub Assembly w/ bearings
1986-1994All ModelsRear16”40976-86 866) 867) 868)
1995-1996All ModelsRear16“40976-86 869)
1997-1998All ModelsRear16”40976-86A 870) 871)
1999XL883/XL883 Hug/XL1200Rear16“40976-86A 872)
2000-2003XL883/XL883 Hug/XL1200Rear16”40976-00 873)874) 875) 876)
2004 No laced rear wheels with hubs referenced by HD 877)
2005All ModelsRear16““Profile” 41053-02 878)
2006XL883/XL883L/XL883C/XL1200CRear16”“Profile” 41053-02 879)
2007All models (except XL1200N)Rear16““Profile” 41053-02A 880)
XL1200NRear16”(black) 43696-07 881)

2008 and up hubs are not sold separately but rather as an assembly with the rim


Valve Stems

Cast Wheels

Year Front/Rear P/N Hole Dia Notes
1984-1997 Front 43150-83
Obsolete
*See Below
0.453“
29/64”
11.3mm
Metal Base - Two Stepped Threads valvestem-43150-83.jpg
1984-2010
1998-2010
Rear
Front
43157-83A 0.344“
11/32”
8.3mm
Metal Base - Straight Threads
2011-2018 Front
Rear
40999-87 0.453“
29/64”
11.3mm
Rubber Base, Snap-in Auto Style
* Napa has P/N 'NTH 90416' - Metal Tire Valve Stem / Hole Size = .453“ or .625” / Length = 1.44“
V-Twin also has P/N 28-2130 which is said to be compatible
Similarly, most auto stores and Grainger's sell various valve stems at different lengths



Tires

Factory Tire Information

HD Replacement Tire Guide: HERE

  • Rim size and contour are cast or stamped into exterior surface of rim.
  • Example: T19x2.50 CO DOT. “T” indicates the rim conforms to 'Tire and Rim Association' standards, 19 is the nominal diameter of the rim in inches measured at the bead center diameter, 2.5 is the width of the bead seat measured in inches, CO designates the rim contour, DOT means the rim meets Dept. of Motor Vehicle Standards. 882)
  • See also Tire 101 for decoding tire sizes, conversion, cross reference charts, etc.
HD Recommendations per Year Model
1986 XLH 883)Wheel Size and PositionWheel TypeRim Size and ContourHD Tire SizeRim Valve Hole Dia.Dunlop K181 Tire Size
19” FrontTubeless CastT19x2.15 MTYYY0.45“MJ90-19
16” RearTubeless CastT16x3.00 DWWW0.34“MT90-16
1987-1990 884)Wheel Size and PositionWheel TypeRim Size and ContourRim Valve Hole Dia.Dunlop K181 Tire SizeDunlop K291 Tire Size
19” FrontTubeless CastT19-2.15 MT0.45“MJ90-19MJ90-19
16” RearTubeless CastT16x3.00 D0.45“MT90-16MT90-16
1986-1988 885)Wheel Size and PositionWheel TypeRim Size and ContourTube SizeDunlop K181 Tire SizeDunlop K291 Tire Size
19” FrontLacedT19x2.50 TLAMJ90-19MJ90-19MJ90-19
16“ RearLacedT16x3.00 DMT90-16MT90-16MT90-16
1989-1990 886)Wheel Size and PositionWheel TypeRim Size and ContourTube SizeDunlop K181 Tire SizeDunlop K291 Tire Size
19” FrontLacedT19x2.50 MTAMJ90-19MJ90-19MJ90-19
16“ RearLacedT16x3.00 DMT90-16MT90-16MT90-16
1991-2003Wheel Size and PositionWheel TypeRim Size and ContourRim Valve Hole DiameterDunlop D401 Elite S/T Tire SizeDunlop K591 S&FR Elite SP Tire Size
19” FrontTubeless CastT19x2.15 MT887) 0.45“(11.4mm)100/90-19100/90-V19
16” RearTubeless CastT16x3.00 D888) 0.45“ (11.4mm)130/90-16130/90-V16
1991-2003Wheel Size and PositionWheel TypeRim Size and ContourTube SizeDunlop D401 Elite S/T Tire SizeDunlop Touring Elite II Tire Size
19” FrontLacedT19x2.50 MTA 889) MJ90-19100/90-19—-
16“ RearLacedT16-3.00 D890) MT90-16130/90-16—-
21” FrontLacedT21x2.15 TLA3.00×21—-MH90-21 56H
16“ RearLacedT16x3.00 DMT90-16—-MT90-B16
2004 891)Wheel Size and PositionWheel TypeRim Size and ContourRim Valve Hole DiameterDunlop D401 Elite S/T Tire SizeDunlop D401F Tire Size
19” FrontTubeless CastT19x2.15 MT0.45“(11.4mm)100/90-19100/90-19 57H
16” RearTubeless CastT16x3.00 D0.35“ (8.9mm)130/90-16150/80B16 71H
2004 892)Wheel Size and PositionWheel TypeRim Size and ContourTube SizeDunlop D401 Elite S/T Tire SizeDunlop D402F Tire Size
19” FrontLacedT19x2.50 TLAMJ90-19100/90-19—-
21“ FrontLacedT21x2.15 TLA3.00×21—-MH90-21 M/C 54H
No rear laced tires were factory installed on Sportsters in 2004

Pics of Wheels

2018 XL1200N Mags 893)

1)
Illustration created by IXL2Relax at the XLForum
3) , 27) , 82) , 83) , 120)
Annotated by IXL2Relax at the XLForum
4)
Photos by Multihdrdr of the XLForum.net
6)
1979-1985 HD Sportster Parts Catalog pg 73-75
7)
1986-1990 HD Sportster Parts Catalog pg 51-53
8)
1991-1992 HD Sportster Parts Catalog pg 51-53
9)
1993-1994 HD Sportster Parts Catalog pg 47-49
10)
1995-1996 HD Sportster Parts Catalog pg 47-49
11)
1997 HD Sportster Parts Catalog pg 49-51
12)
1998 HD Sportster Parts Catalog pg 53-55
13)
1999 HD Sportster Parts Catalog pg 55-57
14)
2000 HD Sportster Parts Catalog pg 57-59
15)
2001 HD Sportster Parts Catalog pg 59-61
16)
2002 HD Sportster Parts Catalog pg 59-61
17)
2003 HD Sportster Parts Catalog pg 59-61
18)
2004 HD Sportster Parts Catalog pg 59-61
23)
photo by Hippysmack
24) , 25) , 26) , 84) , 117) , 118) , 119)
photos by Hippysmack
28) , 30) , 32)
1979-1985 HD Sportster Parts Catalog pg 53-55
29) , 31) , 33)
1991-1992 HD Sportster Parts Catalog pg 47-49
34) , 35) , 36) , 37) , 38) , 41) , 134) , 135) , 136) , 137) , 142) , 143) , 144) , 145) , 146) , 150) , 458) , 517) , 525) , 563) , 572) , 867)
1991-1992 HD Sportster Parts Catalog pg 57
39) , 128) , 130) , 132) , 138) , 147)
1991 HD Sportster Parts Catalog pg 57
40) , 49) , 65) , 72) , 80) , 140) , 149)
unverified hearsay
42) , 151) , 157)
Preston Cycle Products - See REF Section
44)
2000 HD Sportster Parts Catalog pg 57, 59
45)
2001 HD Sportster Parts Catalog pg 59, 61
46)
2002 HD Sportster Parts Catalog pg 59, 61
47)
2003 HD Sportster Parts Catalog pg 59, 61
48)
2004 HD Sportster Parts Catalog pg 59, 61
50)
2008 HD Sportster Parts Catalog pg 61, 63
51)
2009 HD Sportster Parts Catalog pg 91-95
52)
2010 HD Sportster Parts Catalog pg 87-91
53)
2011 HD Sportster Parts Catalog pg 87-91
54)
2012 HD Sportster Parts Catalog pg 87-91
55)
2013 HD Sportster Parts Catalog pg 97-101
56)
2014 HD Sportster Parts Catalog pg 67-69
57)
2015 HD Sportster Parts Catalog pg 69-71
58)
2016 HD Sportster Parts Catalog pg 69-71
59)
DK,DS,others
60) , 446)
2009 HD Sportster Parts Catalog pg 93
61) , 447) , 448)
2010 HD Sportster Parts Catalog pg 89
62) , 449)
2011 HD Sportster Parts Catalog pg 89
63) , 75) , 382) , 406) , 411) , 428) , 441)
2012 HD Sportster Parts Catalog pg 91
64) , 451)
2013 HD Sportster Parts Catalog pg 99
66) , 347) , 355) , 420) , 423)
2011 HD Sportster Parts Catalog pg 87
67) , 348) , 356) , 365) , 377) , 396) , 398)
2012 HD Sportster Parts Catalog pg 87
68) , 349) , 357) , 366) , 378) , 387) , 395) , 397) , 399)
2013 HD Sportster Parts Catalog pg 97
69) , 350) , 358) , 369) , 379) , 388) , 400) , 402)
2014 HD Sportster Parts Catalog pg 67
70) , 351) , 359) , 370) , 380) , 389) , 401) , 403) , 433)
2015 HD Sportster Parts Catalog pg 69
71) , 79) , 81) , 352) , 360) , 381) , 390) , 404) , 405) , 434) , 445)
2016 HD Sportster Parts Catalog pg 69
73) , 337) , 340) , 343) , 368) , 373) , 376) , 422) , 426) , 439)
2010 HD Sportster Parts Catalog pg 91
74) , 364) , 427) , 440)
2011 HD Sportster Parts Catalog pg 91
76) , 383) , 391) , 407) , 412) , 435) , 442)
2013 HD Sportster Parts Catalog pg 101
77) , 384) , 392) , 408) , 413) , 436) , 443)
2014 HD Sportster Parts Catalog pg 69
78) , 385) , 393) , 409) , 414) , 437) , 444)
2015 HD Sportster Parts Catalog pg 71
86)
1979-1985 HD Sportster Parts Catalog pg 63-65
87)
1986-1990 HD Sportster Parts Catalog pg 61-63
88)
1991-1992 HD Sportster Parts Catalog pg 55-57
89)
1993-1994 HD Sportster Parts Catalog pg 55-57
90)
1995-1996 HD Sportster Parts Catalog pg 55-57
91)
1997 HD Sportster Parts Catalog pg 53-55
92)
1998 HD Sportster Parts Catalog pg 57-59
93)
1999 HD Sportster Parts Catalog pg 61-63
94)
2000 HD Sportster Parts Catalog pg 61-63
95)
2001 HD Sportster Parts Catalog pg 63-65
96)
2002 HD Sportster Parts Catalog pg 63-65
97)
2003 HD Sportster Parts Catalog pg 63-65
98) , 484) , 506) , 605) , 610) , 615) , 624) , 877)
2004 HD Sportster Parts Catalog pg 63
99)
2005 HD Sportster Parts Catalog pg 65-67
100)
2006 HD Sportster Parts Catalog pg 65-67
101)
2007 HD Sportster Parts Catalog pg 65-67
102)
2008 HD Sportster Parts Catalog pg 65-67
103)
2009 HD Sportster Parts Catalog pg 97-99
104)
2010 HD Sportster Parts Catalog pg 95-97
105)
2011 HD Sportster Parts Catalog pg 93-97
106)
2012 HD Sportster Parts Catalog pg 93-97
107)
2013 HD Sportster Parts Catalog pg 103-107
108)
2014 HD Sportster Parts Catalog pg 71-73
109)
2015 HD Sportster Parts Catalog pg 73-75
110)
2016 HD Sportster Parts Catalog pg 73-75
121) , 123) , 125)
1986-1990 HD Sportster Parts Catalog pg 61
122) , 124) , 126)
1991 HD Sportster Parts Catalog pg 55
127) , 129) , 131)
1986-1990 HD Sportster Parts Catalog pg 63
133) , 141) , 454) , 513) , 521) , 568)
1991-1992 HD Sportster Parts Catalog pg 55
139) , 148)
1999 Sportster FSM pg 2-10
152)
2000 HD Sportster Parts Catalog pg 61, 63
153)
2001 HD Sportster Parts Catalog pg 63, 65
154)
2002 HD Sportster Parts Catalog pg 63, 65
155)
2003 HD Sportster Parts Catalog pg 63, 65
156)
2004 HD Sportster Parts Catalog pg 63, 65
158)
2005 HD Sportster Parts Catalog pg 65, 67
159)
2006 HD Sportster Parts Catalog pg 65, 67
160)
2007 HD Sportster Parts Catalog pg 65, 67
161)
2008 HD Sportster Parts Catalog pg 65, 67
162)
2009 HD Sportster Parts Catalog pg 97-101
163) , 654) , 659) , 672) , 675) , 699) , 759) , 763)
2010 HD Sportster Parts Catalog pg 93
164) , 661) , 663) , 673) , 676) , 686) , 689) , 760) , 764)
2011 HD Sportster Parts Catalog pg 93
165)
2012 HD Sportster Parts Catalog pg 93,97
166)
2013 HD Sportster Parts Catalog pg 103, 107
167)
2014 HD Sportster Parts Catalog pg 69, 73
168)
2015 HD Sportster Parts Catalog pg 73,75
169)
2016 HD Sportster Parts Catalog pg 73,75
170) , 814)
2009 HD Sportster Parts Catalog pg 99
171) , 815) , 816) , 820)
2010 HD Sportster Parts Catalog pg 95
172) , 817) , 821)
2011 HD Sportster Parts Catalog pg 95
173) , 818) , 822)
2012 HD Sportster Parts Catalog pg 95
174)
2013 HD Sportster Parts Catalog pg 105
177) , 208) , 229) , 266) , 271) , 824)
HD 1986-1990 Sportster Parts Catalog pg 53
178) , 209) , 230) , 267) , 272) , 825)
1991-1992 HD Sportster Parts Catalog pg 49
179) , 210) , 231) , 268) , 273) , 826)
1993-1994 HD Sportster Parts Catalog pg 49
180) , 211) , 232) , 269) , 274) , 827) , 828) , 830) , 836)
1995-1996 HD Sportster Parts Catalog pg 49
181) , 212) , 233) , 270) , 275)
HD 1986-1990 Sportster Parts Catalog pg 51
182) , 213) , 234) , 276)
1991-1992 HD Sportster Parts Catalog pg 47
183) , 214) , 235) , 277)
1993-1994 HD Sportster Parts Catalog pg 47
184) , 185) , 187) , 215) , 236) , 237) , 239) , 278) , 279) , 292) , 319)
1995-1996 HD Sportster Parts Catalog pg 47
186) , 188) , 238) , 240) , 280) , 293) , 320) , 829) , 831) , 837)
1997 HD Sportster Parts Catalog pg 51
189) , 241) , 281) , 282) , 321)
1998 HD XLH Parts Catalog pg 53
190) , 216) , 242) , 283) , 294) , 322) , 832) , 838)
1998 HD XLH Parts Catalog pg 55
191) , 243) , 284) , 323)
1999 HD Sportster Parts Catalog pg 57
192) , 217) , 244) , 285) , 295) , 324) , 833) , 835) , 839)
1999 HD Sportster Parts Catalog pg 59
193) , 201) , 218) , 245) , 249) , 286) , 296) , 325) , 327) , 840) , 842)
2000 HD Sportster Parts Catalog pg 59
194) , 250) , 287) , 328)
2001 HD Sportster Parts Catalog pg 59
195) , 251) , 259) , 329)
2002 HD Sportster Parts Catalog pg 59
196) , 204) , 221) , 248) , 252) , 260) , 289) , 291) , 299) , 330)
2003 HD Sportster Parts Catalog pg 59
197) , 311)
2004 HD Sportster Parts Catalog pg 59
198) , 253) , 261) , 312)
2005 HD Sportster Parts Catalog pg 61
199) , 254) , 262) , 313)
HD 2006 Sportster Parts Catalog pg 61
200) , 255) , 264) , 265) , 309) , 314) , 317)
HD 2007 Sportster Parts Catalog pg 61
202) , 219) , 246) , 297) , 326) , 841) , 843)
2001 HD Sportster Parts Catalog pg 61
203) , 220) , 247) , 288) , 290) , 298) , 844) , 846)
2002 HD Sportster Parts Catalog pg 61
205) , 223) , 226) , 256) , 301) , 304) , 315) , 849) , 852) , 854) , 857) , 860)
2005 HD Sportster Parts Catalog pg 63
206)
HD 2006 Sportster Parts Catalog pg 63
207) , 258) , 307) , 308) , 310)
HD 2007 Sportster Parts Catalog pg 63
222) , 300) , 848)
2004 HD Sportster Parts Catalog pg 61
224) , 227) , 257) , 263) , 302) , 305) , 316) , 318)
HD 2006 Sportster Parts Catalog pg 63
225) , 228) , 303) , 306)
HD 2007 Sportster Parts Catalog pg 63
331) , 333) , 335) , 338) , 341) , 344) , 361) , 371) , 374) , 416) , 417) , 424) , 429) , 431)
2008 HD Sportster Parts Catalog pg 61
332) , 345) , 353) , 362) , 418) , 430)
2009 HD Sportster Parts Catalog pg 91
334) , 336) , 339) , 342) , 367) , 372) , 375) , 421) , 425) , 432)
2009 HD Sportster Parts Catalog pg 95
346) , 354) , 363) , 419)
2010 HD Sportster Parts Catalog pg 87
386) , 394) , 410) , 415) , 438)
2016 HD Sportster Parts Catalog pg 71
450)
2012 HD Sportster Parts Catalog pg 89
453) , 512) , 520) , 561) , 567)
HD 1986-1990 Sportster Parts Catalog pg 61
455) , 514) , 522) , 569)
1993-1994 HD Sportster Parts Catalog pg 56
456) , 460) , 461) , 515) , 519) , 523) , 527) , 528) , 565) , 570) , 574) , 575) , 598) , 631)
1995-1996 HD Sportster Parts Catalog pg 55
457) , 516) , 524) , 562) , 571) , 866)
HD 1986-1990 Sportster Parts Catalog pg 63
459) , 518) , 526) , 564) , 573) , 868)
1993-1994 HD Sportster Parts Catalog pg 57
462) , 529) , 576) , 599) , 632)
1997 HD Sportster Parts Catalog pg 53
463) , 530) , 577) , 633) , 870)
1997 HD Sportster Parts Catalog pg 55
464) , 531) , 578) , 579) , 634) , 871)
1998 HD XLH Parts Catalog pg 59
465) , 532) , 600) , 635)
1998 HD XLH Parts Catalog pg 57
466) , 491) , 496) , 501) , 533) , 581) , 636)
1999 HD Sportster Parts Catalog pg 61
467) , 534) , 580) , 872)
1999 HD Sportster Parts Catalog pg 63
468) , 472) , 492) , 497) , 502) , 535) , 539) , 582) , 586) , 601) , 606) , 611) , 637) , 641)
2000 HD Sportster Parts Catalog pg 61
469) , 473) , 493) , 498) , 503) , 536) , 540) , 583) , 587) , 602) , 607) , 612) , 638) , 642)
2001 HD Sportster Parts Catalog pg 63
470) , 474) , 478) , 482) , 494) , 499) , 504) , 537) , 541) , 545) , 549) , 584) , 588) , 592) , 596) , 603) , 608) , 613) , 639) , 643)
2002 HD Sportster Parts Catalog pg 63
471) , 475) , 495) , 500) , 505) , 538) , 542) , 585) , 589) , 604) , 609) , 614) , 640) , 644)
2003 HD Sportster Parts Catalog pg 63
476) , 480) , 543) , 547) , 590) , 594)
2000 HD Sportster Parts Catalog pg 62
477) , 481) , 544) , 548) , 591) , 595)
2001 HD Sportster Parts Catalog pg 64
479) , 483) , 546) , 550) , 593) , 597) , 876)
2003 HD Sportster Parts Catalog pg 65
485) , 508) , 551) , 617) , 625) , 878)
2005 HD Sportster Parts Catalog pg 67
486) , 507) , 552) , 557) , 616) , 626)
2005 HD Sportster Parts Catalog pg 65
487) , 553) , 558) , 627)
2006 HD Sportster Parts Catalog pg 65
488) , 510) , 554) , 559) , 619) , 621) , 628)
2007 HD Sportster Parts Catalog pg 65
489) , 509) , 555) , 618) , 629) , 879)
2006 HD Sportster Parts Catalog pg 67
490) , 511) , 556) , 560) , 566) , 620) , 622) , 623) , 630) , 880) , 881)
2007 HD Sportster Parts Catalog pg 67
645) , 649) , 655) , 682) , 694) , 754) , 757) , 761) , 784)
2008 HD Sportster Parts Catalog pg 65
646) , 653) , 656) , 671) , 674) , 683) , 684) , 698) , 758) , 762) , 785)
2009 HD Sportster Parts Catalog pg 97
647) , 650) , 657) , 695) , 755) , 769) , 774) , 779) , 786)
2008 HD Sportster Parts Catalog pg 67
648) , 651) , 658) , 696) , 756) , 770) , 775) , 780) , 787)
2009 HD Sportster Parts Catalog pg 101
652) , 660) , 685) , 697) , 765) , 767) , 771) , 776) , 781) , 798) , 801) , 804)
2010 HD Sportster Parts Catalog pg 97
662) , 664) , 677) , 687) , 690) , 700) , 732) , 733)
2012 HD Sportster Parts Catalog pg 93
665) , 668) , 678) , 688) , 691) , 693) , 702) , 714) , 736) , 737) , 819) , 823)
2013 HD Sportster Parts Catalog pg 103
666) , 669) , 679) , 692) , 704) , 708) , 711) , 715) , 719) , 722) , 725) , 729) , 746) , 748) , 750) , 791) , 795) , 808) , 811)
2014 HD Sportster Parts Catalog pg 71
667) , 670) , 680) , 705) , 709) , 712) , 716) , 720) , 723) , 726) , 730) , 740) , 744) , 747) , 749) , 751) , 788) , 792) , 796) , 809) , 812)
2015 HD Sportster Parts Catalog pg 73
681) , 713) , 717) , 752) , 753) , 789) , 813)
2016 HD Sportster Parts Catalog pg 73
701) , 734) , 735) , 773) , 778) , 783) , 800) , 803) , 806)
2012 HD Sportster Parts Catalog pg 97
703) , 707) , 718) , 721) , 724) , 728) , 738) , 742) , 745) , 790) , 794) , 807) , 810)
2013 HD Sportster Parts Catalog pg 107
706) , 710) , 727) , 731) , 741) , 793) , 797)
2016 HD Sportster Parts Catalog pg 75
739) , 743)
2014 HD Sportster Parts Catalog pg 73
766) , 768) , 772) , 777) , 782) , 799) , 802) , 805)
2011 HD Sportster Parts Catalog pg 97
834)
1998 HD Sportster Parts Catalog pg 55
845) , 847)
2003 HD Sportster Parts Catalog pg 61
850) , 853) , 855) , 858) , 861)
2006 HD Sportster Parts Catalog pg 63
851) , 856) , 859) , 862) , 863) , 864) , 865)
2007 HD Sportster Parts Catalog pg 63
869)
1995-1996 HD Sportster Parts Catalog pg 57
873)
2000 HD Sportster Parts Catalog pg 63
874)
2001 HD Sportster Parts Catalog pg 65
875)
2002 HD Sportster Parts Catalog pg 65
882)
1979-1985 HD Sportster FSM
883) , 884) , 885) , 886)
1986-1990 HD XLH FSM
887) , 888) , 889) , 890)
1991 HD Sportster FSM pg 2-3
891) , 892)
2004 HD Sportster FSM pg 2-2
This website uses cookies for visitor traffic analysis. By using the website, you agree with storing the cookies on your computer.More information
