1958 Sportster

Model Production Numbers

  • XL - Number Produced: 579 1)
  • XLH - Number Produced: 711 2)
  • XLCH - Number Produced: 239 3)
  • XLRTT - Number Produced: 26 4)

Colors

  • Skyline Blue / Birch White 5)
  • Calypso Red / Birch White 6)
  • Sabre Gray Metallic / Birch White 7)
  • Black / Birch White 8)

Vehicle Identification

Frame Numbers

There was no frame identification for purpose of ownership on 1957-1969 model Sportsters.
However, there were stampings on the different parts of the frame combined with certain features that can be used to date the frame.
Click Here to view Ironhead Frame Identification in the Sportsterpedia.

Engine Serial Numbers

The only numbers for the purpose of identification were on the engine case.

  • For 1957-1961 models, the engine serial number is stamped on the left side of the engine case between the two cylinders.
    First 4 or 5 digits are the year and bike model followed by a series of 4 or 5 numbers that established the individual serial number for each bike.

Click Here for more specific information on serial numbers and VINs in the Sportsterpedia.

Engine Serial Number for 1958 Sportsters
Model Year
(first 2 digits)
Model
(next few digits)
(up to 4)
Sequential
Serial#
(remaining digits)
58XL
XLH
XLC
XLCH
(example)
12345
Example: (58XLCH 12345) indicates a 1958 XLCH model and is stamped on the Left Engine Case Between the Cylinders 9)
Example Serial Number on Engine Reads: 58XLCH12345
58 XLCH 12345

Related Manuals and Documentation

Below are some suggestions for manuals for your ride.
You should have, at minimum, a Factory Service Manual (FSM) and a Factory Parts Catalog for your year model.

Factory Service Manuals (FSM);
The FSM will have the most accurate information, procedures and specs.
Clymer and Haynes make service manuals also for Sportsters but some of the information is in error to the factory FSMs.
And some of the information in the aftermarket manuals is vague in information or procedures but they may have more pictures.
So it is generally said you can get use from both an aftermarket manual and the factory service manuals but get the factory manual first.
Click Here to view the Factory Service Manual page in the Sportsterpedia.

Parts Catalogs;
The Parts Catalog has part numbers of course but it also has exploded parts views.
However, IT IS NOT INTENDED TO BE AN ASSEMBLY MANUAL.
And some of the exploded views are confusing or not related to each other on the same pages.
But, all in all, the exploded views do help finding what goes where.
Most of the fasteners listed in the relevant parts catalog individual pages have thread sizes and lengths also in case you need those.
Note: ALL 1957-1978 PARTS CATALOGS LIST PARTS FOR PREVIOUS YEARS.
Below is a simple list of original and “latest edition parts catalogs. The in-between year books may show different part numbers for the same year model bike.
Click Here to see the Factory Parts Catalog page in the Sportsterpedia for parts catalog uses and a full list of parts catalog numbers from 1957 to present.
(complete list of other parts catalogs and supplement catalogs that pertain to each year model on the bottom of that page)
Some often acquire several year model parts catalogs and that page will help you decide which ones are right for you.

Suggested Manuals:

  • Factory Service Manual (FSM):
    • Original: None. The FSM program didn't begin until the 1959 season.
      The 1959 FSM states “Except for minor differences, it also applies to 1957-1958 model Sportsters.
    • Latest Edition: 1959-1969 Sportster Service Manual (99484-69)
  • Factory Parts Catalogs:
    • Original: 1958 Spare Parts Catalog Supplement for all Sportster and K Models (99451-58)
      • Issued November 1, 1957.
      • Lists closest to original parts available for 1958 models and updates changes (only) to the previous full catalog.
      • Click Here to download a PDF from Harley K Model site (1.51mb) 10)
        • Use With: 1957 Spare Parts Catalog for all Sportster and K Models Catalog (99451-57)
          Issued February 15, 1957. Full parts catalog and lists parts available in 1957 for 1952-1957 models.
          Click Here to download a PDF from Harley K Model site (32.2mb) 11)
    • Latest Edition: 1954-1978 Sportster XLH/XLCH-1000 Parts Catalog (99451-78B)
      • Issued in 1989.
      • Full catalog and lists parts available in 1989 for 1954-1978 models.
      • Includes some parts that were not available in the -78A catalog.
  • Factory Owners Manual:
    • 1958 Sportster Rider Handbook (99466-58)

Pics of Manual Covers.
Below are pics of used manual covers (original and latest editions) related to 1958 model Sportsters.
See the full list of pertinent catalogs in the link above.
Click on any pic below to enlarge:

1958 Rider Handbook
(99466-58)
1959 FSM (99484-59) 12)
loose leaf inside and outside covers (original)
1959-1969 FSM (99484-69)
book bound cover (latest)
1952-1957
Parts Catalog (99451-57)
1952-1958 Parts
Catalog Supplement (99451-58)
1954-1978
Parts Catalog (99451-78B)

The Ironhead Multi-Year Parts Catalog Curse

Below is a summary of an article on the Sportsterpedia Parts Catalogs page regarding parts book errors.
You can also read the full article from this link: The Ironhead Multi-Year Parts Catalog Curse.
Due to all of the errors and non corrected editions, it's always a good idea to acquire several year parts catalogs surrounding your year model.
Which year catalogs you'll need will depend on many factors but the main Parts Catalog page in the Sportsterpedia will help you decide which ones you need.
Click Here to see the Parts Catalog page. A full chart of all the parts catalogs made for Ironheads is at the bottom of the page.

  • Not all multi-year catalogs will list factory installed parts on your bike.
  • You may need several year catalogs to determine factory installed parts for your year model.
  • Some parts first appeared or only appeared in Parts Supplements, Service Bulletins or other literature
  • Later catalogs may show parts for older models that were never factory installed on them.
  • Some catalogs have missing parts and/or missing models in some parts listings.
  • Some illustrations do not have a part number listed.
  • Drawings may or may not look like your part number.
  • Some exploded parts diagrams show the assembly in the wrong order or missing pieces.
  • There may be misleading information about parts that fit your year model.
  • Fastener lengths and thread pitch may change depending on catalog used.
  • The MoCo knew about and tried to correct at least some of the parts catalog mistakes.

Search the Sportsterpedia

See the Navigation menu on the upper left of this page.
From there you can go to the main Ironhead section menu, the Reference section for general and in-depth procedures, and the Misc Resources for documentation.

Illustrations

The following illustrations are displayed for historic and period specific parts identification only. Refer to the original OEM documents for additional information. 13)
Click on any illustration below to enlarge.

General dimension drawing for 1957-1965 XLH / XLCH frames:
This is a “short frame”. Dims shown are 1957-1966 (all) and 1967-1969 XLCH. 14)

15)

Specifications

Click Here for the main technical menu in the Sportsterpedia.
Also see the “Misc Resources” section on the bottom of that page for technical docs and information.

Model Designations

  • XL, XLH, XLCH

Dimensions

  • Wheelbase: 16)
    • XL/XLH, 56.5 in / 143.51 cm
    • XLCH, 57 in / 144.78 cm
  • Overall Length:
    • XL/XLH, 87 in / 220.98 cm
    • XLCH, 83.25 in / 211.45 cm
  • Overall Width:
    • XL/XLH 34 in / 86.36 cm
    • XLCH, 29.5 in / 74.93 cm
  • Overall Height:
    • XL/XLH, 40-1/2 in / 103 cm
    • XLCH, 42 in / 106.7 cm
  • Saddle Height:
    • XL/XLH, 26-7/8 in to 29 in / 68.26 cm to 73.66 cm
    • XLCH, 30 in / 76.2 cm
  • Road Clearance:
    • 2-1/2 in to 4-5/8 in / 6.35 cm to 11.74 cm

Engine

  • Engine type: 4 cycle Overhead Valves, 45 degree V2 17)
  • Hemi-spherical style heads
  • Displacement: 53.9 ci / 883 cc (900 cc advertised)
  • Compression Ratio:
    • XL 7.5:1
    • XLH, XLCH 9:1
  • Bore: 3 in / 76.2 mm
  • Stroke: 3.8125 in / 96.8 mm
  • Horsepower:
    • XL 42 @ 5,500 rpm
    • XLH, XLCH 55 @ 6,300rpm 18)
  • Taxable Horsepower: 7.2
  • Torque:
    • XL 48 ft/lb @ 3.600 RPM
    • XLH, XLCH 52 ft-lb @ 3800 RPM
  • Weight:
    • XLCH - 188lbs.
    • XL, XLH - 204 lbs.
  • 4 Cams
  • Gear driven type oil pump.
    Oil pump pressure (gauge mounted in place of oil pressure switch):
    • Idle, with spark retarded (Min: 3-7 psi)
    • Normal riding conditions: 10-14 psi (6 psi at 20 mph)
  • XL, XLH Ignition: Battery Ignition System (circuit breaker/points/timer/distributor)
    • Point Gap: .020”
  • XLCH Ignition: Magneto Ignition System
    • Point Gap: .015”
  • Dwell: 90° at 1000 RPM
  • Ignition Timing
    • Advanced - XL, XLH, XLCH: 45° (11/16“) BTDC
    • Retarded - XL, XLH: 15° (5/64”) BTDC
  • Spark Plugs
    • #4 for everyday use.
    • #5 for hard service.
      • Gap
        • XL / XLH: .025“-.030”
        • XLCH: .020“
  • Fuel System: Linkert DC carburetor.
  • Starter (all): Kick start only

Capacities

  • Fuel Capacity: 19)
    • XL, XLH 4.1 gal / 15.52 l 20)
    • XLCH 2.25 gal / 8.51 l
  • Oil Capacity: 3 qts. / 2.83 l
  • Transmission Capacity: 1.5 pints / .71 l

Clutch

  • Multi-Disc dry clutch-pack with alternate steel and fiber friction plates.21)

Drivetrain

  • Constant Mesh - right side foot shift 22)
  • Speeds - 4 Forward
  • Number of Sprocket Teeth
    • XL/XLH:
      • Engine: 34
      • Clutch: 59
      • Transmission: 21
      • Rear Wheel: 51
    • XLCH:
      • Engine: 34
      • Clutch: 59
      • Transmission: 20
      • Rear Wheel: 51
  • Standard Gear Ratios (XL,XLH)
    • 1st: 10.63 to 1
    • 2nd: 7.69 to 1
    • 3rd: 5.82 to 1
    • 4th: 4.21 to 1
  • Standard Gear Ratios (XLCH)
    • 1st: 11.16:1
    • 2nd: 8.08:1
    • 3rd: 6.11:1
    • 4th: 4.42:1

Tires

Tire pressure (based on a rider weighing app. 150 lbs or more).
For each 50 lbs of overload, increase rear tire pressure by 2 lbs, front by 1 lb 23) but not exceeding manuf max tire pressure.

  • XL / XLH:
    • Front: 3.50 x 18 (tire pressure: 14 psi / .96 bar)
    • Rear: 3.50 x 18 (tire pressure: 18 psi / 1.24 bar)
  • XLCH:
    • Front: 3.25 / 3.50 x 19 (tire pressure: 14 psi / .96 bar)
    • Rear: 4.0 x 18 (tire pressure: 18 psi / 1.24 bar)

Models

XL

XLC

  • Both the XLC and XLCH had: 24)
    • Larger ports and valves
    • High domed pistons
    • Light ended tappets
    • Magneto ignition

XLCH

  • Both the XLC and XLCH had: 25)
    • Larger ports and valves
    • High domed pistons
    • Light ended tappets
    • Magneto ignition

XLH

  • In 1958, the XLH was introduced with: 26)
    • Higher compression and larger valves
    • Camshaft gears became integrated with the camshafts, eliminating the need for a woodruff key.
    • Drive gearshaft was enlarged .125 in.
    • Drive gear and second gear support shaft was enlarged .125 in and had 8 splines (instead of 6).
    • Choke control lever moved from left side to the air cleaner.
    • Heavier clutch cover and new gasket.
    • New oil resistant clutch hub seal and gearshaft o-ring.
    • Two brush generator.
    • Optional turn signals and 1 in over suspension.

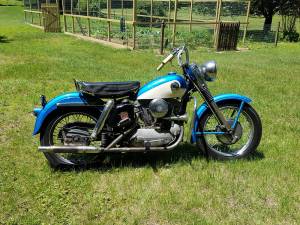

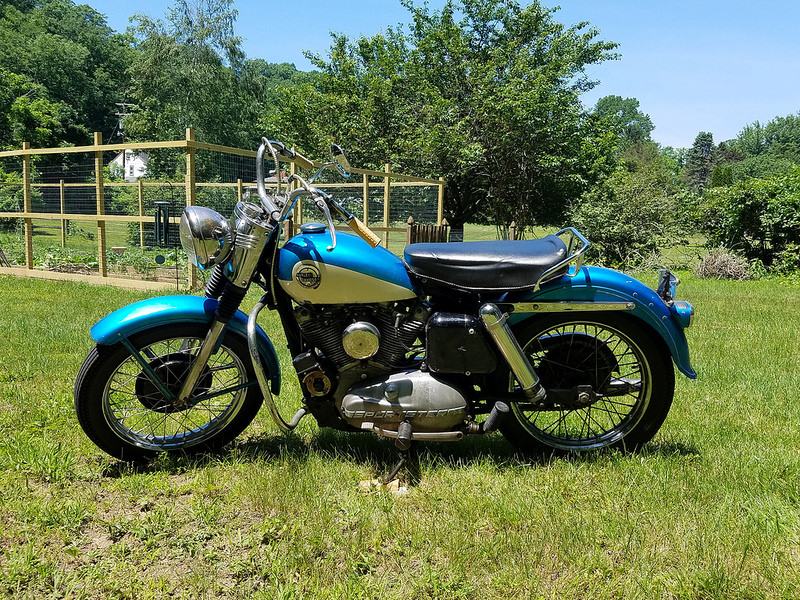

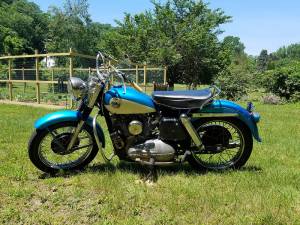

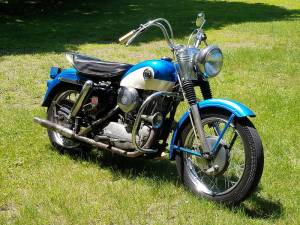

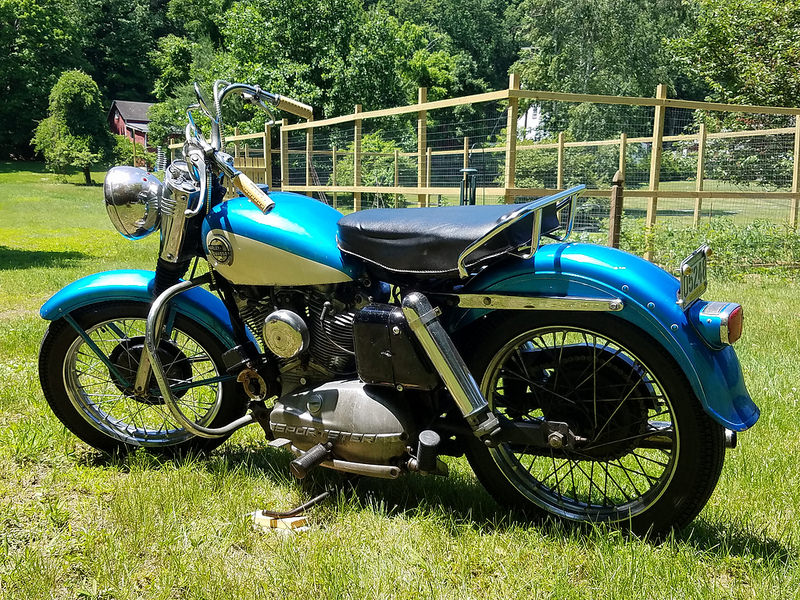

1958 XLH 27)
