2016 Sportster

Engine, Drivetrain, Performance

1200

Engine

  • Air Cooled, Evolution®
  • Bore: 3.5 in. / 88.9 mm
  • Stroke: 3.811 in. / 96.8 mm
  • Displacement: 73.4 cubic in. / 1202 cc
  • Compression Ratio: 10:01
  • Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain

  • Primary Drive: Chain, 38/57 ratio
  • Gear Ratios (overall)
    • 1st: 9.315
    • 2nd: 6.653
    • 3rd: 4.948
    • 4th: 4.102
    • 5th: 3.517

Performance

  • Engine Torque Testing Method: J1349
  • Engine Torque: 70.8 ft-lb / 96 Nm
  • Engine Torque (rpm): 3500
  • Lean Angle, Right (deg.): 26.2
  • Lean Angle, Left (deg.): 28.3
  • Fuel Economy, Combined City/Highway: 48 MPG - 4.9 L/100 KM

883

Engine

  • Air Cooled, Evolution®
  • Bore: 3 in. / 76.2 mm
  • Stroke: 3.811 in. / 96.8 mm
  • Displacement: 53.9 cubic in. / 883 cc
  • Compression Ratio: 09:01
  • Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain

  • Primary Drive: Chain, 34/57 ratio
  • Gear Ratios (overall)
    • 1st: 10.41
    • 2nd: 7.436
    • 3rd: 5.531
    • 4th: 4.584
    • 5th: 3.931

Performance

  • Engine Torque Testing Method: J1349
  • Engine Torque: 53.8 ft-lb / 73 Nm
  • Engine Torque (rpm): 3750
  • Lean Angle, Right (deg.): 27
  • Lean Angle, Left (deg.): 28
  • Fuel Economy, Combined City/Highway: 51 MPG - 4.6 L/100

Models

SuperLow®

  • Vivid Black:$8499
  • Color Option: $8849
  • Two Tone Option: $9049
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $360

Dimensions

  • Length: 87.6 in. / 222.5 cm
  • Seat Height, Laden: 25.5 in. / 64.8 cm 1)
  • Seat Height, Unladen: 27.4 in. / 69.5 cm
  • Ground Clearance: 3.9 in. / 10 cm
  • Rake (steering head) (deg): 31.1
  • Trail: 5.4 in.
  • Wheelbase: 59.1 in. / 150 cm
  • Tires, Front: 120/70 ZR-18 59W
  • Tires, Rear: 150/60 ZR-17 66W
  • Fuel Capacity: 4.5 gal. / 17 l
  • Oil Capacity(with filter): 2.8 qts. / 2.6 l
  • Weight, As Shipped: 537 lbs. / 244 kg
  • Weight, In Running Order: 565 lbs. / 256 kg

Colors

  • Crushed Ice Pearl / Frosted Teal Pearl
  • Velocity Red Sunglo
  • Superior Blue
  • Vivid Black

Wheel Options

  • Black Split 5 Spoke with Machined Rim

Iron 883®

  • Color Option: $8849
  • Hard Candy Color Option: $9299
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $360

Dimensions

  • Length: 85.8 in. / 218 cm
  • Seat Height, Laden: 25.7 in. / 65.3 mm
  • Seat Height, Unladen: 28.9 in. / 73.5
  • Ground Clearance: 4.3 in. / 11 cm
  • Rake (steering head) (deg): 30
  • Trail: 4.6 in. / 11.7 cm
  • Wheelbase:59.6 in. / 151 cm
  • Tires, Front: 100/90B19 57H
  • Tires, Rear: 150/80B 77H
  • Fuel Capacity: 3.3 gal. / 12.5 l
  • Oil Capacity(with filter): 2.8 qt. / 2.6 l
  • Weight, As Shipped: 540 lb. / 245 kg
  • Weight, In Running Order: 562 lb. / 255 kg

Colors

  • Olive Gold
  • Hard Candy Gold Flake
  • Charcoal Denim
  • Black Denim

Wheel Options

  • Black 9 Spoke with Machined Highlights

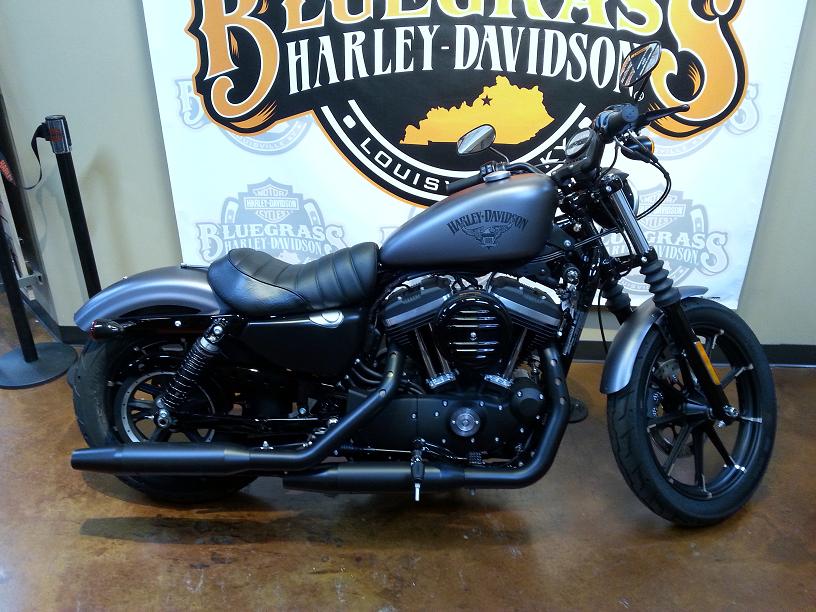

883N

2)

  • 2016 883N

1200 Custom

  • Vivid Black: $10,889
  • Color Option: $11,249
  • Two Tone Option: $11,449
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $360

Dimensions

  • Length: 87.6 in. / 2225 mm
  • Seat Height, Laden: 26.6 in. / 67.6 cm
  • Seat Height, Unladen: 28 in. / 71 cm
  • Ground Clearance: 4.3 in. / 11 cm
  • Rake (steering head) (deg): 30
  • Trail: 4.2 in. / 10.7 cm
  • Wheelbase: 59.8 in. / 152 cm
  • Tires, Front: 130/90B16 73H
  • Tires, Rear: 150/80B16 7H
  • Fuel Capacity: 4.5 gal. / 17 l
  • Oil Capacity(with filter): 2.8 ate. / 2.6 l
  • Weight, As Shipped: 559 lbs. / 254 kg
  • Weight, In Running Order: 587 lbs. / 266 kg

Colors

  • Mysterious Red Sunglo / Velocity Red Sunglo
  • Deep Jade Pearl / Vivid Black
  • Amber Whiskey / Vivid Black
  • Superior Blue
  • Charcoal Pearl
  • Vivid Black

Wheel Options

  • Chrome 5 Spoke Cast Aluminum
  • Black Contrast Cut 5 Spoke Cast Aluminum
  • Steel Laced
  • Black Steel Laced

Seventy-Two®

  • Color Option: $11,099
  • Hard Candy Option: $11,849
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $360

Dimensions

  • Length: 89.6 in. / 227.5 cm
  • Seat Height, Laden: 26.9 in. / 68.3 cm
  • Seat Height, Unladen: 28.5 in / 72.4 cm
  • Ground Clearance: 5.2 in. / 13.2 cm
  • Rake (steering head) (deg): 30.1
  • Trail: 5.3 in. / 13.5 cm
  • Wheelbase: 60.6 in. / 154 cm
  • Tires, Front: MH90-21 54H
  • Tires, Rear: 150/80B16 71H
  • Fuel Capacity: 2.1 gal. / 7.9 l
  • Oil Capacity(with filter): 2.8 qt. / 2.6 l
  • Weight, As Shipped: 546 lb. / 248 kg
  • Weight, In Running Order: 559 lb. / 253 kg

Colors

  • Charcoal Denim
  • Hard Candy Gold Flake
  • Hard Candy Black Gold Flake
  • Black Denim
  • Black Quartz

Wheel Options

  • Chrome Steel Laced with Custom Whitewall Tires

Forty-Eight®

  • Starting Price: $11,199
  • Color Option: $11,549
  • Hard Candy Color Option: $11,649
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $306

Dimensions

  • Length: 85 inches / 215.9 CM
  • Seat Height, Laden: 26.2 inches / 66.5 CM
  • Seat Height, Unladen: 27.3 inches / 69 CM
  • Ground Clearance: 3.9 inches / 9.9 CM
  • Rake (steering head) (deg): 30.2
  • Trail: 5.3 inches / 13.4 CM
  • Wheelbase: 59.3 inches / 150.6 CM
  • Tires, Front: 130/90B16 73H
  • Tires, Rear: 150/80B16 7H
  • Fuel Capacity: 2.1 Gal / 7.94 L
  • Oil Capacity(with filter): 2.8 Qts / 2.64 L
  • Weight, As Shipped: 538 lbs / 244 KG
  • Weight, In Running Order: 551 lbs / 249 KG

Colors

  • Olive Gold
  • Hard Candy Cancun Blue Flake
  • Hard Candy Gold Flake
  • Velocity Red Sunglo
  • Billet Silver
  • Vivid Black

Wheel Options

  • Wheel Type:
    • Black Split 9 Spoke with Machined Highlights

SuperLow® 1200T

  • Vivid Black: $11,799
  • Color Option: $12,149
  • Two Tone Option:$12,349
  • Security Option: $395
  • ABS Option: $795
  • California Emissions: $100
  • Freight: $360

Dimensions

  • Length: 87.6 in. / 222.4 cm
  • Seat Height, Laden: 26.13 in. / 66.37 cm
  • Seat Height, Unladen: 27.7 in. / 70.23 cm
  • Ground Clearance: 4.2 in. / 10.67 cm
  • Rake (steering head) (deg): 31.1
  • Trail: 5.7 in. / 14.5 cm
  • Wheelbase: 59.1 in. / 150 cm
  • Teardrop Fuel Tank w / Fuel Capacity: 4.5 gal. / 17 l
  • Oil Capacity(with filter): 2.8 qt. / 2.6 l
  • Weight, As Shipped: 573 lb. / 260 kg
  • Weight, In Running Order: 599 lb. / 272 kg

Colors

  • Cosmic Blue Pearl
  • Purple Fire / Blackberry Smoke
  • Billet Silver / Vivid Black
  • Deep Jade / Vivid Black
  • Velocity Red Sunglo
  • Black Quartz
  • Vivid Black

Wheel Options

  • Wheel Type: 3)
    • Front: Black/Silver, Split 5-Spoke Cast Aluminum 4)
    • Rear: Black/Silver, Split 5-Spoke Cast Aluminum 5)
    • Both with Machined Highlights

Tires

  • Front: 120/70 ZR-18 59W 6)
  • Rear 150/70 ZR-17 69W 7)

Brakes

  • Caliper Type Dual-Piston front and rear 8)

Engine

  • Air-cooled, Evolution® 9)
  • Bore: 3.5 in.
  • Stroke: 3.811 in.
  • Displacement: 73.4 cu in (1,202 cc) 10)
  • Compression Ratio: 10:01
  • Fuel System: Electronic Sequential Port Fuel Injection (ESPFI)

Drivetrain

  • Transmission: 5-speed constant mesh
  • Primary Drive: Chain, 38/57 ratio 11)
  • Gear Ratios (overall) 12)
    • 1st: 9.315
    • 2nd: 6.653
    • 3rd: 4.948
    • 4th: 4.102
    • 5th: 3.517

Exhaust

  • Closed Loop Exhaust System 13)

Performance

  • Engine Torque Testing Method: J1349 14)
  • Engine Torque: 70.8 ft-lb 15)
  • Engine Torque: 3,500 RPM 16)
  • Lean Angle (R) 25º 17)
  • Lean Angle (L) 26º 18)
  • MPG: Combined City / Hwy 48 mpg 19)

Electric

  • Lights and lighting: High beam, neutral, low oil pressure, turn signals, engine diagnostics, low fuel warning, low battery, security system (optional) 20)
  • Gauges: Handlebar-mounted electronic speedometer with odometer, time-of-day clock on odometer, dual trip-meter, low fuel warning light, low oil pressure light, engine diagnostics readout, LED indicator lights, gear and rom indicator. 21)

Harley Davidson 2016 Sportster Webpage.

Back to Sportster History Index

1)
All laden seat height measurements on this page reflects 180 lb. (81.7 kg) operator weight
2)
Photo by Murgatroy of the XLFORUM https://www.xlforum.net/
3) , 4) , 5) , 6) , 7) , 8) , 9) , 11) , 12) , 13) , 14) , 15) , 16) , 17) , 18) , 19) , 20) , 21)
http://www.eastsideharley.com/Pre-Owned-Inventory-2016-Harley-Davidson-XL1200T-Sportster-SuperLow-1200T-Bellevue-Washington-3845580
10)
http://www.cc-cycle.com/2016-harley-davidson-xl1200t-superlow-1200t---custom-color-option-inventory.htm?id=22611939
