REF: Body Parts - Sub-51A

Custom Luggage Rack

Article by Redbeard2 of the XLforum 1)

Custom luggage racks create a one of a kind look to your bike. The possibilities are endless once you pour some creativity into it.
Below are pics of custom luggage racks to give you some perceptive on building your own.
Click on a pic to enlarge:

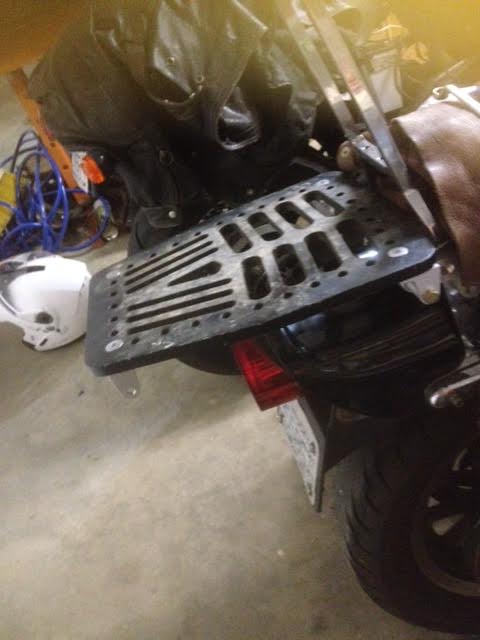

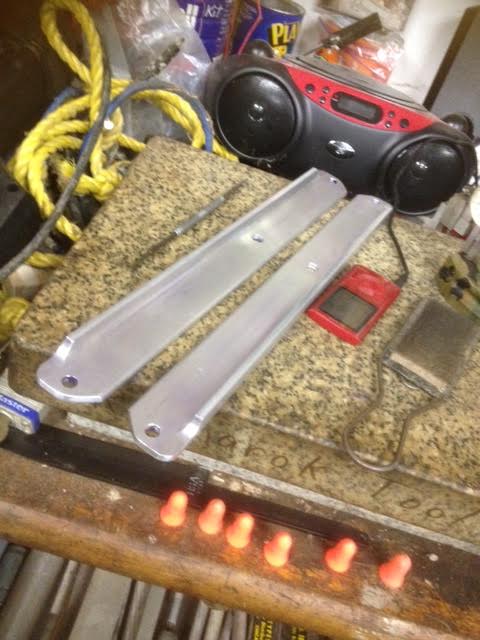

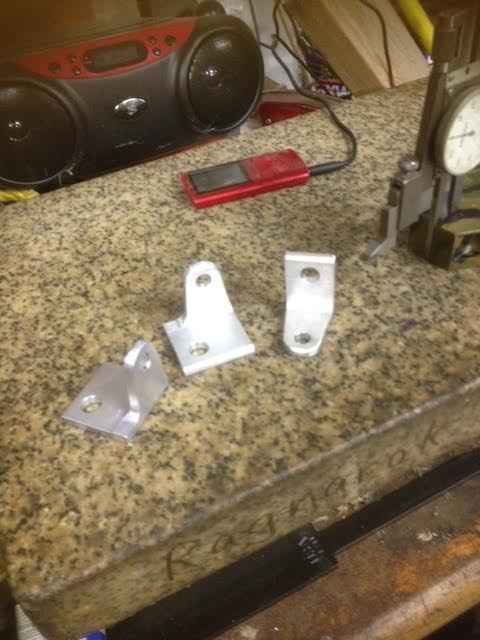

Starting with a one off used aluminum rack 2)Fabricate some 1/2“ 6061 aluminum brackets 3)Add some 1-1/2” x 1/2“ 6061 aluminum struts 4)

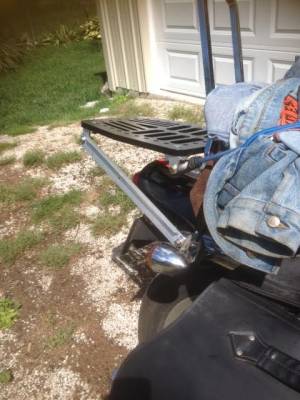

Measure, measure, measure then paint 5)Model to check fitment / look……………………………………..6)

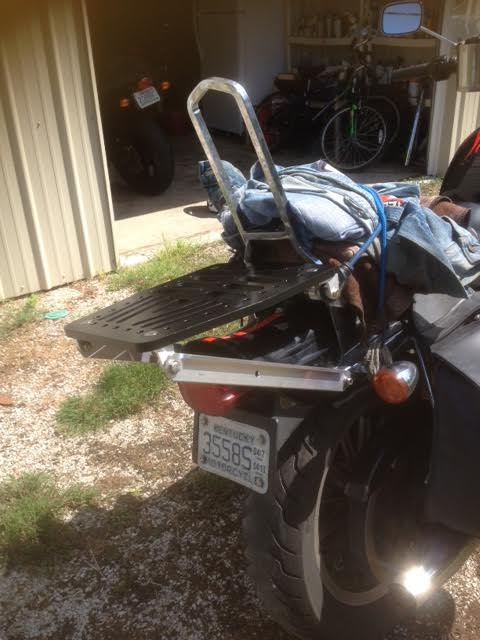

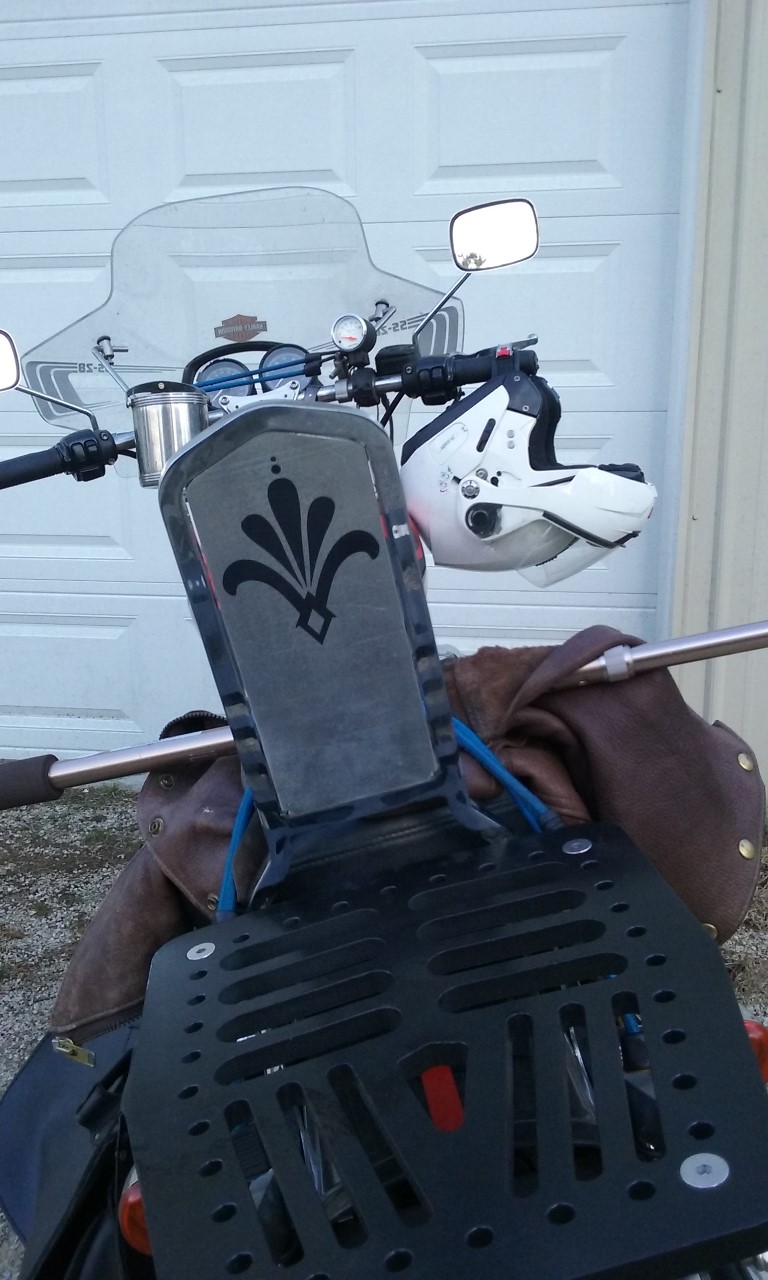

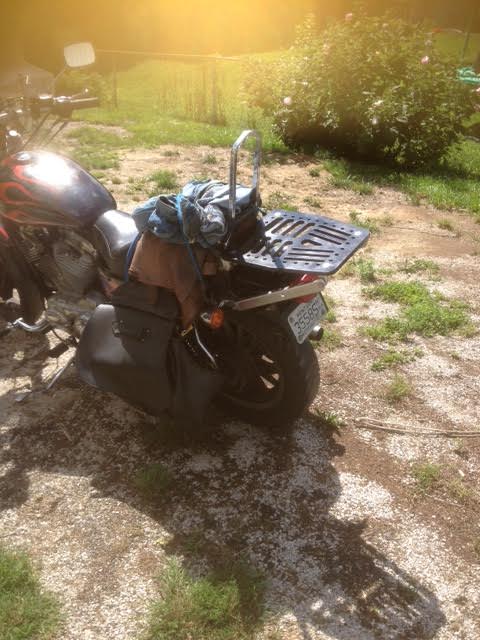

Tighten it all down 7)Model some more 8)Add an aluminum 6061 insert into the sissybar
(laser etched) to match the rack 9)
