Pics and Info of Speedometers and Tachometers Per Year Model
See also in the Sportsterpedia;
*……………….. Ironhead - Stock Wiring Schematic Drawings (created with reference to the OEM manual)
*……………….. Ironhead - Simplified (Customized) Wiring Schematics

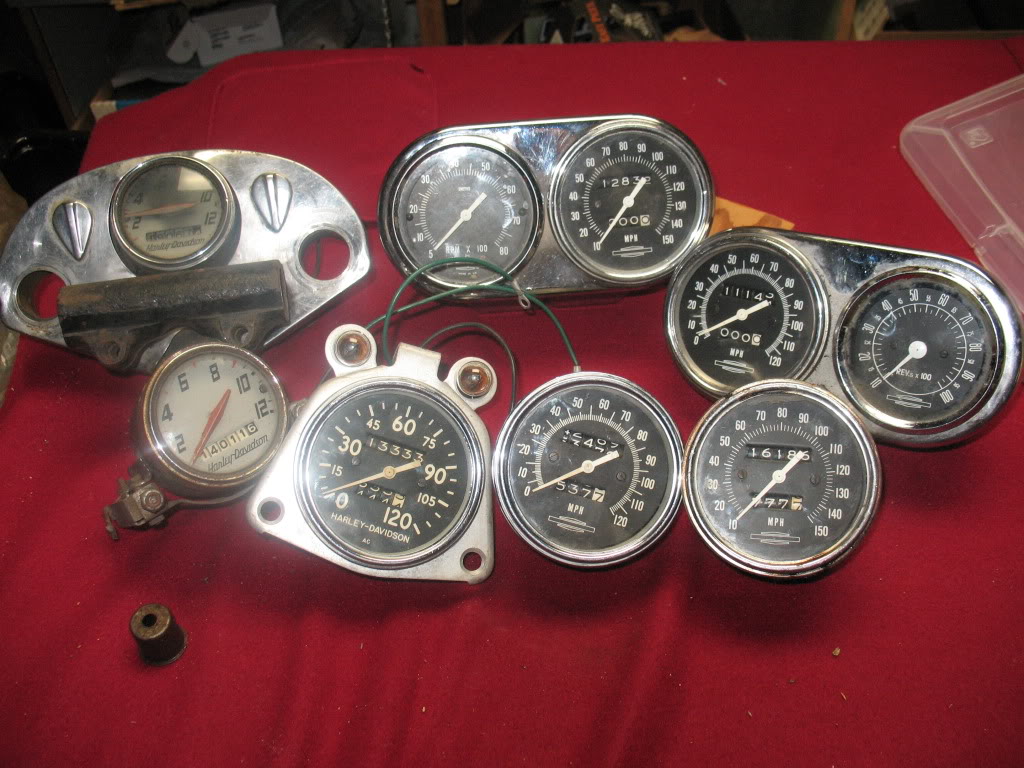

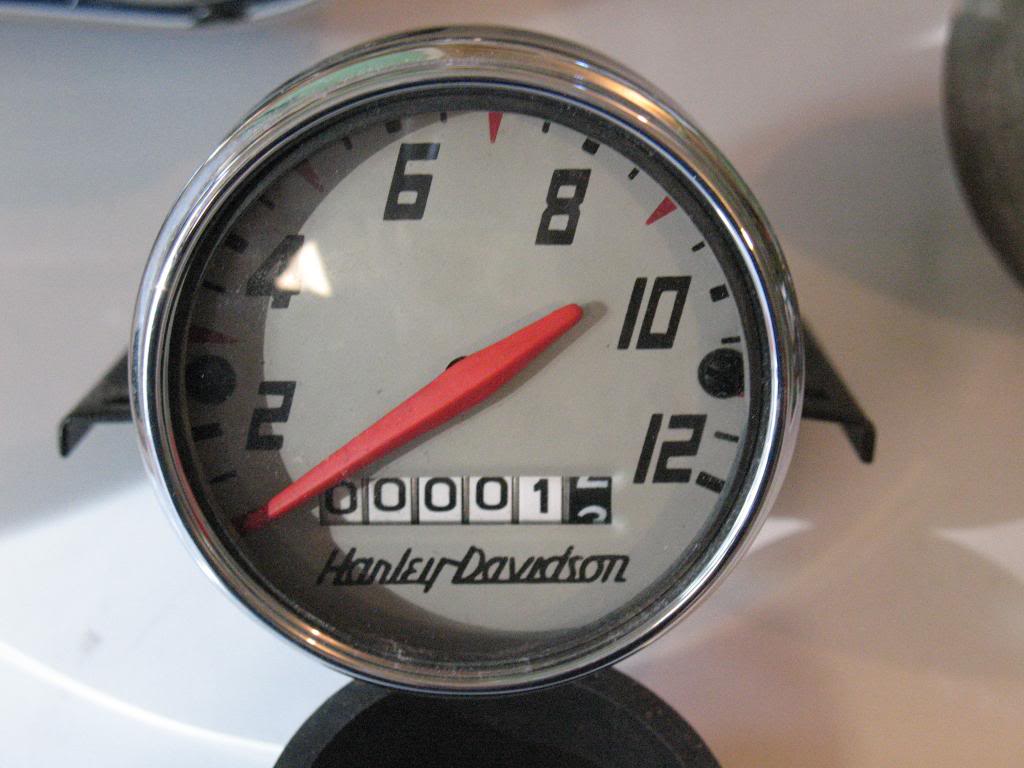

Sportster gauges from 1957-1969 1) | Here is the speedometer (67007-54A) used on 1955-1956 KH and 1957 and 1958 Sportsters (except C and H models). The “flippers” hide key switches for the ignition and lights. 2) | This A-C speedometer (67007-59), manufactured by United Motors 3), was used from 1959 to 1964 on both the XLH and XLCH models. The bracket shown here is for the XLH; it fits under the locomotive nacelle and the trip odometer cable and knob comes through the nacelle back panel. The XLCH models had a different bracket with the odometer reset cable knob mounting next to the speedo face. 4) |

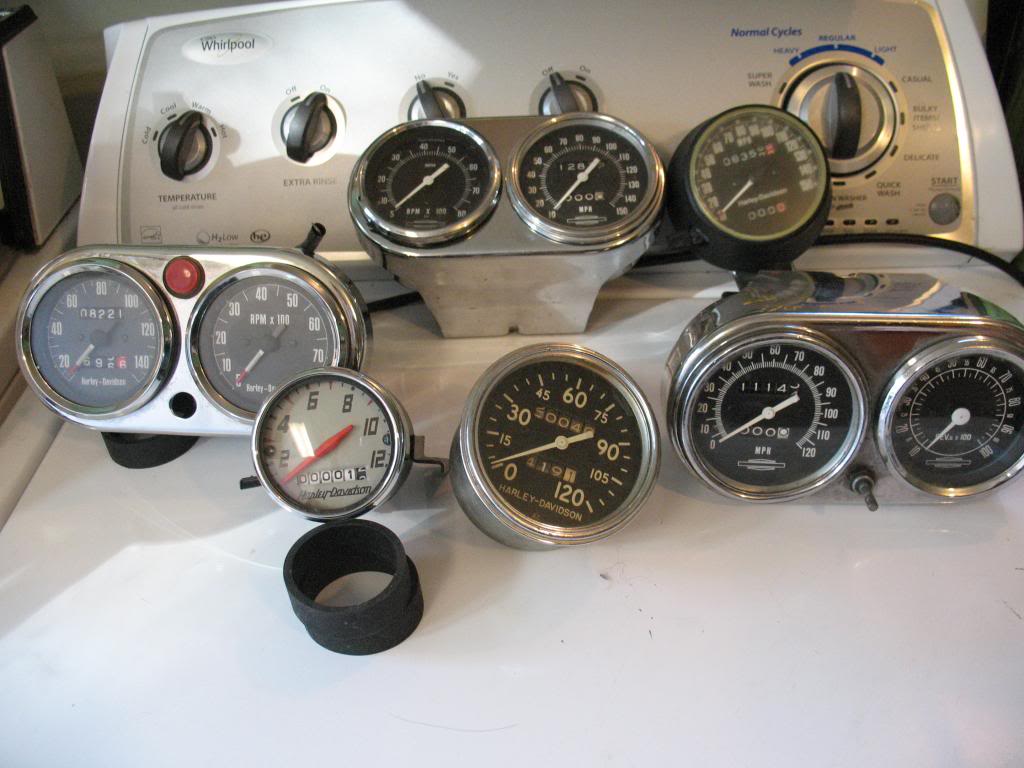

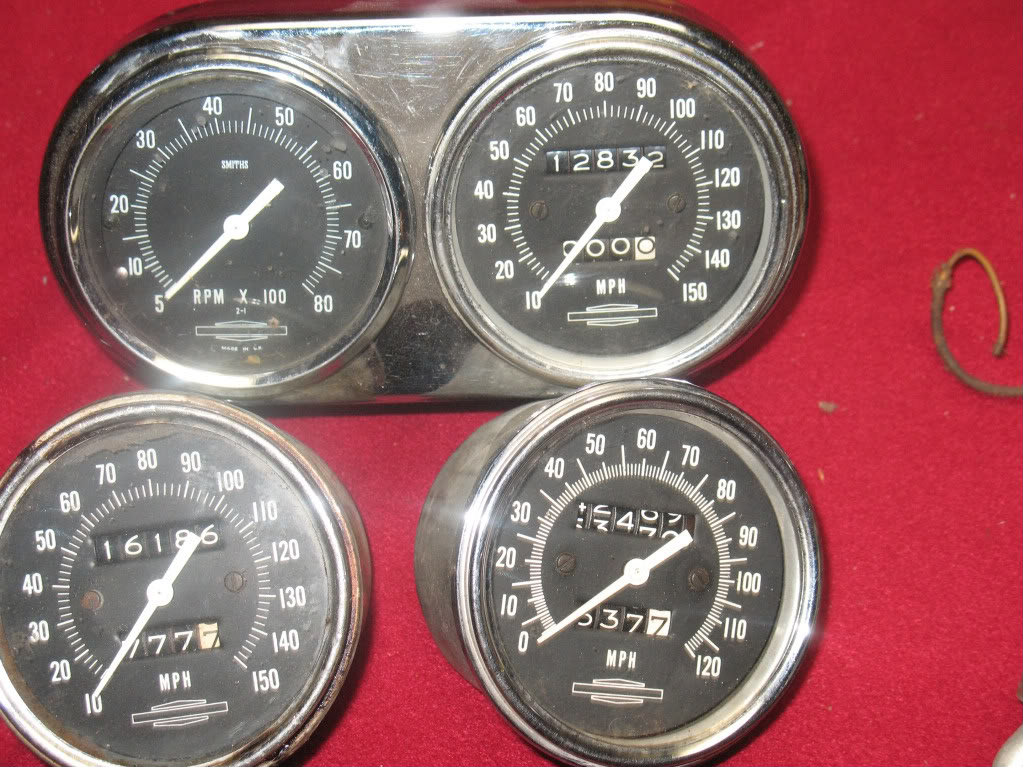

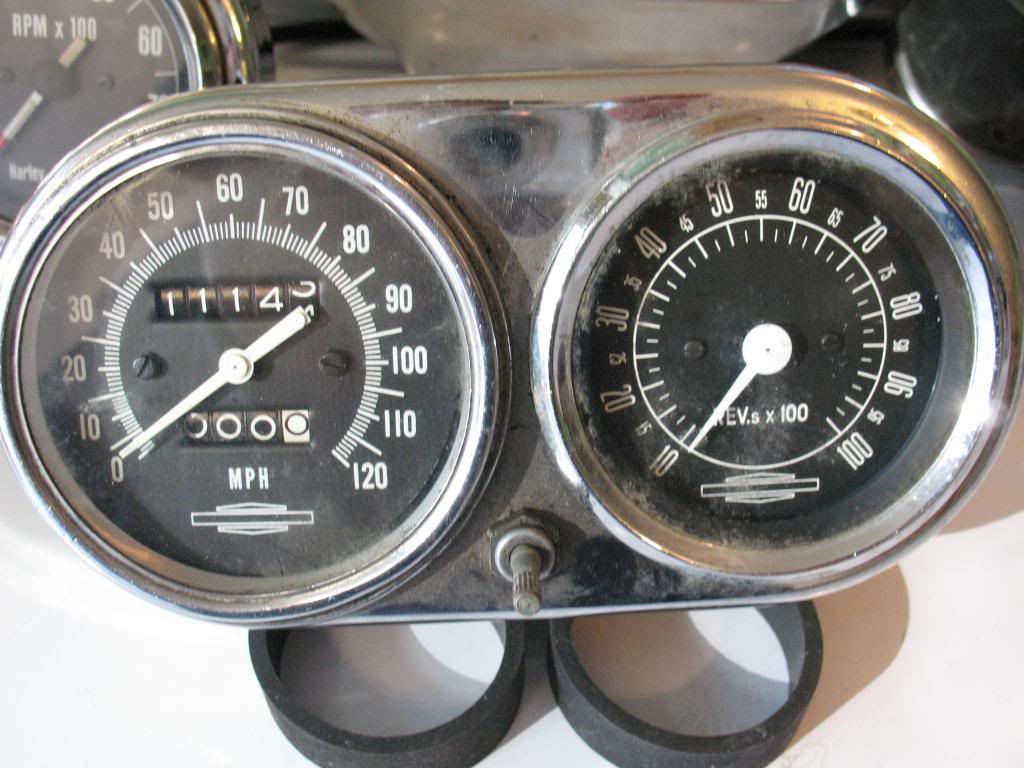

The so-called Smiths gauges were introduced with the 1965 models. Although the tach was, in fact, built by Smiths, the speedo was still made by AC and is identical to the earlier Speedometer except for the fact. The 120 MPH version (lower right) was used from 1965 to 1967. The 150 MPH version was introduced in 1968 in celebration of a factory tuned Sportster going 150 mph on the Bonneville salt flats. 5) | Here are all of them until at least 1978. 6) | Sportster 1957-1958 (67007-54A) used on 1955-1956 KH and 1957 and 1958 Sportsters (except C and H models)7) 8) |

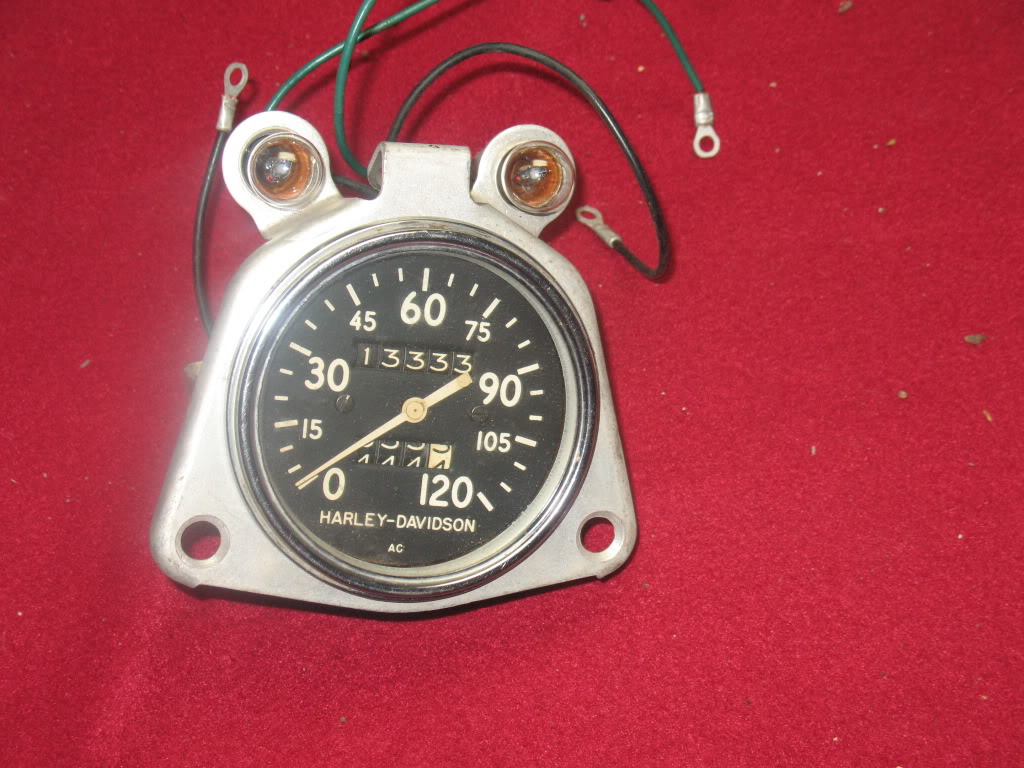

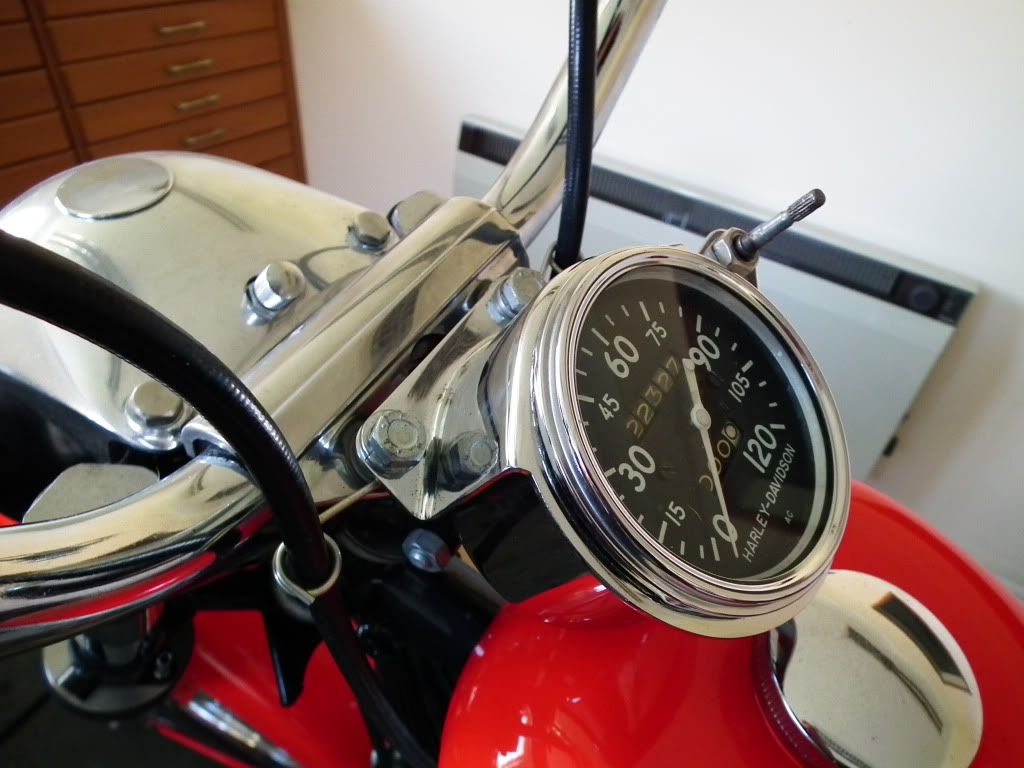

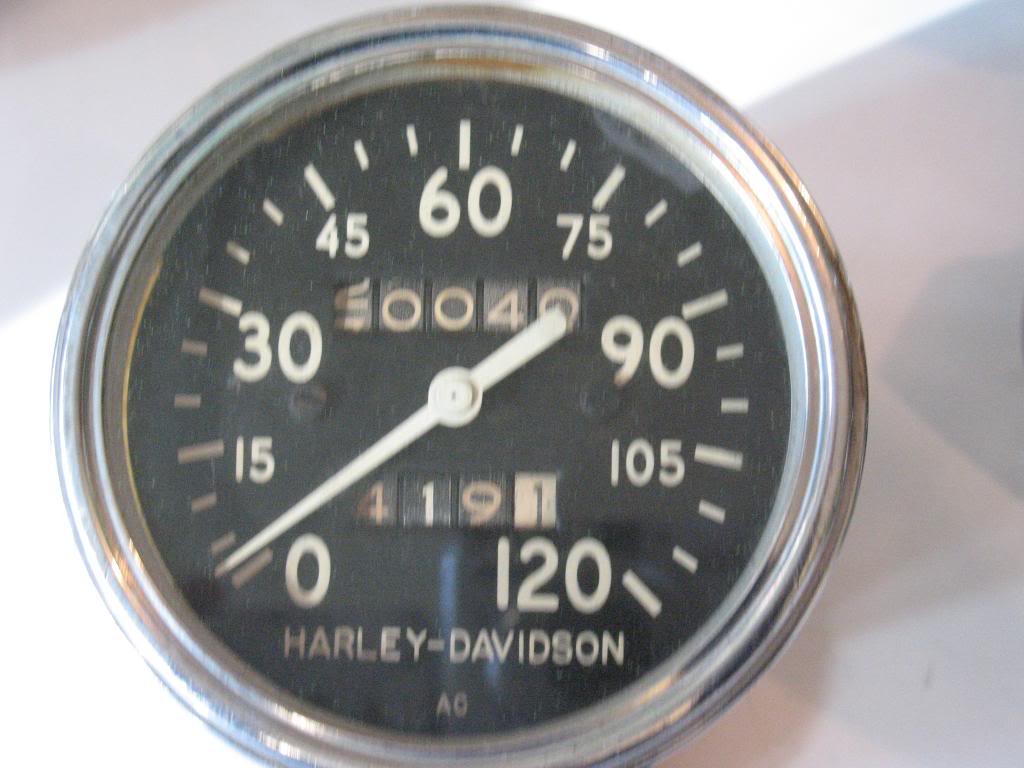

1959-1964 (67007-59) XLH & XLCH | 1959-1964 Speedo w/ XLCH bracket 9) | 1965-1967 (67007-59A) XLH & XLCH Replacement speedometer for 1959-1964 10) 11) |
1971 XLCH 12) |

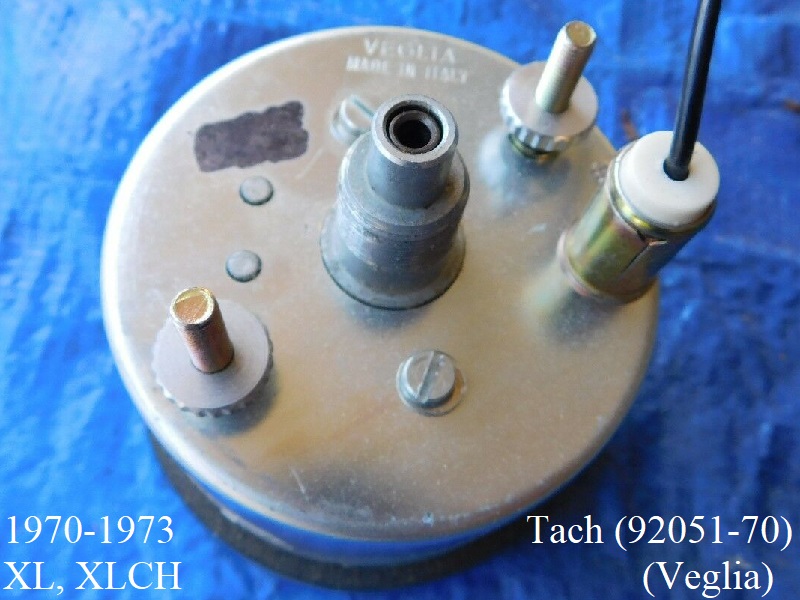

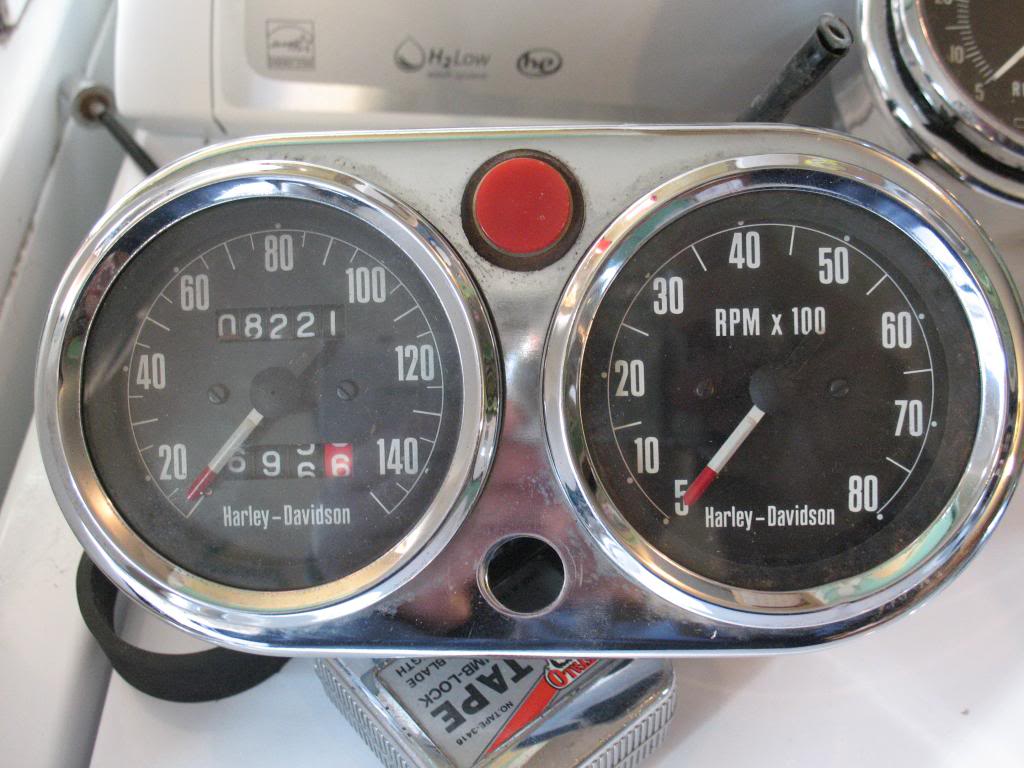

1970-1973 XL/XLCH
1970-1985 Speedometers and Tachs
Speedometer (74-85)
In 1974, the MoCo started using Nippon Seiki (Japan) gauges. There were three different part numbers used on Sportsters from 74-79 all having a range to 150 MPH.

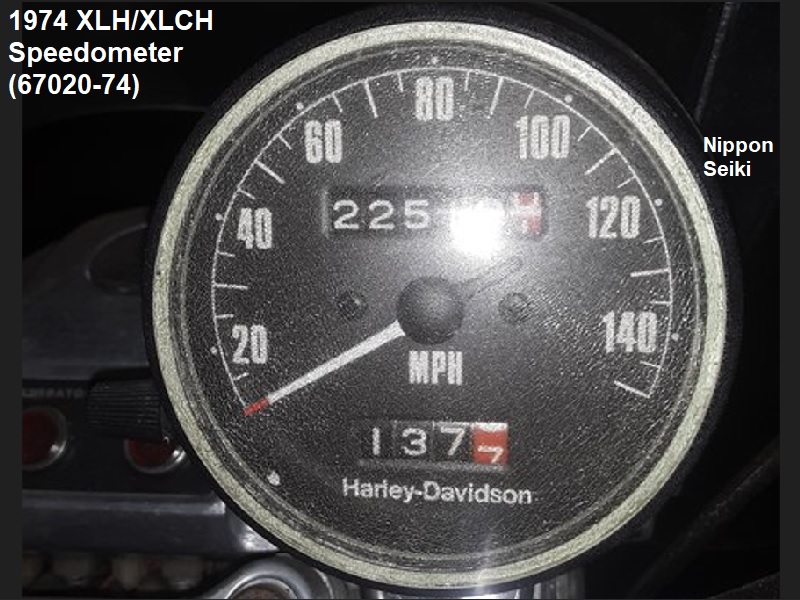

1974 (67020-74) was replaced in 1975 by (67020-74A) which was replaced with the 1979 gauge (67020-74B). All three retro back to 1974.
It appears the 74 only version had a red and a black wire whereas the other two only had a red wire.
The red wire is for the night light and the black wire (ground), if available, goes to the bracket.

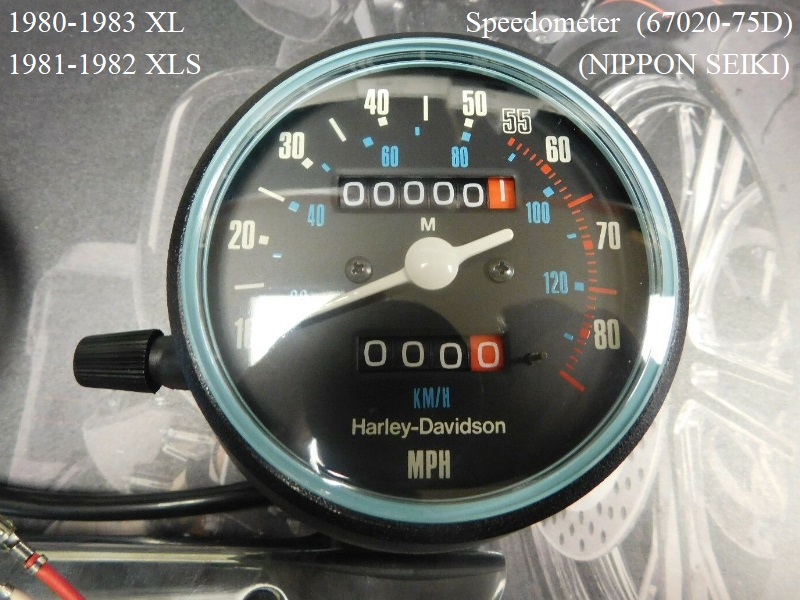

1980-1983 XL, 1981-1982 XLS mechanical speedometer (67020-75D). Has 1 red wire for illumination.
This unit was also a replacement for 1974-1978 XLH, XLCH.
15)
Tachometer (70-73)

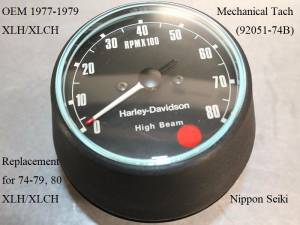

Tachometer (74-80)
1980 was the last year of the mechanical tachometer. In 1974, the MoCo started using Nippon Seiki (Japan) gauges.

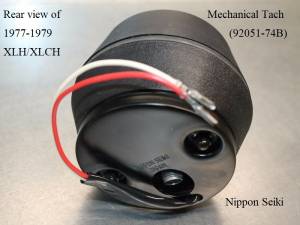

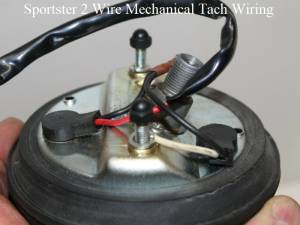

1974-1980 Sportster mechanical tachometers have 2 wire sheaths:
Red (illumination), White (high beam indicator with blue lens), both in the same sheath, and a separate Black (ground to bracket or backpate).
There were 6 different part numbers for 74-80 Sportster tach heads.
All of them are 2:1 ratio tachs using the same cable assembly and drive unit on the cam cover.
So all 1974-1980 XL 2:1 Nippon Seiki tachs will interchange with the consideration that you may have to change the end connectors.
All have the high beam indicator on the face as well.
The main difference in the versions seems to be the lettering, position of the lettering and the connectors on the wiring leads.
The 74 tach attached to a fork terminal plate with ring connectors where the 75-80 tach version attached to a splice block terminal inside the headlight bucket.

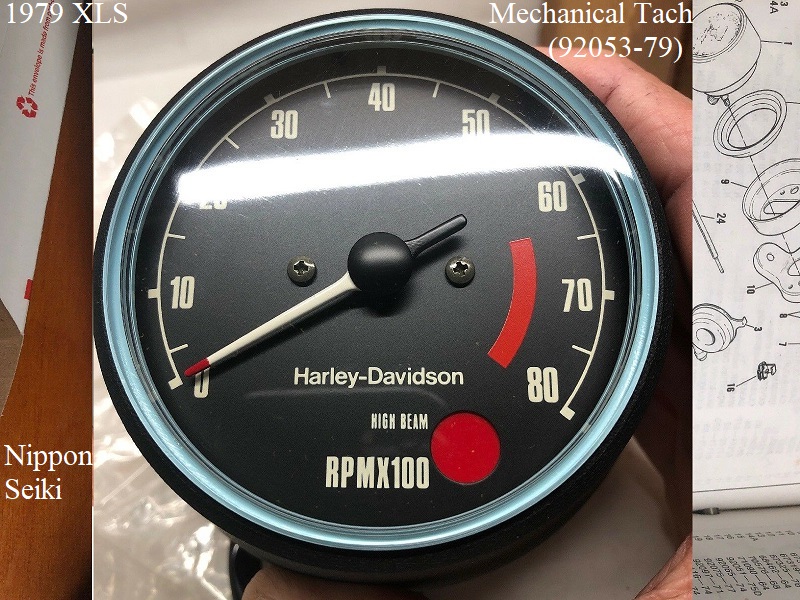

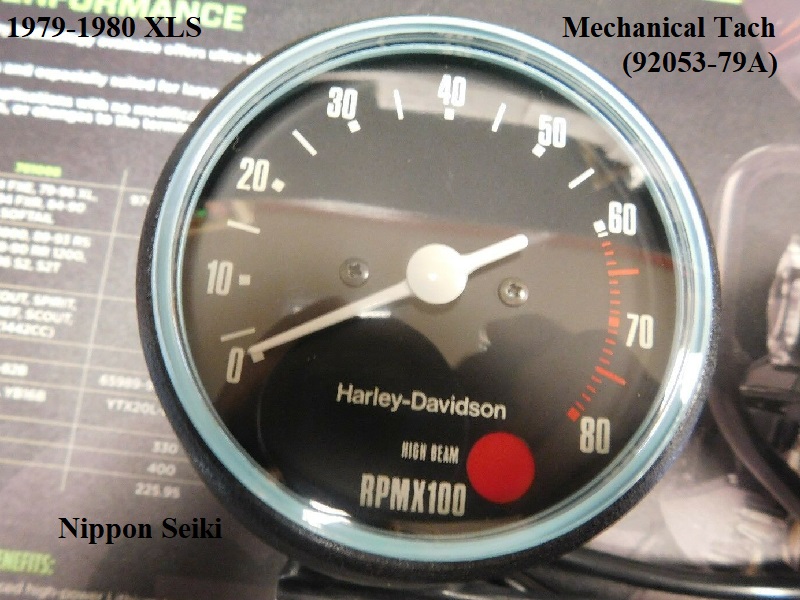

74-79 XLH/XLCH versions had no redline markings whereas the 79 XLS and all 80 versions did have a redline range on the face.
Tachometer (81-85)

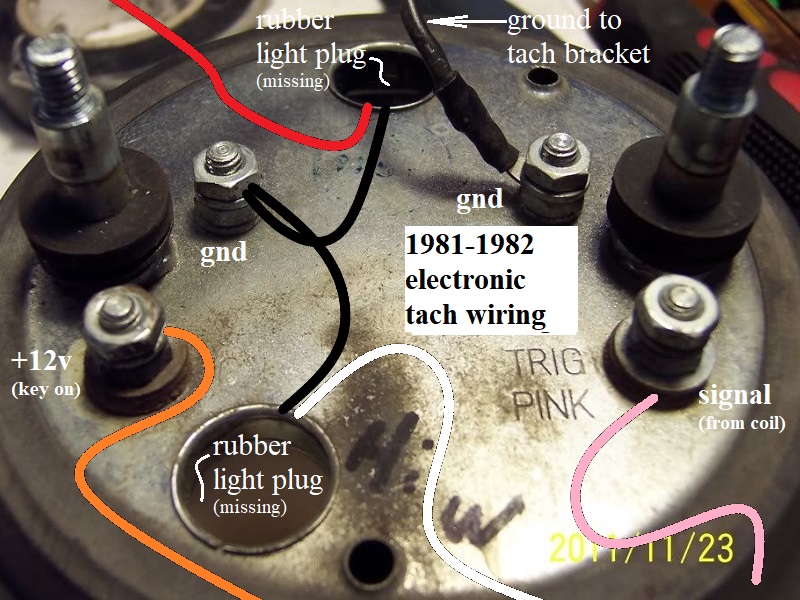

1981-1983 XL, 1981-1982 XLS tach (92051-81A) is the original electronic version starting in 1981.
It has a 4 wire sheath: Pink (signal), Red (illumination), Orange (+12v power from ACC breaker), White (high beam indicator) and separate Black (ground to bracket).
The 81 wiring diagram in the FSM DOES NOT SHOW the tach wire leaving the block connector in the headlight to the coil.
But it has to get signal from the coil to the pink wire in order to operate. The 82 drawing does show the correct routing for the pink wire.
The 83 parts catalog shows a 4 wire tach but the FSM drawings show 83 models as having a 2 wire tach with a ground.
So wire accordingly to the drawing that matches the tach for these years.
