1968 Sportster

Model Production Numbers

  • XLH 1,975
  • XLCH 4,900

Colors 1)

  • Black with Black Wrinkle tank panels and White Strip.
  • On black bikes, the tank panel was most likely plain black, not wrinkle.
  • Jet Fire Orange with Black Wrinkle tank panels and White Strip.
    • Options:
    • Sparkling Burgundy with Black Wrinkle tank panels and White Strip.
    • Sparkling Blue with Black Wrinkle tank panels and White Strip.

Vehicle Identification

Frame Numbers

There was no frame identification for purpose of ownership on 1957-1969 model Sportsters.
However, there were stampings on the different parts of the frame combined with certain features that can be used to date the frame.
Click Here to view Ironhead Frame Identification in the Sportsterpedia.

Engine Serial Numbers

The only numbers for the purpose of identification were on the engine case.

  • The engine serial number is stamped on the left side of the engine case between the two cylinders.
    The first 5 or 6 digits represent the year and model 2)
    From 1962-1969, models with 4 digit production (serial) numbers have an even-numbered first digit for even years and odd numbered first digit for odd years.

Click Here for more specific information on serial numbers and VINs in the Sportsterpedia (including the 1962-1969 Even/Odd Rule).

Engine Serial Number for 1968 Sportsters
Model Year
(first 2 digits)
Model
(next few digits)
(up to 4)
Sequential
Serial#
(remaining digits)
68XLH
XLCH
(example)
12345
Example: (68XLCH 12345) indicates a 1968 XLCH model and is stamped on the Left Engine Case Between the Cylinders 3)
Example Serial Number on Engine Reads: 68XLCH12345
68 XLCH 12345

Related Manuals and Documentation

See the Navigation menu on the upper left of this page.
From there you can go to the main Ironhead section menu, the Reference section for general and in-depth procedures, and the Misc Resources for documentation.

Below are some suggestions for manuals for your ride.
You should have, at minimum, a Factory Service Manual (FSM) and a Factory Parts Catalog for your year model.

The FSM will have the most accurate information, procedures and specs.
Clymer and Haynes make service manuals also for Sportsters but some of the information is in error to the factory FSMs.
And some of the information in the aftermarket manuals is vague in information or procedures but they may have more pictures.
So it is generally said you can get use from both an aftermarket manual and the factory service manuals but get the factory manual first.

The Parts Catalog has part numbers of course but it also has exploded parts views.
However, IT IS NOT INTENDED TO BE AN ASSEMBLY MANUAL.
And some of the exploded views are confusing or not related to each other on the same pages.
But, all in all, the exploded views do help finding what goes where.
Most of the fasteners listed in the relevant parts catalog individual pages have thread sizes and lengths also in case you need those.
Click Here to see the Factory Parts Catalog page in the Sportsterpedia for parts catalog uses and a full list of parts catalog numbers from 1957 to present.
Some often acquire several year model parts catalogs and that page will help you decide which ones are right for you.
Click Here for the HD List of Ironhead Sportster Hardware P/N & Descriptions page in the Sportsterpedia.

Suggested Manuals:

  • Factory Service Manual (FSM):
    • Original: 1959-1968 Sportster Service Manual (99484-68) in a loose leaf binder
    • Latest Edition: 1959-1969 Sportster Service Manual (99484-69) in book bound form
  • Factory Parts Catalogs:
    Note: ALL 1957-1978 PARTS CATALOGS LIST PARTS FOR PREVIOUS YEARS.
    Below is a simple list of original and “latest edition parts catalogs.
    The in-between year books may show different part numbers for the same year model bike.
    Click Here to reference the chart of “Sportster and K Model Parts Catalogs by Year and Date of Publication” in the Sportsterpedia
    (complete list of other parts catalogs and supplement catalogs that pertain to each year model)
    • Original: 1967-1968 Sportster/KH Model Parts Catalog Supplement (99451-68)
      • Issued July, 1967.
      • Updates the 1957-1967 full parts catalog for Sportster / KH Models (99451-67).
      • Lists closest to original parts available for L1967-1968 models.
        • Use With: 1957-1967 Sportster/KH Model Parts Catalog (99451-67)
          Issued September, 1966.
          Full parts catalog and lists parts available in 1967 for 1954-1967 models.
    • Latest Edition: 1954-1978 Sportster XLH/XLCH-1000 Parts Catalog (99451-78B)
      • Issued in 1989.
      • Full catalog and lists parts available in 1989 for 1954-1978 models.
      • Includes some parts that were not available in the -78A catalog.

Pics of Manual Covers.
Below are pics of used manual covers (original and latest editions) related to 1968 model Sportsters.
See the full list of pertinent catalogs in the link above.
Click on any pic below to enlarge:

1959-1968 FSM (99484-68) 4)
loose leaf outside and inside covers (original)
1959-1969 FSM (99484-69)
(latest)
1957-1967
Parts Catalog (99451-67)
1967-1968 Parts
Catalog Supplement (99451-68)
1954-1978
Parts Catalog (99451-78B)

The Ironhead Multi-Year Parts Catalog Curse

Below is a summary of an article on the Sportsterpedia Parts Catalogs page regarding parts book errors.
You can also read the full article from this link: The Ironhead Multi-Year Parts Catalog Curse.
Due to all of the errors and non corrected editions, it's always a good idea to acquire several year parts catalogs surrounding your year model.
Which year catalogs you'll need will depend on many factors but the main Parts Catalog page in the Sportsterpedia will help you decide which ones you need.
Click Here to see the Parts Catalog page. A full chart of all the parts catalogs made for Ironheads is at the bottom of the page.

  • Not all multi-year catalogs will list factory installed parts on your bike.
  • You may need several year catalogs to determine factory installed parts for your year model.
  • Some parts first appeared or only appeared in Parts Supplements, Service Bulletins or other literature
  • Later catalogs may show parts for older models that were never factory installed on them.
  • Some catalogs have missing parts and/or missing models in some parts listings.
  • Some illustrations do not have a part number listed.
  • Drawings may or may not look like your part number.
  • Some exploded parts diagrams show the assembly in the wrong order or missing pieces.
  • There may be misleading information about parts that fit your year model.
  • Fastener lengths and thread pitch may change depending on catalog used.
  • The MoCo knew about and tried to correct at least some of the parts catalog mistakes.

Misc Resources in the Sportsterpedia

There are links to many factory service bulletins, parts and accessory bulletins plus information on part numbers and casting numbers in the Sportsterpedia.
Click Here for the Misc Resource section for more information.

Illustrations

The following illustrations are displayed for historic and period specific parts identification only. Refer to the original OEM documents for additional information. 5)
Click on any illustration below to enlarge.

Specifications

Click Here for the main technical menu in the Sportsterpedia.
Also see the “Misc Resources” section on the bottom of that page for technical docs and information.

Model Designations

  • XLH, XLCH

Dimensions

  • Wheelbase: 6)
    • XLH, 56.5 in / 143.51 cm
    • XLCH, 58-1/2 in / 148.59 cm
  • Overall Length:
    • XLH, 89 in / 226.06 cm
    • XLCH, 83.25 in / 211.45 cm
  • Overall Width:
    • XLH, 34 in / 86.36 cm
    • XLCH, 34 in / 86.36 cm
  • Overall Height:
    • XLH, 40-1/2 in / 103 cm
    • XLCH, 42 in / 106.7 cm
  • Road Clearance:
    • XLH, 5-1/2 in to 6-3/4 in / 13.97 cm to 17.14 cm 7) (67 and 69 FSMs differ)
    • XLCH, 6-1/2 in to 6-7/8 in / 16.51 cm to 17.46 cm

Engine

  • Engine type: 4 cycle Overhead Valves, 45 degree V2 8)
  • Hemi-spherical style heads
  • Displacement: 53.9 ci / 883 cc (900 cc advertised)
  • Compression Ratio: 9:1
  • Bore: 3 in / 76.2 mm
  • Stroke: 3.8125 in / 96.8 mm
  • Horsepower: 55 @ 6,300rpm 9)
  • Taxable Horsepower: 7.2
  • Torque: 52 ft-lb @ 3800 RPM
  • Weight:
    • XLCH - 188lbs.
    • XLH - 204 lbs.
  • Engine serial number stamped on left side case between the two cylinders.
    Click Here for more information on serial numbers and VINs in the Sportsterpedia.
  • 4 Cams
  • Gear driven type oil pump.
    Oil pump pressure (gauge mounted in place of oil pressure switch):
    • Idle, with spark retarded (Min: 3-7 psi)
    • Normal riding conditions: 10-14 psi (6 psi at 20 mph)
  • XLH Ignition: Battery Ignition System (circuit breaker/points/timer/distributor)
    • Point Gap: .020”
  • XLCH Ignition: Magneto Ignition System
    • Point Gap: .015“
  • Dwell: 90° at 1000 RPM
  • Ignition Timing
    • Advanced - XLH, XLCH: 45° (11/16”) BTDC
    • Retarded - XLH: 15° (5/64“) BTDC
  • Spark Plugs
    • #4 for everyday use.
    • #5 for hard service.
      • Gap
        • XLH: .025”-.030“
        • XLCH: .020”
  • Fuel System: Tillotson HD carburetor.
  • Starter

Capacities

  • Fuel Capacity: 10)
    • XLH 4 gal / 15.14 l
    • XLCH 2.2 gal / 8.328 l
  • Oil Capacity: 3 qts. / 2.83 l
  • Transmission Capacity: 1.5 pints / .71 l

Clutch

  • Multi-Disc dry clutch-pack with alternate steel and fiber friction plates.11)

Drivetrain

  • Constant Mesh - right side foot shift 12)
  • Speeds - 4 Forward
  • Number of Sprocket Teeth (XLH / XLCH):
    • Engine: 34
    • Clutch: 59
    • Transmission: 20
    • Rear Wheel: 51
  • Standard Gear Ratios (XLH / XLCH)
    • 1st: 11.16:1
    • 2nd: 8.08:1
    • 3rd: 6.11:1
    • 4th: 4.42:1

Tires

Tire pressure (based on a rider weighing app. 150 lbs or more).
For each 50 lbs of overload, increase rear tire pressure by 2 lbs, front by 1 lb (but not exceeding manuf max tire pressure). 13)

  • XLH / XLCH:
    • Front: 3.25 / 3.50 x 19 (tire Pressure: 16 psi / 1.10 bar) 14)
    • Rear: 4.0 x 18 (tire pressure: 20 psi / 1.37 bar) 15)

Models

XLH 883

What is the Current KBB Value? 16)

XLCH 883

What is the Current KBB Value? 17)

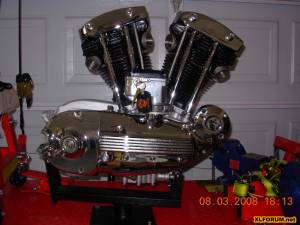

Engine
